Description

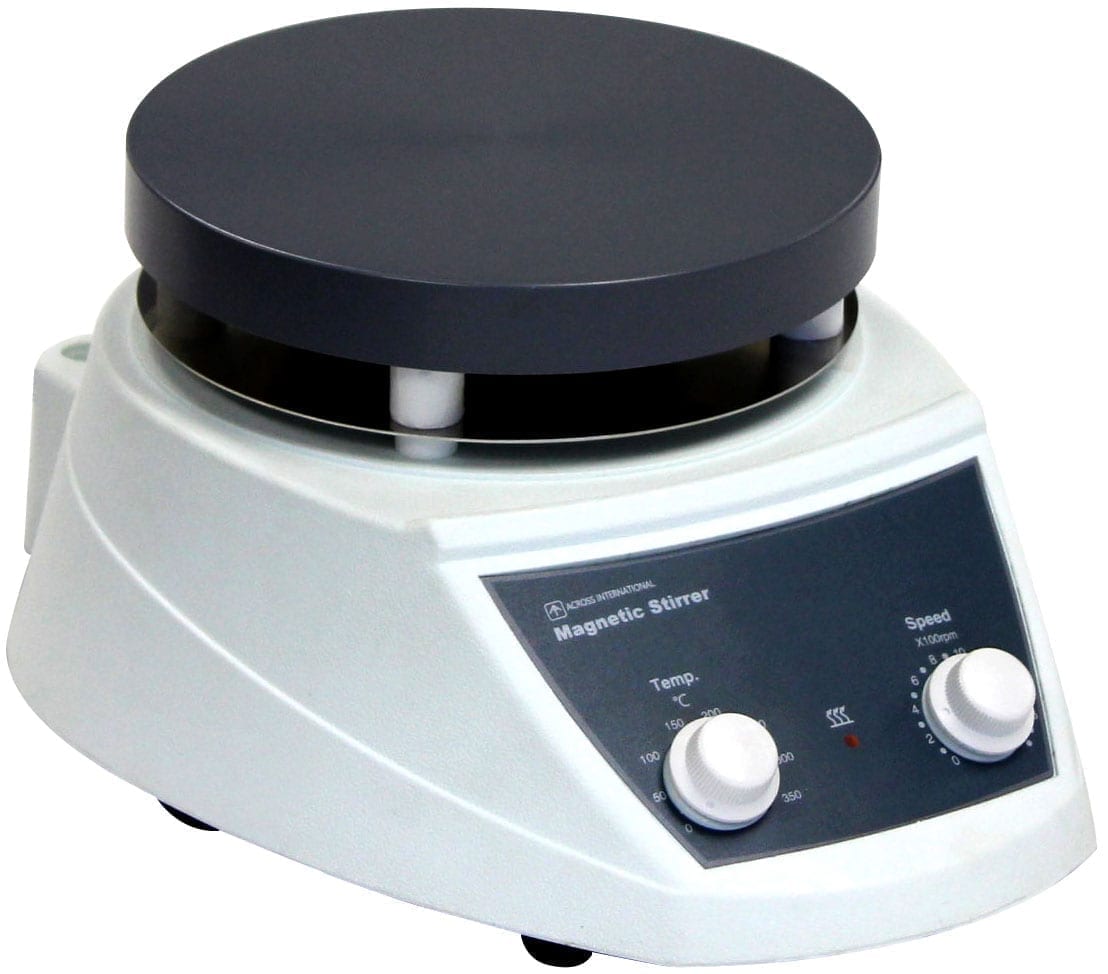

Ai HP50 heated magnetic stirrer features
- Very compact and simple to operate
- Heating of material greatly improves mixing speed and result
- Heat and corrosion resistant industrial plastic housing for durability
- Teflon coated aluminum heating plate for great heat distribution and corrosion resistance
- Specially designed housing prevents spill from damaging the electronic components inside
- Secondary heat insulation plate prevents heat loss and eliminates heat damage to electronic components underneath
- Adjustable temperature and rotation speed
HP-50A heated magnetic stirrer specifications
Electrical requirements | 110v 60Hz single phase, 350 watts |
Temperature range | Ambient to 350°C |
Rotation speed | Min. 50 rpm, max. 1500 rpm |
Maximum stirring volume | 0.8 gallon (3 liters) |
Heating plate | Diameter: 6 inches Material: Teflon coated aluminum |
Stir bar | a) 1 x 0.3″ b) 1.35 x 0.3″ |
Unit dimensions | 8 x 10 x 4 1/2″ (WxDxH) |
Shipping dimensions | 13 1/2 x 11 x 9″ (WxDxH) |
Unit weight | 4 Lb |
Shipping weight | 5 Lb |
Standard package
Part description | Quantity |
Part image |
HP-50A heated magnetic stirrer | 1 pc | |
Stir bar | 2 pcs | |
User’s manual | 1 pc |
