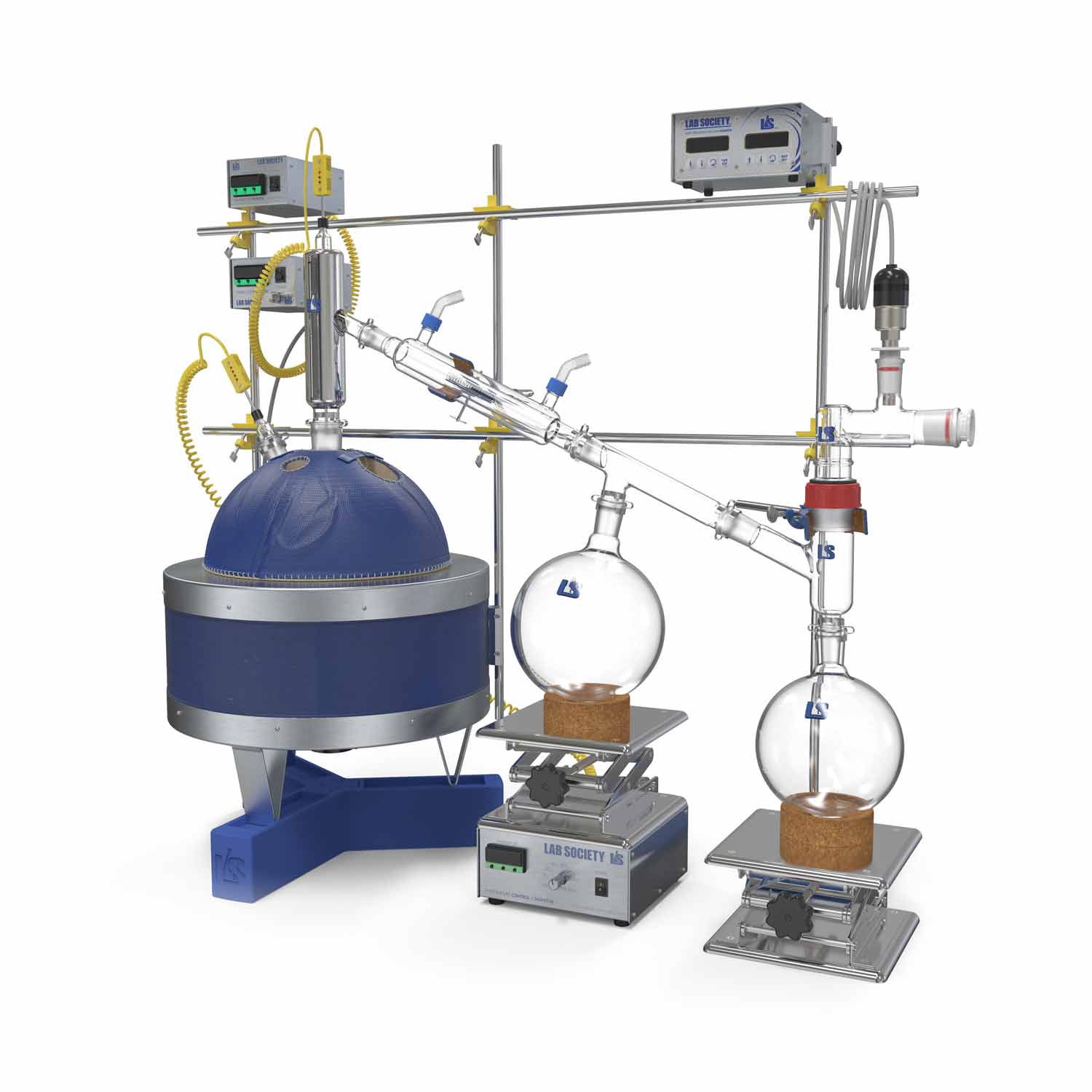

5L G3 Short Path Distillation Kit

Call for Pricing

The G3 Series Short Path Distillation Kit series is the most comprehensive, innovative, and efficient short path kit we have ever released.
All G3/G3X/G3X-R Short Path kits are certified and peer-reviewed to NRTL standards.
As an industry leader in quality short path systems, we have been at the forefront of this progressive technology and have worked to design and build a best-in-class system that is easy to integrate into any existing laboratory or operation.

SKU: 4201213 Category:

Description

G3/G3X Specs:
5L
12L
20L
20L G3X-R

Batch Capacity:
2500mL (approx. 2500g dewaxed oil)
6000mL (approx. 6000g dewaxed oil)
10,000mL (approx. 10,000 grams dewaxed oil)
10,000mL (approx. 10,000g dewaxed oil)

Optimum Capacity:
900 – 1500mL
3000 – 4000mL
7,000 – 9,000mL
7,000 – 9,000mL

Absolute Max. Capacity:
3000mL
8000mL
12,0000mL
12,000mL (approx. 12,000g dewaxed oil)

Main Body Fraction Flow Rate:
400 – 800 grams/hour
1000 – 2000 grams/hour
2000 – 4000 grams/hour
2,000 – 4,500 grams/hour

Batch Duration:
4 – 8 Hours
(estimated)
4 – 10 Hours
(estimated)
4 – 10 Hours
(estimated)
4-10 Hours
(estimated – batch durations are
dependent upon primary extraction
method, pre-processing methodology
and material composition.)

Benchtop Size:
30” x 30” x 30” (not including pump/trap/circulator)
43” x 27” x 40” (not including pump/trap/circulator)
45” x 27” x 42” (not including pump/trap/circulator)
45” x 27” x 42” (not including pump/trap/circulator)

Distillation Head:
PDH-2S (silvered)
PDH-3 (silvered)
PDH-6 (silvered)
DH-150HE

Fully peer-reviewed system with certifications on electrical parts
Single head, full-bore configuration for each system – promotes molecular flow, reduces operating temperature, and gives users increased ease-of-use compared to multi-head configurations
Custom-cut ground glass drip tips – eliminate grease contamination and allow distillate to drip directly into the receiving flask
All collection joints have been increased to 29/42 (29 mm) – to reduce potential clogging
Condenser length has been extended for increased surface area and to accommodate larger collection flasks
Improved heating mantle system with digital temperature and stir control
Dual Temperature Monitoring allows the user to monitor temperature from two separate areas on the system such as the distillation head and cold trap, which improves thermal efficiency throughout the system, and allows for more producibility between runs
Integrated supports built into each mantle – to make setup easy
Full lattice rack included with each kit
Reinforced mantle base – increases stability, dampens vibration, and provides better alignment for the whole system
Improved glassware connections – utilizing ground glass joint to KF25 adapters for maximum vacuum capability and leak reduction
Pinched thermocouple adapters for easy removal
1 year EliteLab® subscription included with each kit
Angled vacuum take-off valves – for both the swingarm and secondary collection port which allows for isolation from the rest of the system as well as unlimited fraction collection
Secondary, liquid-cooled “cold finger” condenser – for greater condensation efficiency
Jacketless primary condenser – for increased flow; keeps volatiles in vapor state for collection away from the main body fraction
All improvements and features from G3 series
150mm Reactor Flange distillation head (LS-DH-150HE) with 100mm distillation column
Distillation head inserts (2):

Evacuated, Vigreux-indented insert
Temperature-controllable fluid-filled finger insert

Evacuated, Vigreux-indented insert
Temperature-controllable fluid-filled finger insert
Evacuated, Vigreux-indented insert
Temperature-controllable fluid-filled finger insert
Fiberglass Insulator to retain radiant heat in space between silvered jacket and heating mantle system
Secondary Cold Finger Condenser (LS-A90-VC45) for use with jacketless condenser, hot condenser, or high-efficiency fraction collection within the system
Angled Isolation Valves:

Inline distribution adapter (swing arm/primary collection) valve with vacuum release for unlimited fraction collection
Distribution receiver (secondary collection) valve with vacuum release for unlimited fraction collection

Inline distribution adapter (swing arm/primary collection) valve with vacuum release for unlimited fraction collection
Distribution receiver (secondary collection) valve with vacuum release for unlimited fraction collection
Inline distribution adapter (swing arm/primary collection) valve with vacuum release for unlimited fraction collection
Distribution receiver (secondary collection) valve with vacuum release for unlimited fraction collection
Modular Condenser Kit (MCK)
Hot Condenser Mantle Kit (HCK)
Complete System:

Peer-Reviewed, GMP Compliant

Peer-Reviewed, GMP Compliant
Heating Mantles:

CSA
CAN/CSA C284101, C22.2 No. 88

CSA
CAN/CSA C284101, C22.2 No. 88
Peer-Reviewed, GMP Compliant
CSA
CAN/CSA C284101, C22.2 No. 88
Temperature Controller:

NRTL, QPS, CE, Constructed with 100% UL and CSA listed parts.
UL 61010-1; 61010-2-201
CAN/CSA 61010-1, C22.2

NRTL, QPS, CE, Constructed with 100% UL and CSA listed parts.
UL 61010-1; 61010-2-201
CAN/CSA 61010-1, C22.2
NRTL, QPS, CE, Constructed with 100% UL and CSA listed parts.
UL 61010-1; 61010-2-201
CAN/CSA 61010-1, C22.2
Temperature Monitor:

CE, Constructed with 100% UL and CSA listed parts.

CE, Constructed with 100% UL and CSA listed parts.
Stir Controller:

CE, Constructed with 100% UL and CSA listed parts.

CE, Constructed with 100% UL and CSA listed parts.
Vacuum Monitor:

RoHS / CE / NRTL

RoHS / CE / NRTL
Glassware:

Meets ASTM specification E438, type 1, class A, Kimble Kimax or Schott Duran Glass

Meets ASTM specification E438, type 1, class A, Kimble Kimax or Schott Duran Glass
CE, Constructed with 100% UL and CSA listed parts.
CE, Constructed with 100% UL and CSA listed parts.
RoHS / CE / NRTL
Meets ASTM specification E438, type 1, class A, Kimble Kimax or Schott Duran Glass
Documentation & SOPs for GMP integration
Electronic controllers & monitors
Glassware, supports, & clamps
Technical Support & Warranties
LS Evacuated, Structured Head Insert
LS Cold Finger Head Insert
LS Fiberglass Insulator for Distillation Head
LS Jacketless Condenser
LS 90° Adapter with Vertical Condenser
LS Swing Arm with Angled Take-Off Valve
LS Distribution Adapter with Angled
Take-Off Valve
TCM (Temperature Controller/Monitor)
DTM-1 (Digital Temperature Monitor)
PVM-2 (Precision Vacuum Monitor – Dual)
DSC-1 (Digital Stir Controller)

G3/G3X Specs:
5L
12L
20L
20L G3X-R

Batch Capacity:
2500mL (approx. 2500g dewaxed oil)
6000mL (approx. 6000g dewaxed oil)
10,000mL (approx. 10,000 grams dewaxed oil)
10,000mL (approx. 10,000g dewaxed oil)

Optimum Capacity:
900 – 1500mL
3000 – 4000mL
7,000 – 9,000mL
7,000 – 9,000mL

Absolute Max. Capacity:
3000mL
8000mL
12,0000mL
12,000mL (approx. 12,000g dewaxed oil)

Main Body Fraction Flow Rate:
400 – 800 grams/hour
1000 – 2000 grams/hour
2000 – 4000 grams/hour
2,000 – 4,500 grams/hour

Batch Duration:
4 – 8 Hours
(estimated)
4 – 10 Hours
(estimated)
4 – 10 Hours
(estimated)
4-10 Hours
(estimated – batch durations are
dependent upon primary extraction
method, pre-processing methodology
and material composition.)

Benchtop Size:
30” x 30” x 30” (not including pump/trap/circulator)
43” x 27” x 40” (not including pump/trap/circulator)
45” x 27” x 42” (not including pump/trap/circulator)
45” x 27” x 42” (not including pump/trap/circulator)

Distillation Head:
PDH-2S (silvered)
PDH-3 (silvered)
PDH-6 (silvered)
DH-150HE
