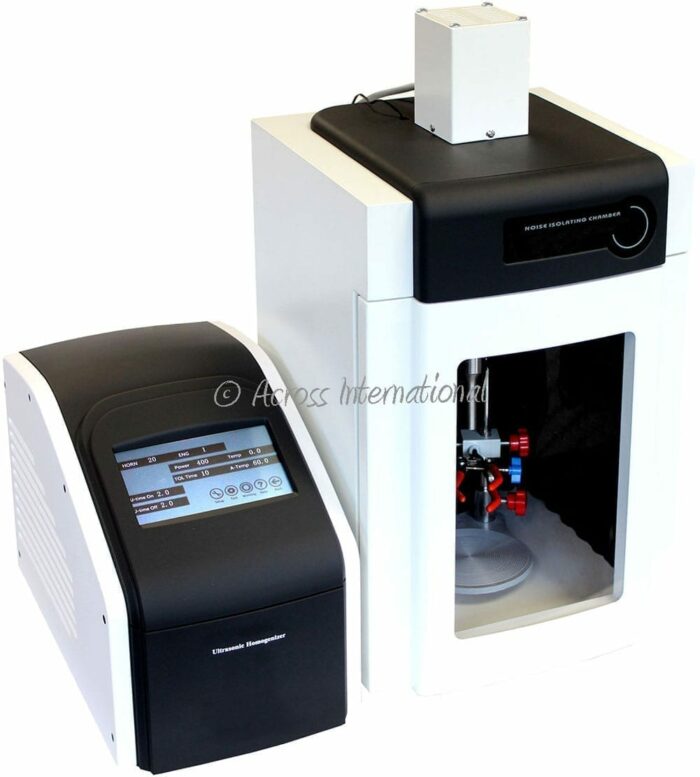

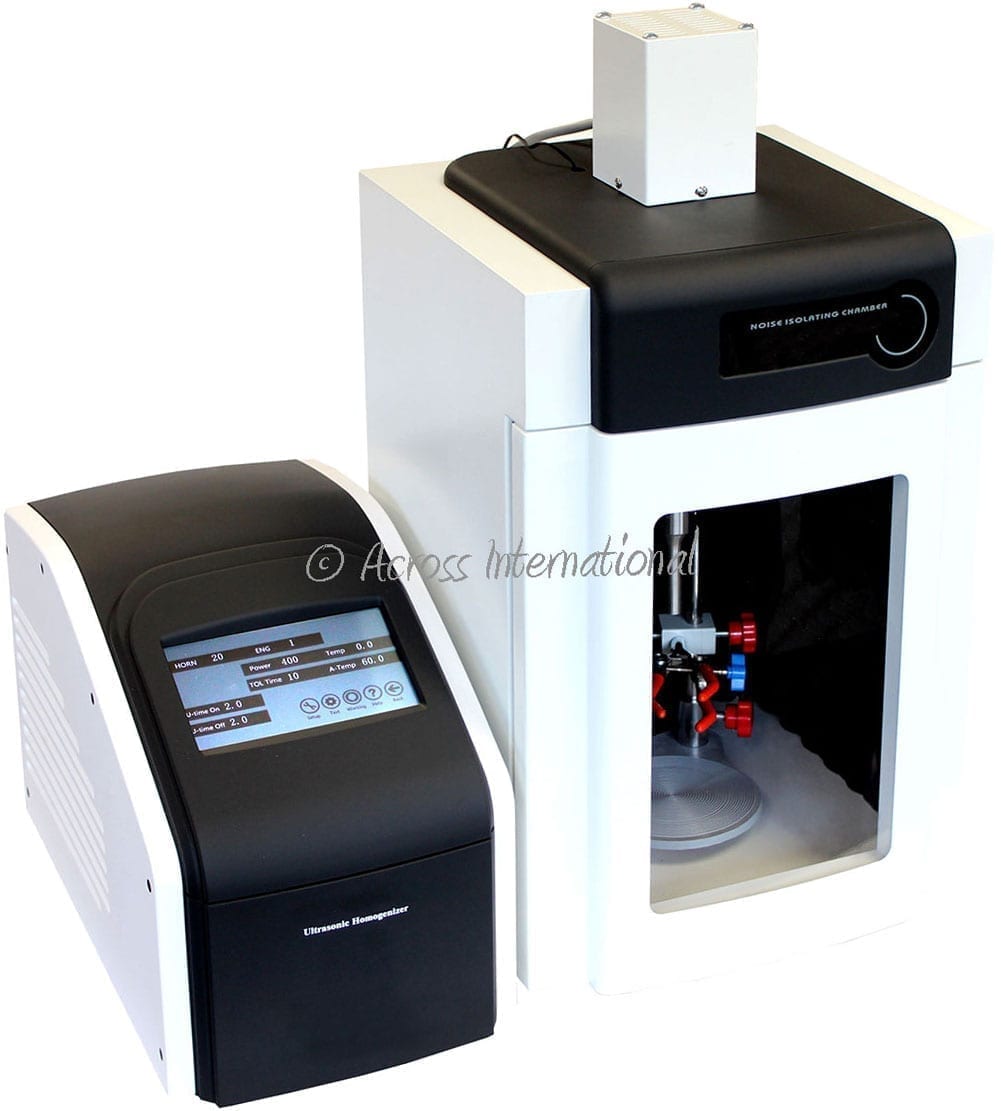

Ai 1-Quart Capacity Ultrasonic Homogenizer w/ Sound Enclosure

3,987.40$

Ultrasonic homogenizers, the modern version of “mortar and pestle”, they can disrupt tissues and cells through cavitation and ultrasonic waves.  Basically, an ultrasonic homogenizer has a tip which very rapidly vibrates, causing bubbles in the surrounding solution to rapidly form and collapse.  This creates shear and shock waves which tear apart cells and particles.

Category:

Description

Ultrasonic Homogenizers are recommended for homogenization and lysis of laboratory samples that do not require traditional grinding or rotor-stator cutting techniques for processing. Small and large ultrasonic probes are used in a variety of sample volumes to be processed. A solid probe allows for less chance of sample loss and cross-contamination between samples.

Sonication is the act of applying sound energy to agitate particles in a sample, for various purposes. Ultrasonic frequencies (around 20 kHz) are usually used, leading to the process also being known as ultrasonication or ultra-sonication. In the laboratory, it is usually applied using an ultrasonic bath or an ultrasonic probe, colloquially known as a sonifier.

Sonication can be used for the production of nanoparticles, such as nanoemulsions, nanocrystals, liposomes and wax emulsions, as well as for wastewater purification, degassing, extraction of plant oil, extraction of anthocyanins and antioxidants, production of biofuels, crude oil desulphurization, cell disruption, polymer and epoxy processing, adhesive thinning, and many other processes. Sonication is also commonly used in nanotechnology for evenly dispersing nanoparticles in liquids.

The new 2016 Ai U10 ultrasonic homogenizer

Features

  • 7″ color touch screen controller and matte black finish
  • Built-in temperature probe
  • Ultrasonic probe with corrosion-resistant titanium alloy tip (PH value 3 to 10)
  • Mixing, blending, emulsifying, and homogenizing solutions
  • Use during extraction to disintegrate cells and increase yield
  • Adjustable ultrasonic power and time
  • Frequency and sample temperature display
  • Sound enclosure reduces the high-powered sound waves, while clear door permits viewing of the sample while processing
  • A variety of optional easy-swap ultrasonic probes available
  • Compact and lightweight, plug and play, no assembly required
  • Comes with a 15mm OD ultrasonic probe

IMPORTANT! For maximum probe life, run probe in clean water for 3 minutes after each use.

Compatible ultrasonic probes: 15mm, 20mm and 25mm tip diameter



Specifications

 Model U10
 Electrical requirements 110V 60Hz 1-PH, 550 watts, 5A
 Ultrasonic output 450 to 1200 watts
 Frequency 19.5 to 20.5 KHz
 Capacity 1 quart / 1000 ml
 Controller Screen: 7″ TFT color touch screen
Working interval: 0.1 to 99.9 seconds
Resting interval: 0.1 to 99.9 seconds
Maximum timer: 1 to 999 minutes
 Ultrasonic probe included 15mm tip diameter made of Titanium alloy (tip should immerge into solution
at 45% of fluid level, and at least 3/8 inch deep.)
 Duty cycle Recommend 5 to 10 minutes rest after 30 to 60 minutes continuous operation
 Dimensions Unit
Controller: 8.7 x 15 x 11.5″ (WxDxH)
Sound enclosure: 11.5 x 12 x 24″ (WxDxH)
Shipping
Box #1: Controller @ 20 x 13.5 x 19″
Box #2: Sound enclosure @ 15 x 15 x 21″
 Weight Unit
Controller: 20 lbs
sound enclosure with probe: 20 lbs
Shipping
Box #1: Controller @ 34 lbs
Box #2: Sound enclosure @ 18 lbs
 Safety Over-current protection
Over-temperature protection
Timer up alarm
 Compatiable ultrasonic probe
(For maximum probe life, run
probe in clean water for
3 minutes after each use)
 15mm tip diameter (comes standard with the unit):
Recommended output range: 80% to 90%
Recommended capacity: 100mL to 500 mL
Ultrasonic output: 200 to 950 watts
Vibration amplitude: 145 um
Sample viscosity: medium to high
 20mm tip diameter (optional)
Recommended output range: 100%
Recommended capacity: 200mL to 1000 mL
Ultrasonic output: 400 to 1200 watts
Vibration amplitude: 60 um
Sample viscosity: medium
 25mm tip diameter (optional)
Recommended output range: 100%
Recommended capacity: 250mL to 1200 mL
Ultrasonic output: 800 to 1800 watts
Vibration amplitude: 40 um
Sample viscosity: low
 Warranty One year for controllers and sound enclosures
Three months for ultrasonic probes



Additional information

Weight55 lbs
Dimensions35 × 15 × 21 in
