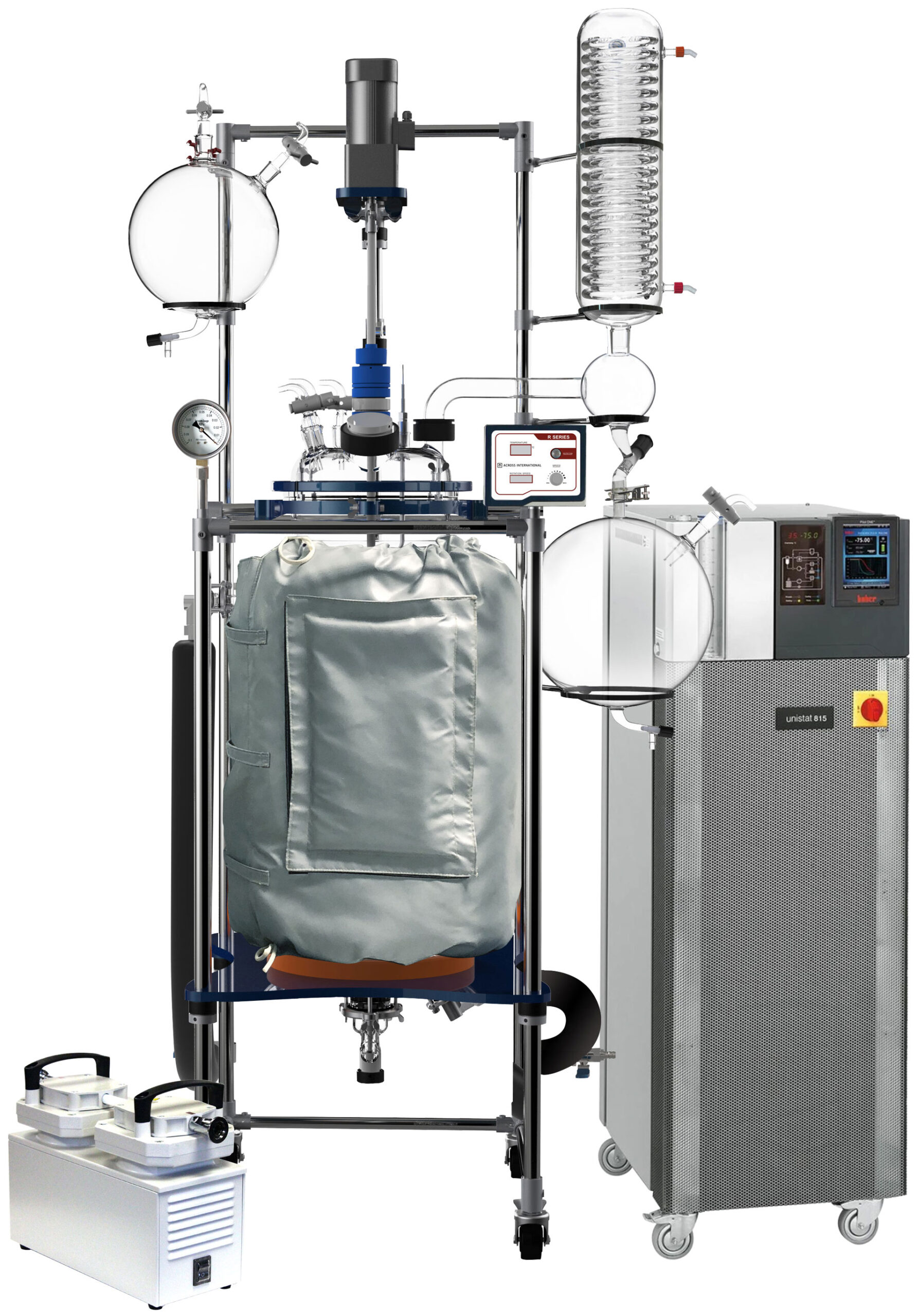

Ai 100L Jacketed Glass Reactor Winterization Package


Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

SKU: 4200890 Category: Tag:



 Electrical requirements
 110V 60Hz or 220V 50/60Hz, 1-Phase, 250W

 Reaction glass vessel capacity
 26 gallons (100L)

 Cooling/heating jacket capacity
 8 gallons (30L)

 Glass material
 High borosilicate glass 3.3

 Rotation controller
 Digital controller with variable frequency drive Rotation speed: 50 to 500 rpm

 Maximum jacket pressure
 4.4 psi or 0.03 MPa

 Drain valve
 Flush seal design with large opening and flat flange clamp

 Style: impeller Material: 304 stainless steel with PTFE liner

 Pressure equalizing

 Vacuum gauge

 Swivel caster

 Glass vessel temperature range
 -110°F to 400°F

 Vacuum level
 < 700 torrs  Vacuum sealing  Glass or PTFE  Drain port ground clearance  13.5 inches  Unit dimesions (WxDxH)  28 x 42 x 95"  Shipping dimensions  26 x 88 x 45"  Shipping weight  460 Lbs  Download  Product brochure  Compliance  ETL tested to UL and CSA standards
