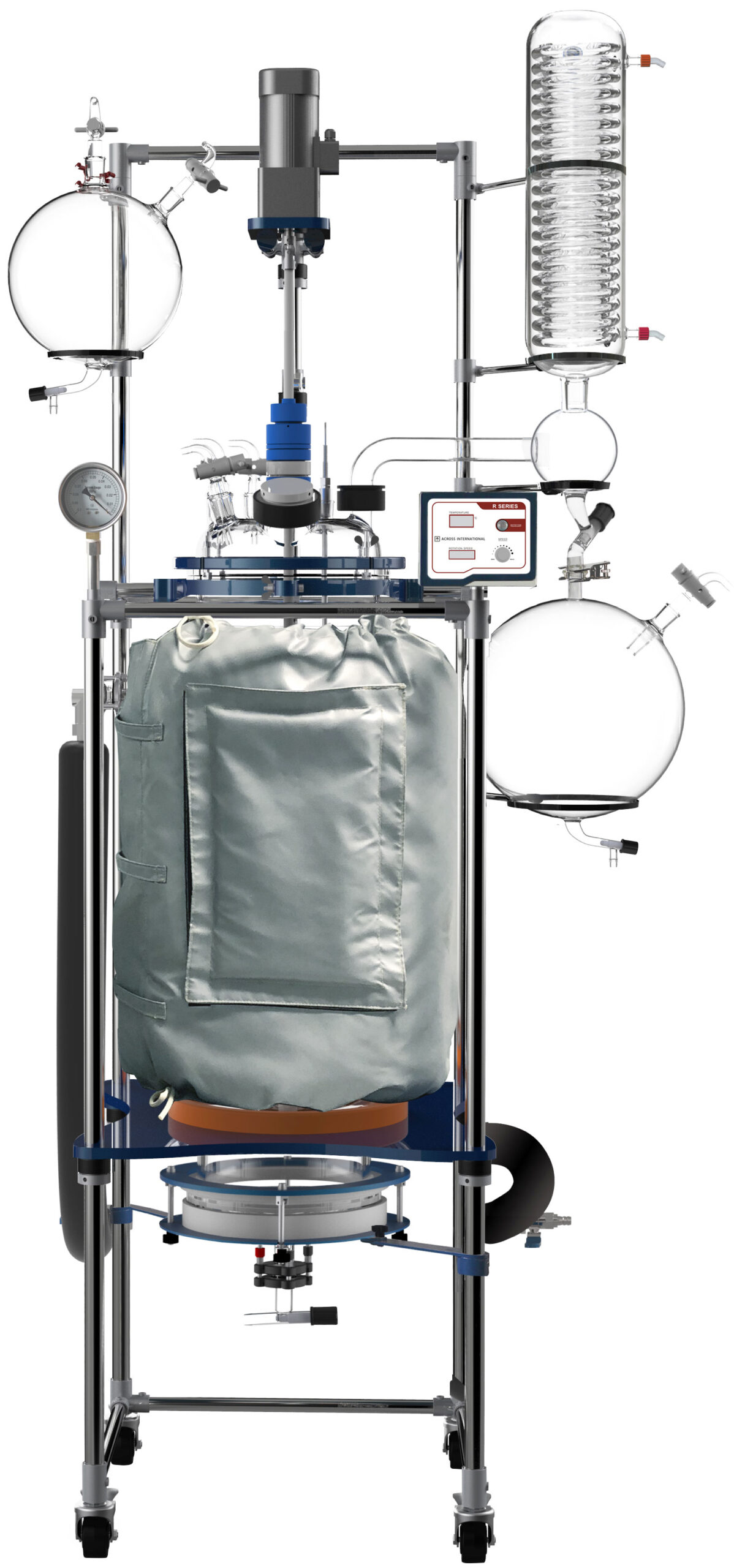

Ai 100L Single Jacketed Filter Glass Reactor

$27,095.85

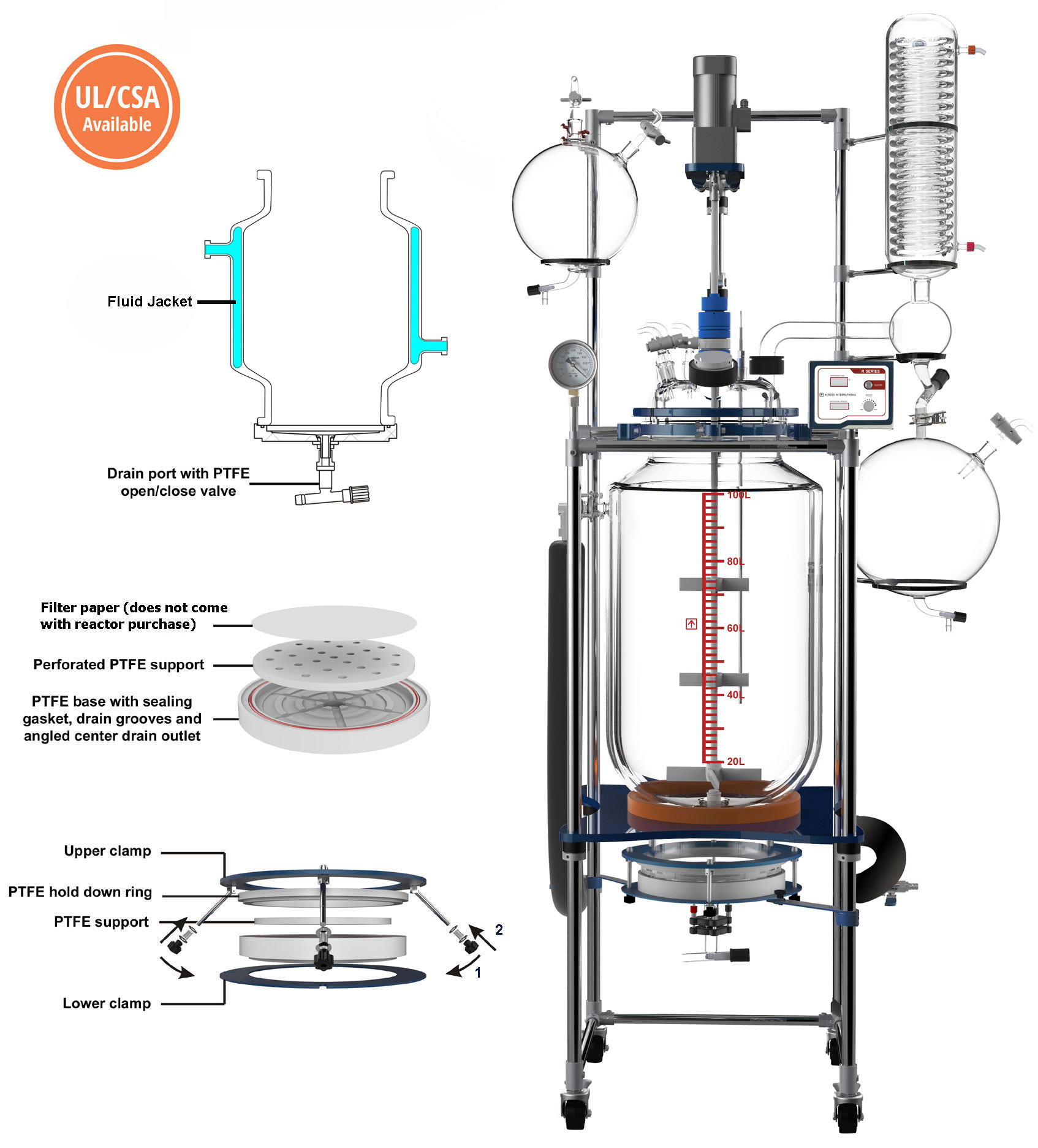

The Ai jacketed filter glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment, jacketed filter reactors  can be used for single or multi-step reactions and filtrations in the same vessel, production and process scale peptide synthesis. Filter base eliminates material transfers and significantly reduces material losses.

SKU: 4200882 Category: Tag:

Description

Model
R10
R20
R50
R100

Electrical requirements
110V 60Hz or 220V 50/60Hz, 1-Phase

Power
90W
140W
250W

Reaction glass vessel capacity
2.6 gallons (10L)
5.3 gallons (20L)
13 gallons (50L)
26 gallons (100L)

Cooling/heating jacket capacity
0.8 gallon (3L)
1.6 gallons (6L)
4.2 gallons (16L)
8 gallons (30L)

Glass material
High borosilicate glass 3.3

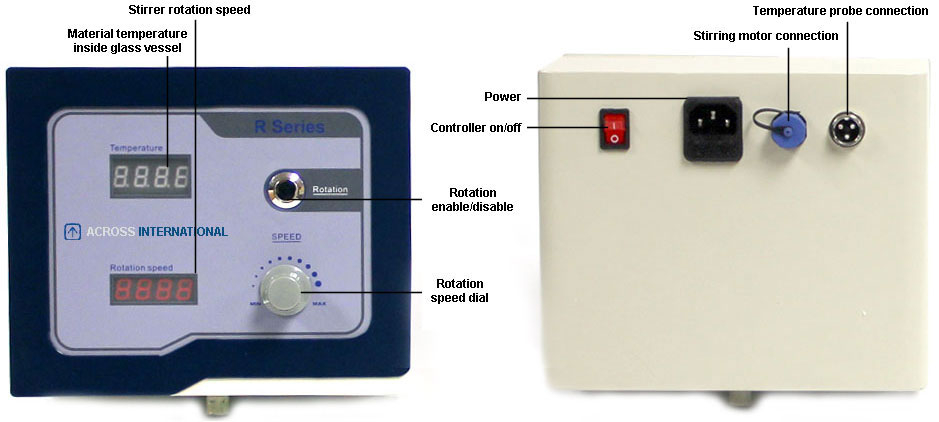

Rotation controller
Digital controller with variable frequency driveRotation speed: 50 to 500 rpm

Maximum jacket pressure
4.4 psi or 0.03 MPa

Drain valve
Flush seal design with large opening and flat flange clamp

Agitator
Style: impeller Material: 304 stainless steel with PTFE liner

Funnel
Pressure equalizing

Vacuum gauge
Mechanical

Swivel caster
Four

Glass vessel temperature range
-110°F to 400°F

Vacuum level
< 700 torrs

Vacuum sealing
Glass or PTFE

Drain port ground clearance
15 inches
13 inches
12.5 inches
13.5 inches

Unit dimesions (WxDxH)
18 x 26 x 78″
20 x 27 x 80″
26 x 33 x 85″
28 x 42 x 95″

Shipping dimensions
24 x 67 x 26″
24 x 75 x 31″
25 x 83 x 42″
26 x 88 x 45″

Shipping weight
240 Lbs
262 Lbs
330 Lbs
460 Lbs

Download
Product brochure

Compliance

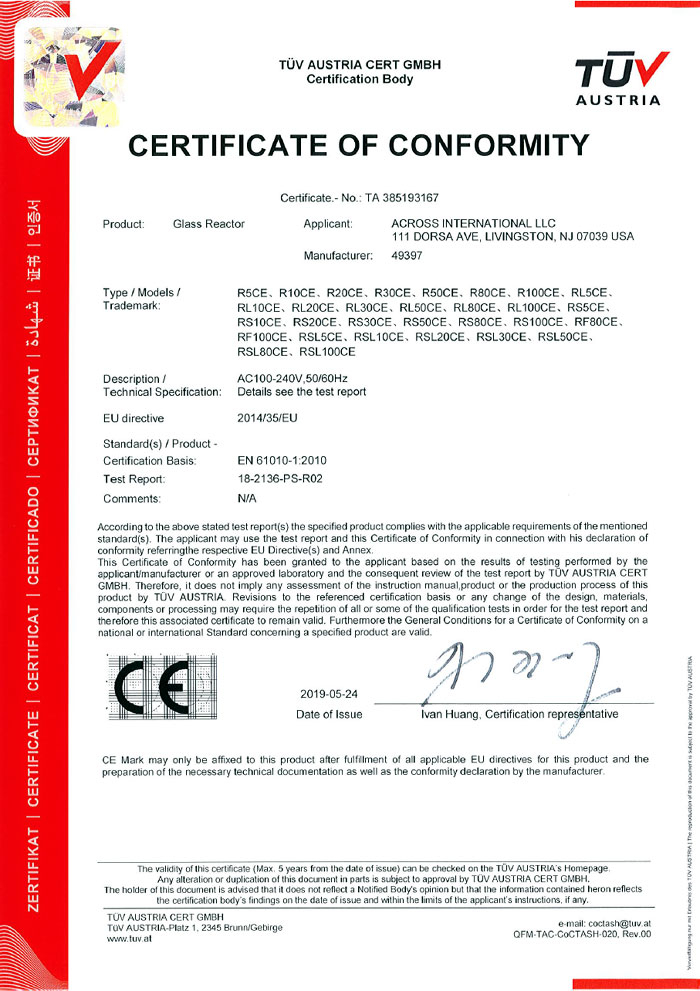

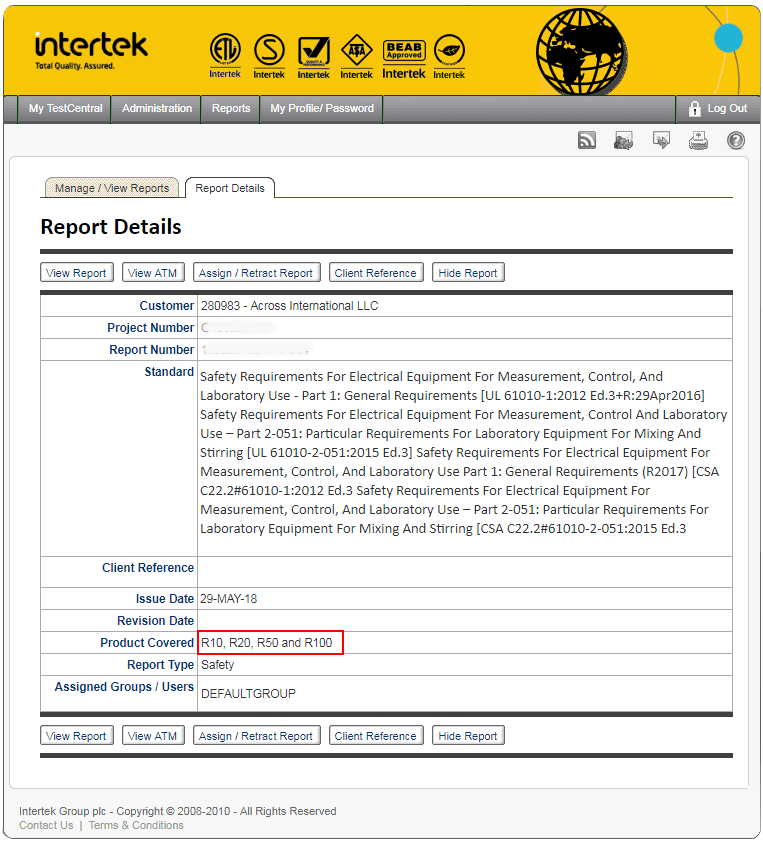

ETL tested to UL and CSA standards, CE (optional)
