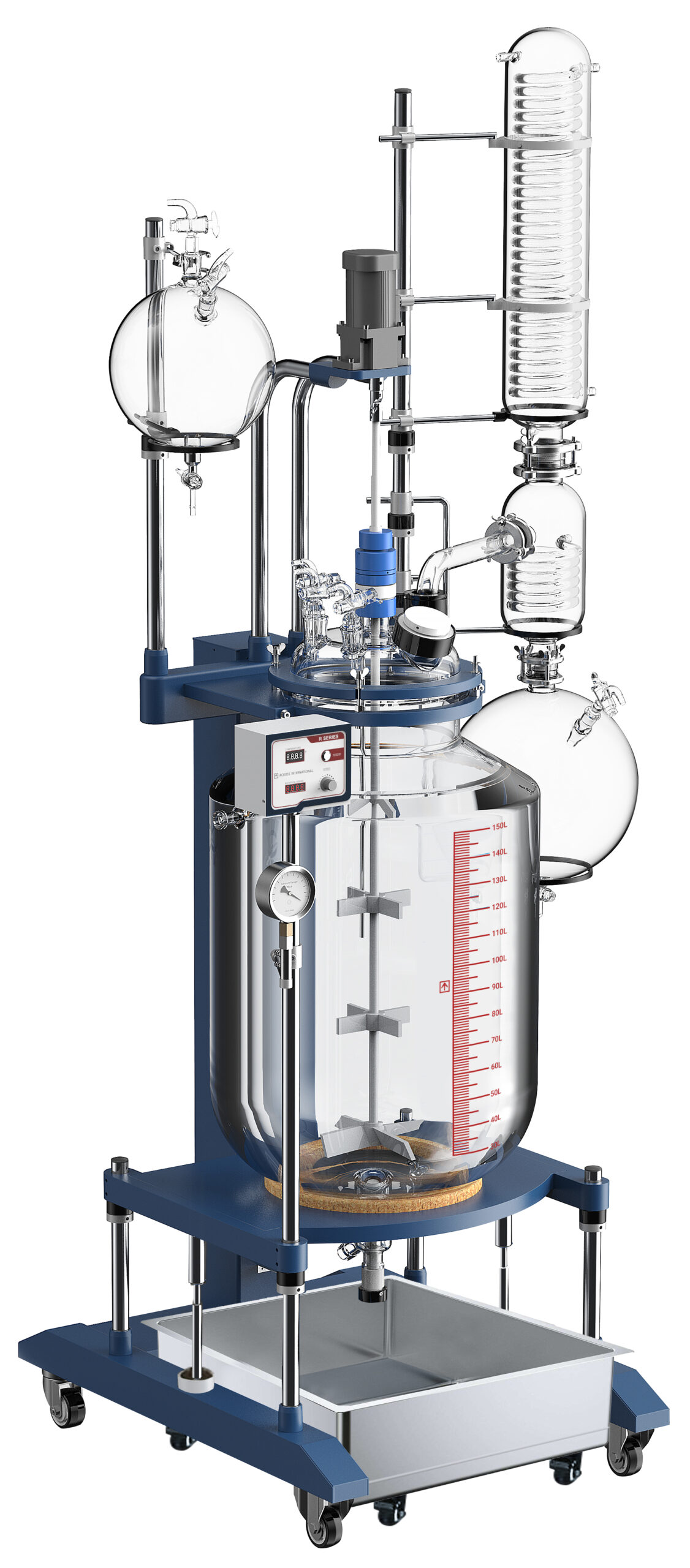

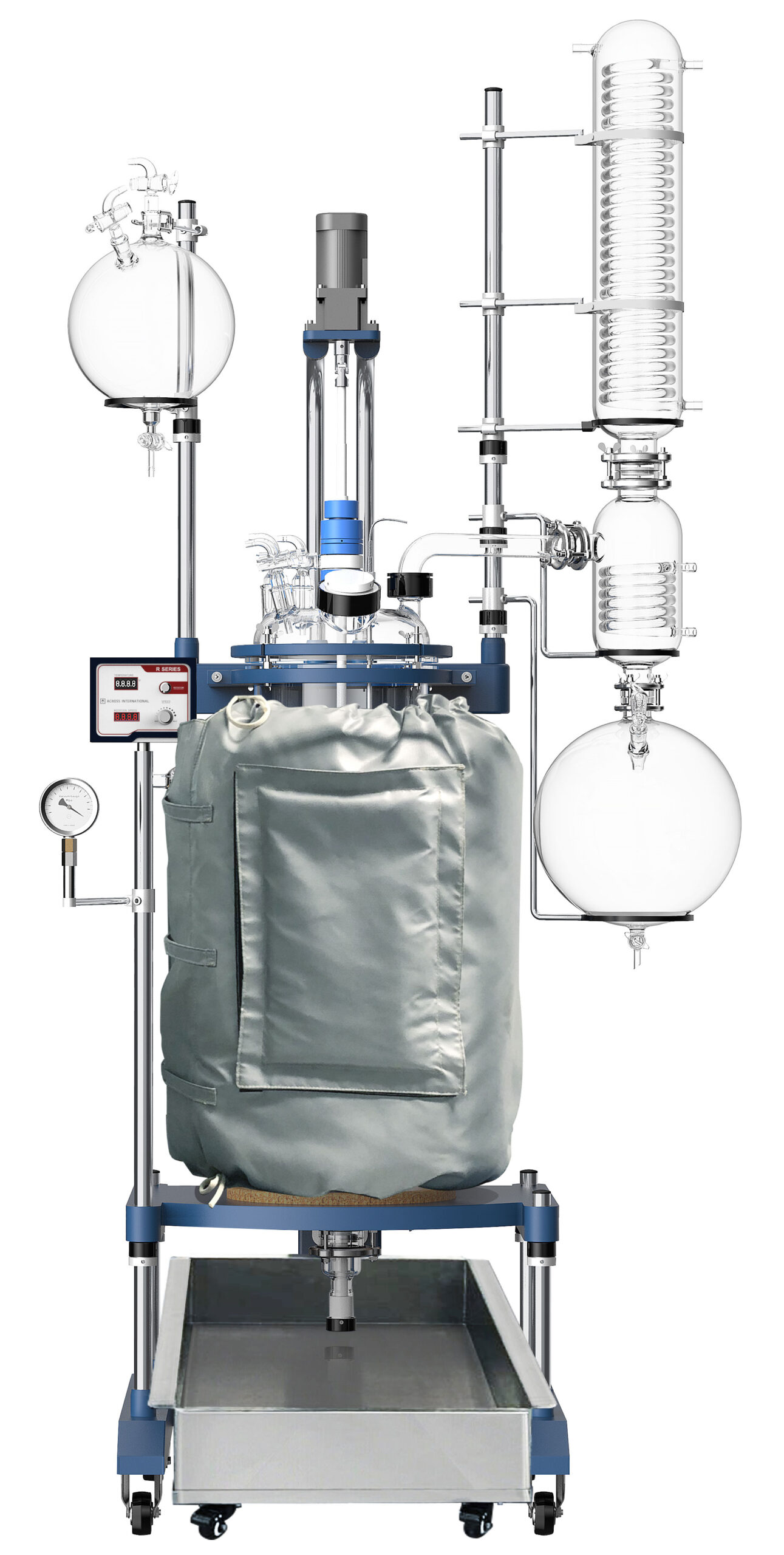

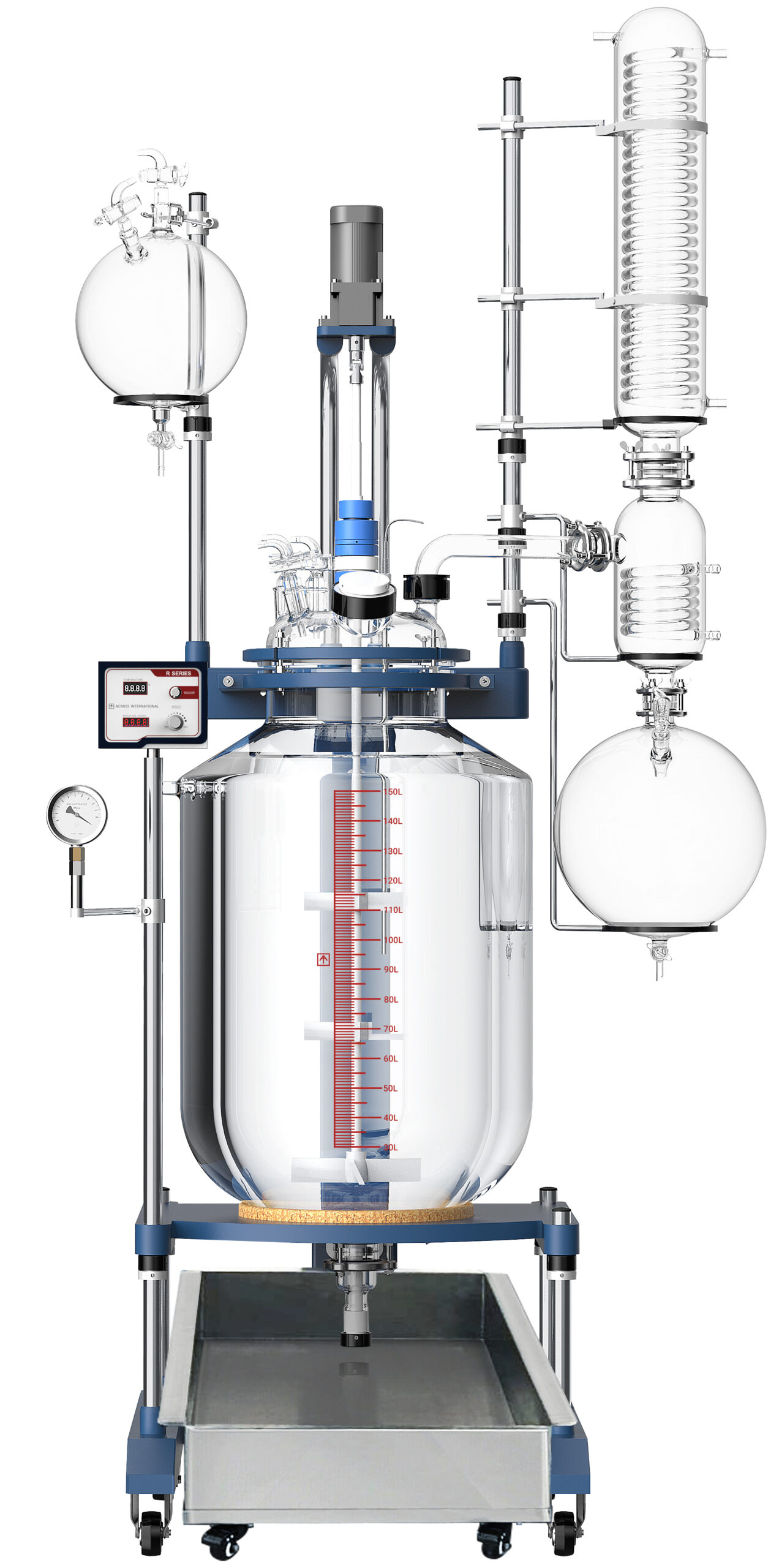

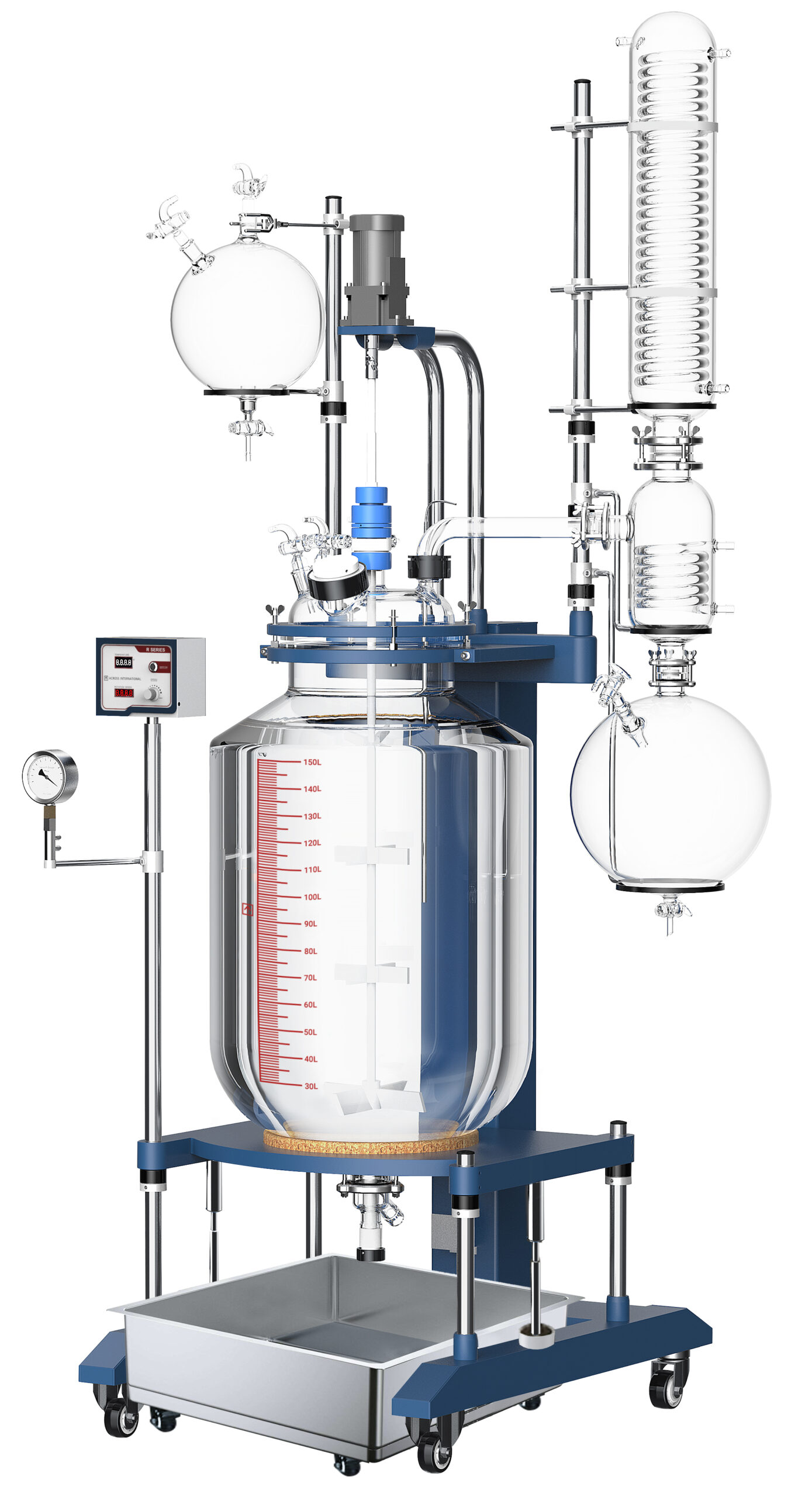

Ai 150L Single Jacketed Glass Reactor ETL

19,990.00$

Ai R150 series jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

SKU: 4200906 Category: Tag:

Description

Model
R150

Electrical requirements
110V 60Hz or 220V 50/60Hz, 1-Phase, 750W

Stirring motor
Power: 750 watts Speed: 500 rpm max. Torque: 14.7 N.m max. Protection: IP44 Speed ratio: 1:3

Reaction glass vessel capacity
40 gallons (150L)

Cooling/heating jacket capacity
12 gallons (45L, Approx.)

Feeding flask capacity
2.6 gallons (10L)

Condenser receiving flask capacity
5.3 gallons (20L)

Ports on vessel lid
Stirrer: #60 flange x 1 Temp sensor: #35 flange x 1 Condenser: #50 ball joint x 1 Liquid feeding: #34 joint x 2 Solid feeding: #95 flange x 1 Feeding funnel port: #40 joint x 1

Glass material
High borosilicate glass 3.3

Maximum jacket pressure
4.4 psi or 0.03 MPa

Drain valve
Flush seal design with large opening and flat flange clamp

Agitator
Style: impeller Material: 304 stainless steel with PTFE liner

Funnel
Pressure equalizing

Vacuum gauge
Mechanical

Swivel caster
Four

Glass vessel temperature range
-110°F to 400°F

Vacuum level
< 700 torrs

Vacuum sealing
Glass or PTFE

Mobile splash bin
Material: 316L stainless steel Dimensions: 20.5 x 27 x 7″ (WxDxH)

Drain port ground clearance
17 inches

Unit/shipping dimesions (WxDxH)
48 x 41 x 109″ / 77 x 61 x 43″

Compliance
ETL certfified to UL and CSA standards

Shipping weight
650 Lbs / 870 Lbs
