Ai -40°C 4.6L Capacity 316L SST Cold Trap w/ KF25 Ports ETL

$8,119.27

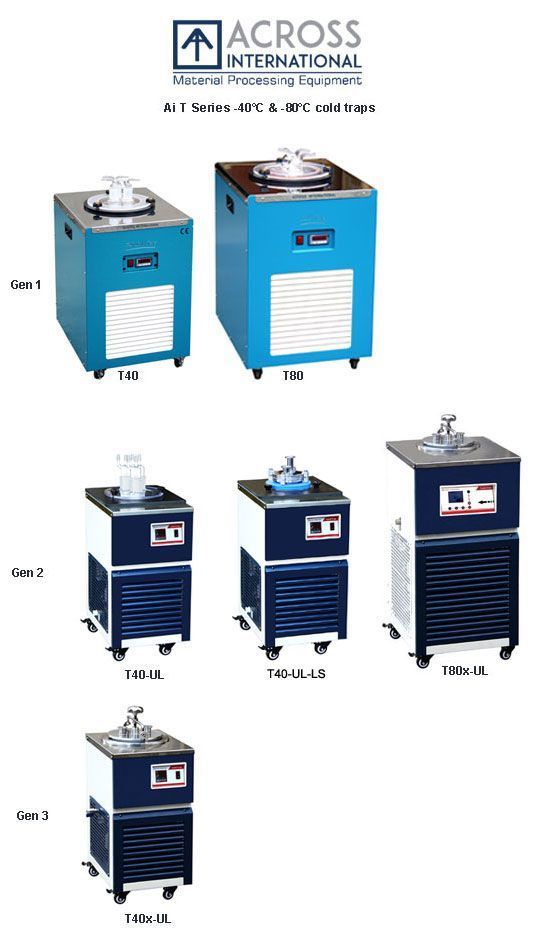

The new Ai 3rd Gen -40°C/F T40 cold traps all come ETL certified, standard. They have a small footprint, but at the same time, offering you the same cooling power. New features include a large 316L SST 4.6 liter trap, 316L corrosion-resistant trapping layers and vacuum connections, PTFE encapsulated silicone sealing gasket, upward KF25 vacuum connections provide you safer and easier vacuum tubing connection and removal. No chilling fluid required, just plug and play.

SKU: 4200090 Category: Tag:

Description

Model
T40x-UL

Electrical requirements
110V or 220V, 60Hz 1-PH, 730 watts

Compressor
Make: Embraco Refrigerant: R404A (280g) Cooling capacity at -40°C: 50W

Trap/Reservoir

Volume   1.2 gallon (4.6 liters) Dimensions   Diameter 6 inches   Depth: 10 inches Material   Corrosion-resistant 316L stainless steel

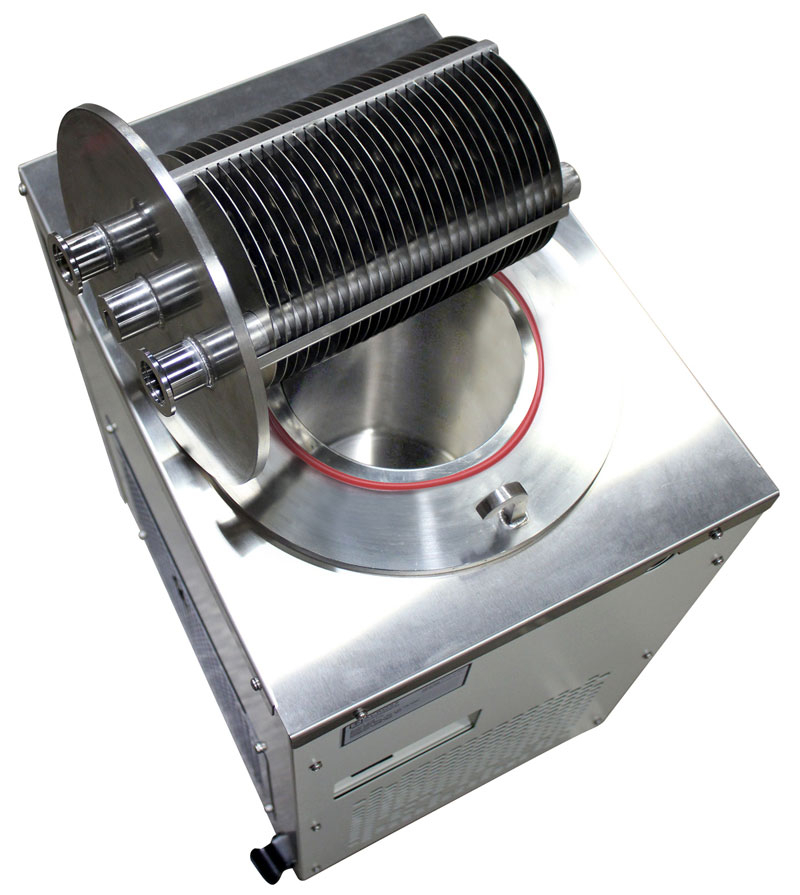

Trapping device
Material: corrosion-resistant type 316L stainless steel Diameter: 5.75 inches Depth: 8 inches Layer: 30

Temperature
-40°C (-40°F) Display: digital Unit: °C Sensor: Pt100

Finish
Exterior: powder coated steel Interior: corrosion-resistant type 316L stainless steel

Vacuum connection
KF25/NW25 x 2

Unit weight
110 Lb

Unit dimensions
13 x 18 x 30″ (WxDxH), fully assembled

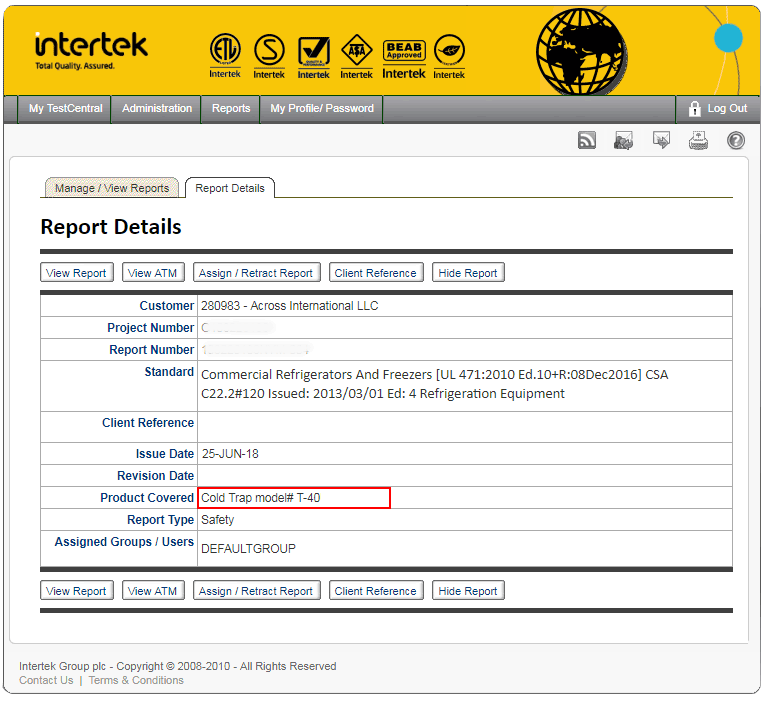

Compliance
UL 471:2010 Ed.10 R:08Dec2016 CSA C22.2#120 Issued: 2013/03/01 Ed: 4 Refrigeration Equipment

Warranty
One year
