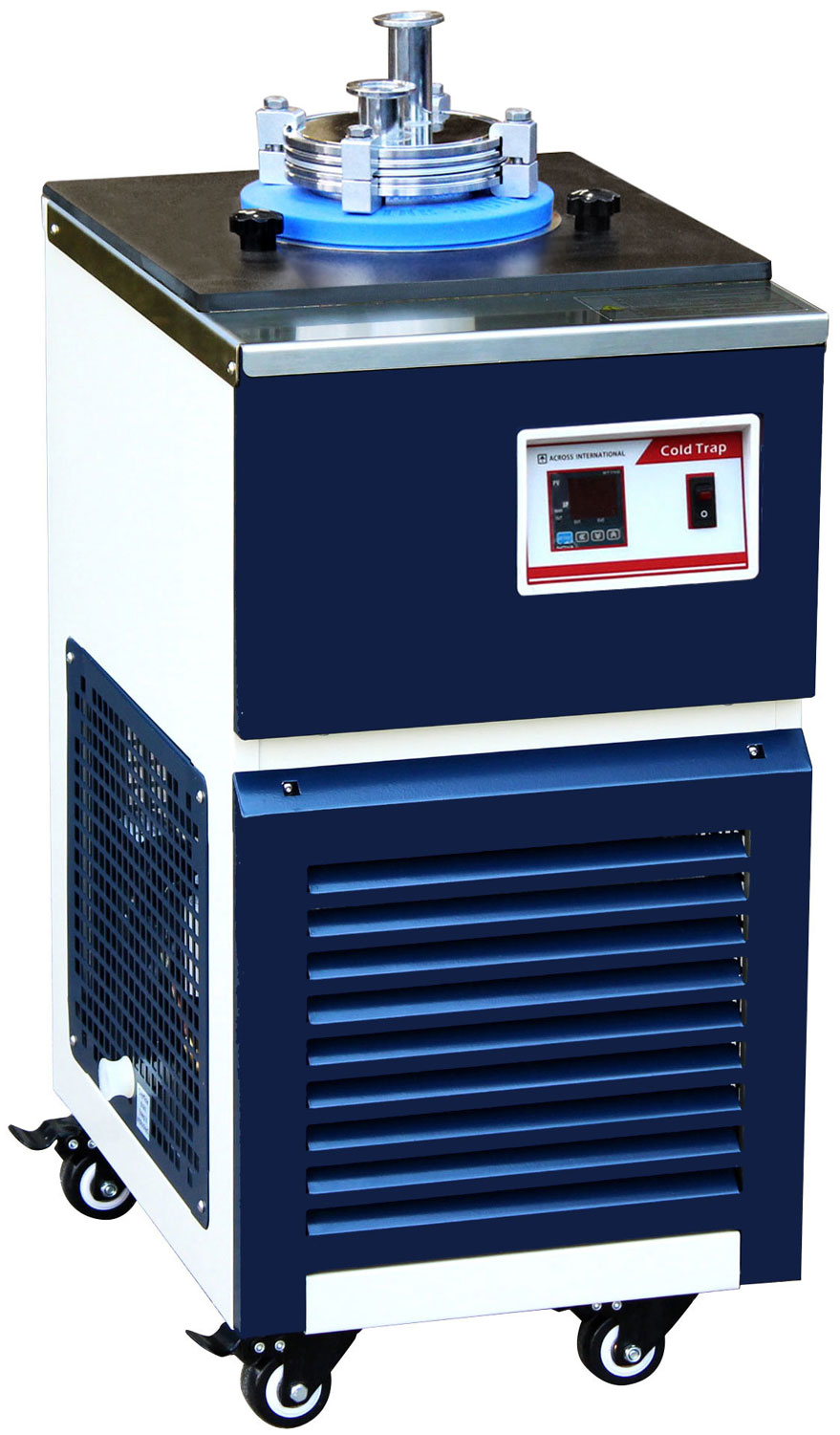

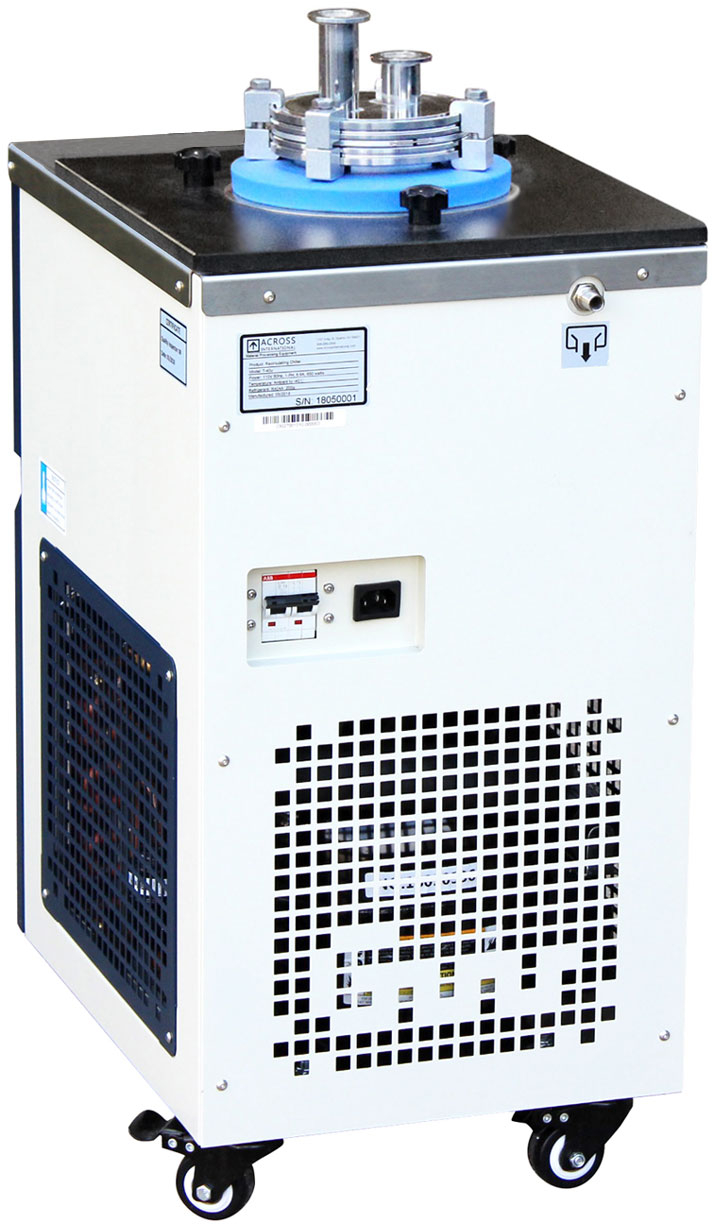

Ai -40°C Cold Trap with LS Stainless Steel Traps ETL


The Ai 2nd Gen -40°C/F T40 cold traps are ETL certified. They have a much smaller footprint, but at the same time, offering you the same cooling power.

SKU: 4200088 Category: Tag:



 Electrical requirements
 110V or 220V, 60Hz 1-PH

 Make: Embraco Refrigerant: R404A (220g) Cooling capacity:    @ -10°C: 300W    @ -20°C: 250W    @ -30°C: 150W    @ -40°C: 50W

 Volume   1.3 gallon (5 liters) Dimensions   Diameter 6 1/4 inches   Depth: 9 1/2 inches

 -40°C (-40°F) Display: digital Unit: °C Sensor: PT100

 Exterior: powder coated steel Interior: polished type 304 stainless steel

 Material: stainless steel Make: Lab Society Connection: KF25 x 2 Construction: 6 tier mesh pates, silicone insulating ring

 Recommended coolant
 50% Ethylene glycol 50% purified water

 Unit/shipping weight
 105 lbs / 145 lbs

 Unit/shipping dimensions
 13 x 18 x 26″ / 18 x 23 x 38″ (WxDxH)

 UL 471:2010 Ed.10 R:08Dec2016 CSA C22.2#120 Issued: 2013/03/01 Ed: 4 Refrigeration Equipment

 One year
