Ai -80°C 5L Capacity 316L SST Cold Trap w/ KF25 Ports ETL

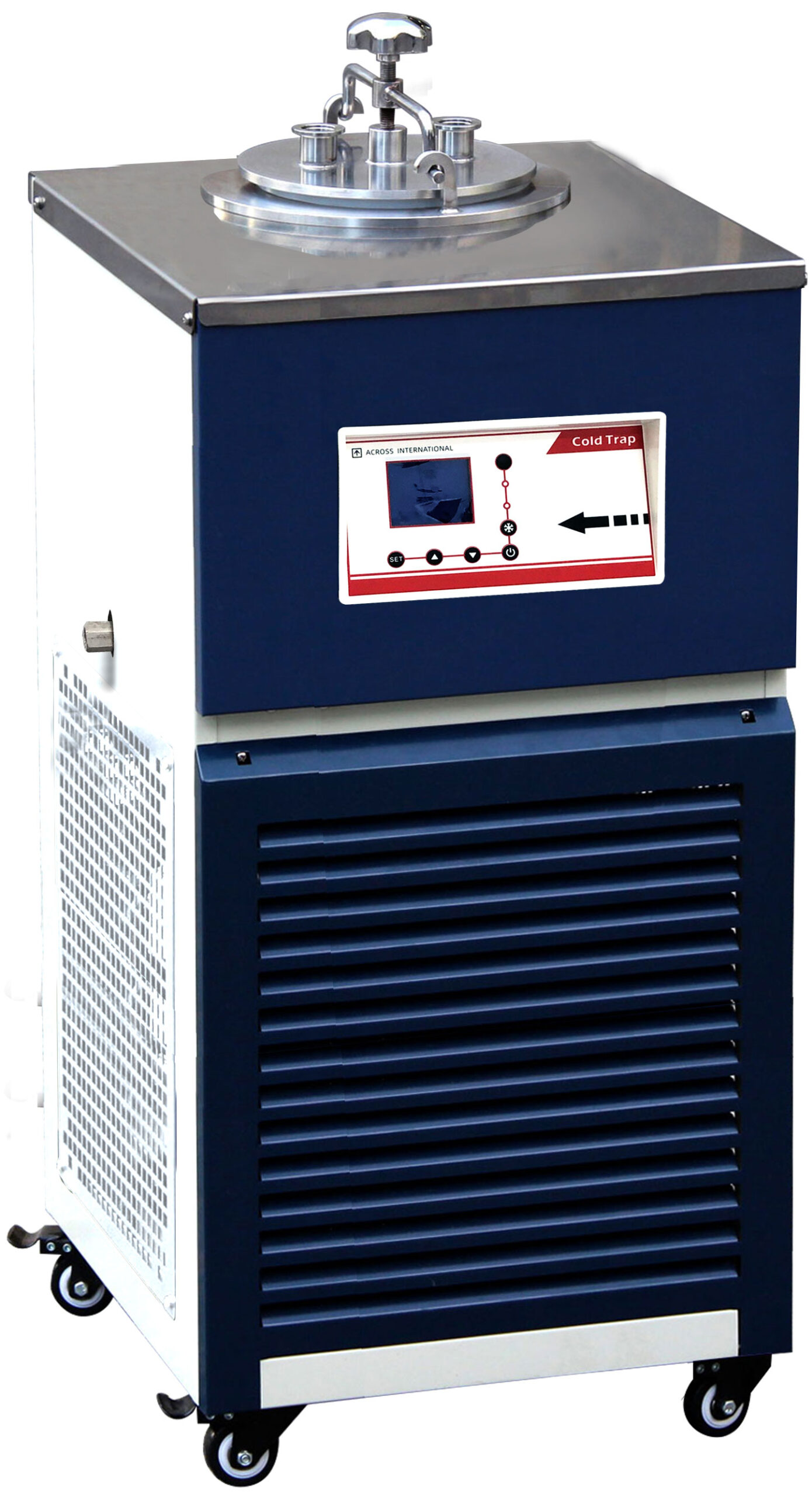

Introducing the Ai 2nd Gen -80°C (-112°F) T80 cold traps with a large corrosion-resistant 316L SST 5 liter trap, 316L trapping layers/vacuum connections, and PTFE encapsulated silicone sealing gasket. Upward KF25 vacuum connections provide you safer and easier vacuum tubing connection and removal. No chilling fluid required, just plug and play.

SKU: 4200091 Category: Tag:



 Electrical requirements
 110V 60Hz, 1~Phase, 1,600 watts  or  220V, 60Hz 1~Phase, 1,830 watts

 Working environment

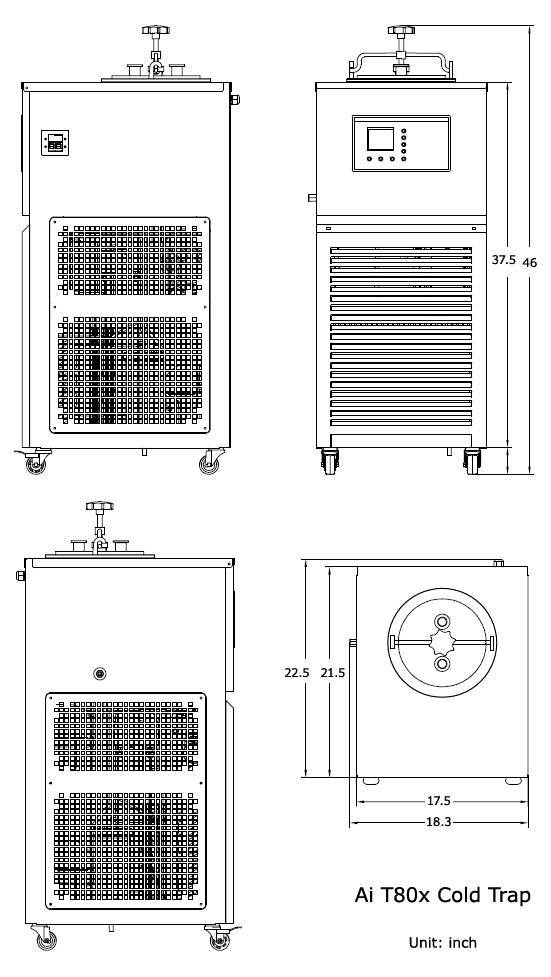

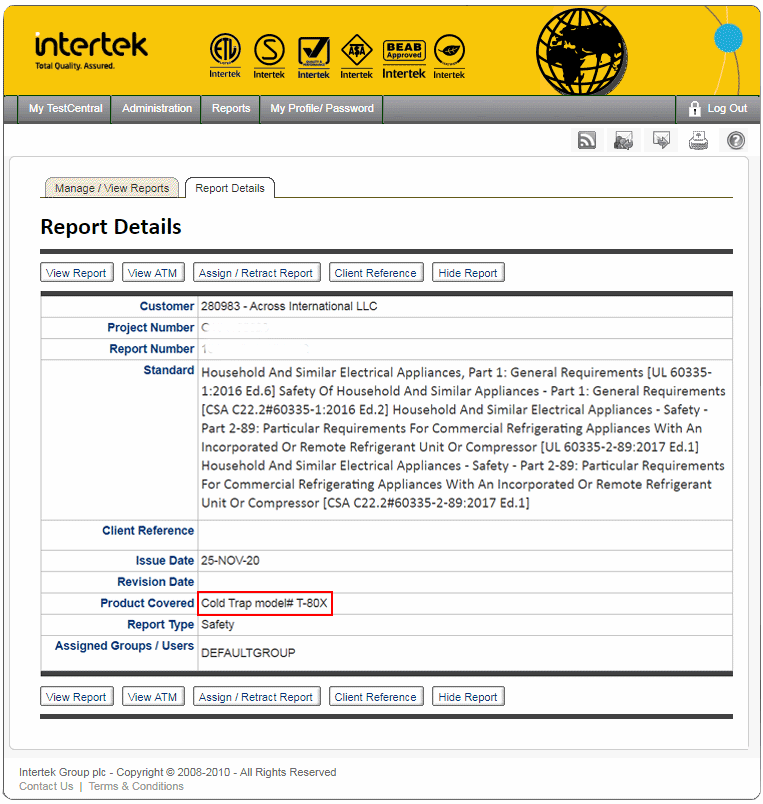

 Temperature: 5°C to 35°C (41°F to 95°F) Humidity: <70%  Compressor  Make: Embraco Refrigerant: R404A, R23 Cooling capacity   -40C: 350W   -60C: 300W   -70C: 200W   -80C: 40W  Trap/Reservoir  Volume   1.3 gallon (5 liters) Dimensions   Diameter 6.3 inches   Depth: 10 inches Material   Corrosion-resistant 316L stainless steel  Trapping device  Material: corrosion-resistant type 316L stainless steel Diameter: 5.75 inches Depth: 8 inches Layer: 30  Temperature  Working temperature range: -50°C to -80°C (-112°F) Display: digital Unit: °C Sensor: Pt100 Time to -80°C   110V: 50 minutes   220V: 60 minutes  Finish  Exterior: powder coated steel Interior: corrosion-resistant type 316L stainless steel  Vacuum connection  KF25/NW25 x 2  Unit/shipping weight  215 Lb / 290 Lb  Unit/shipping dimensions   17.5 x 21.5 x 46" / 23 x 27 x 54" (WxDxH)  Compliance  UL 60335-1:2016 Ed.6 UL 60335-2-89:2017 Ed.1 CSA C22.2#60335-1:2016 Ed.2 CSA C22.2#60335-2-89:2017 Ed.1  Warranty  One year
