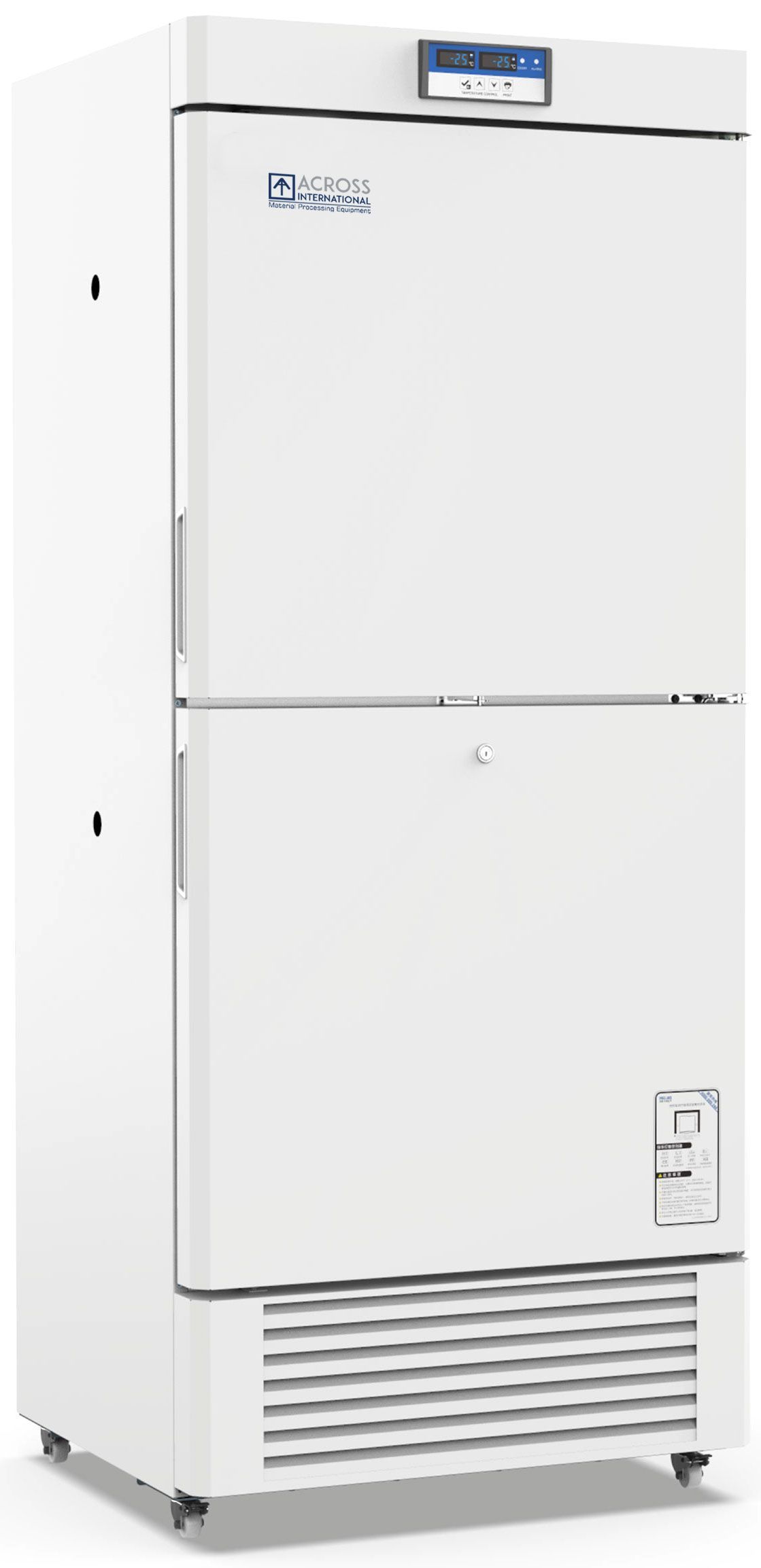

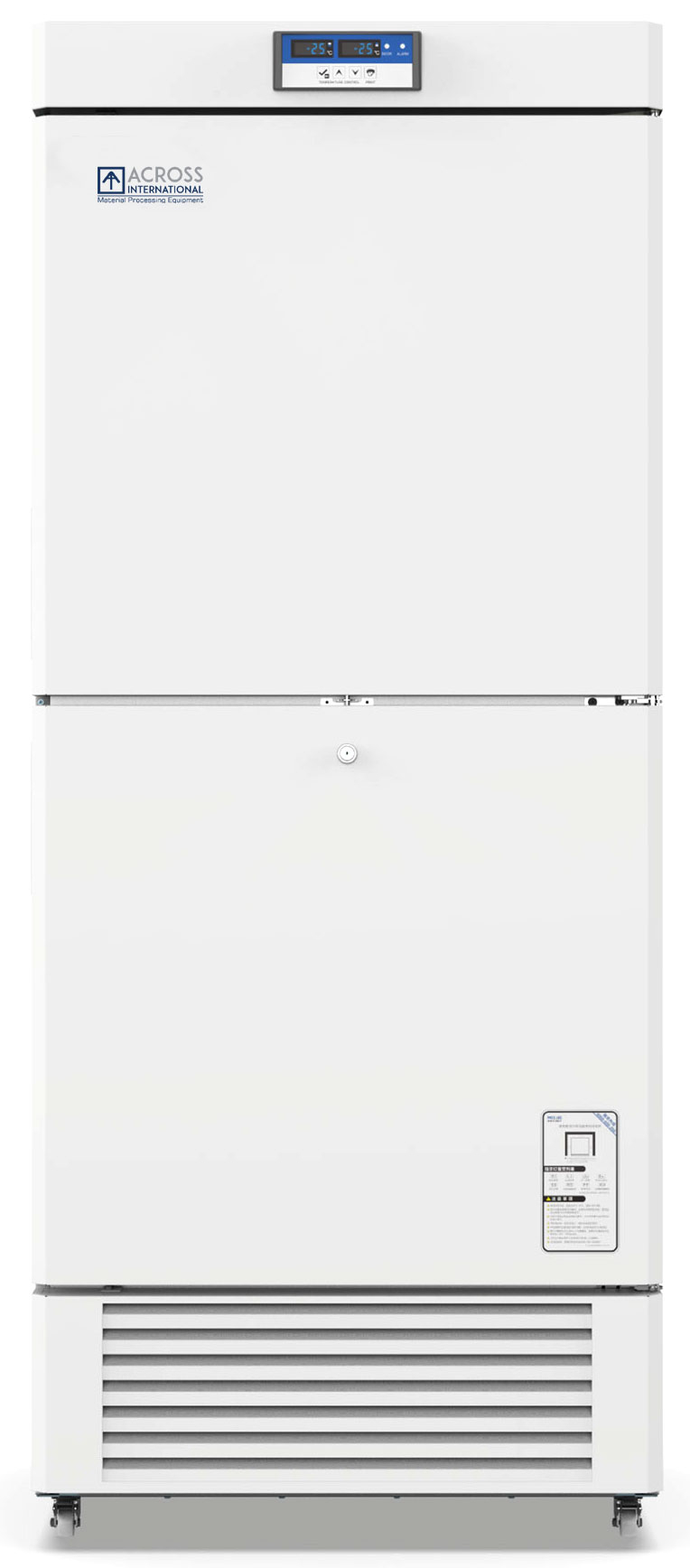

Ai DeepFreeze 16 Cu Ft -40°C Upright Freezer 110V


The Ai DeepFreeze series -40°C freezers is perfect for large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.

SKU: 4200251 Category: Tag:



 Electrical requirements
 110V (±10%) 60Hz 1-Phase 8.89A

 Temperature range: -20°C to -40°C

 Number of compressors: two Cooling method: direct cooling Defrost mode: manual Style: parallel Refrigerant: R290

 Dimensions: 25.5 x 22.5 x 24.5″ (WxDxH) Number of chambers: two Material: stainless steel Volume: 15.9 Cu Ft

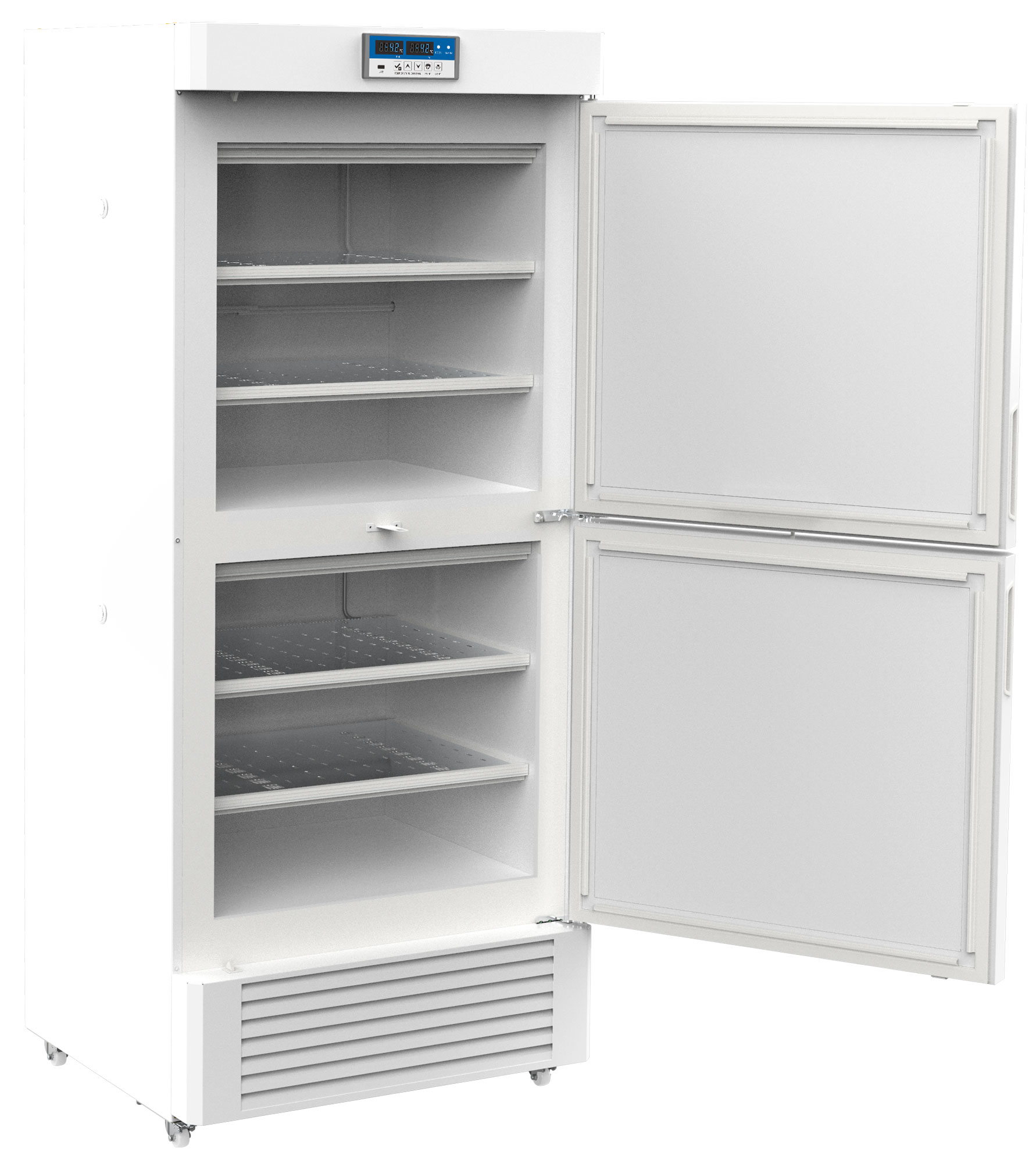

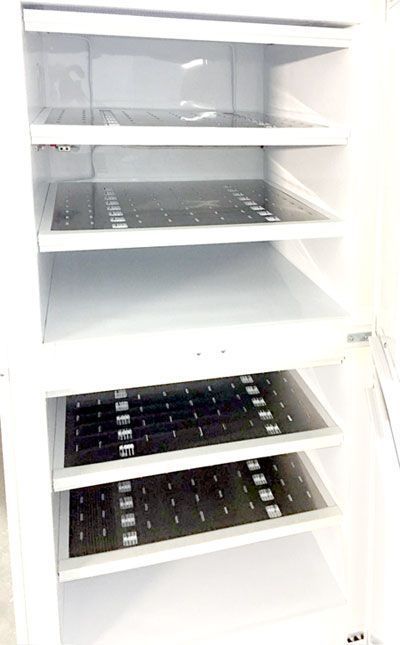

 Quantity: two in each chamber, four in total Style: fixed Material: stainless steel


 Working environment

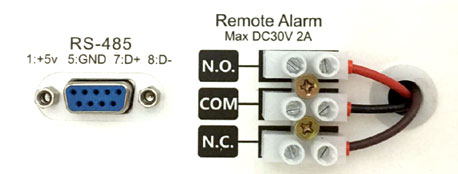

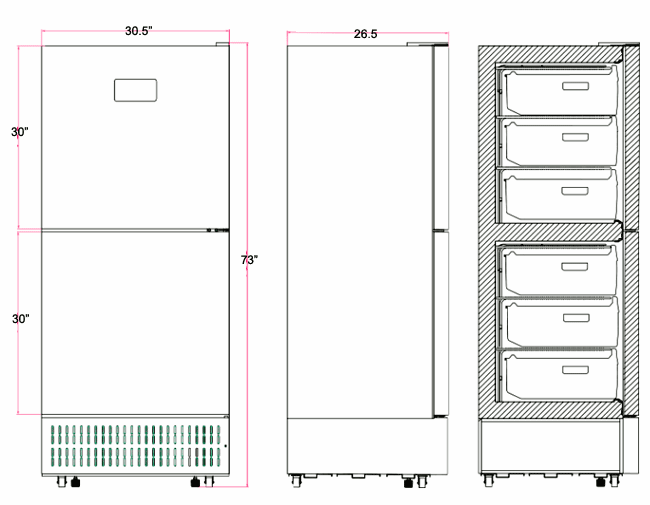

 – Temperature: 16°C to 32°C – Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for   24 hours before turning the unit on for the first time.  Access port  Two  Communication  Remote alarm 4-20mA transmitter, USB, RS-485  Built-in swivel casters  Four, two with brakes  Noise level  52 dBA  Unit/shipping weight & dimensions   320 Lbs / 345 Lbs 30.5 x 26.5 x 73" / 37.5 x 34.5 x 80" (WxDxH)  Safety  Compressor over-temp protection Compressor power surge delay protection Power failure protection Low battery, door open, filter clogging, system failure, sensor error, condenser    overheat alarms External door with lock  Warranty  One year
