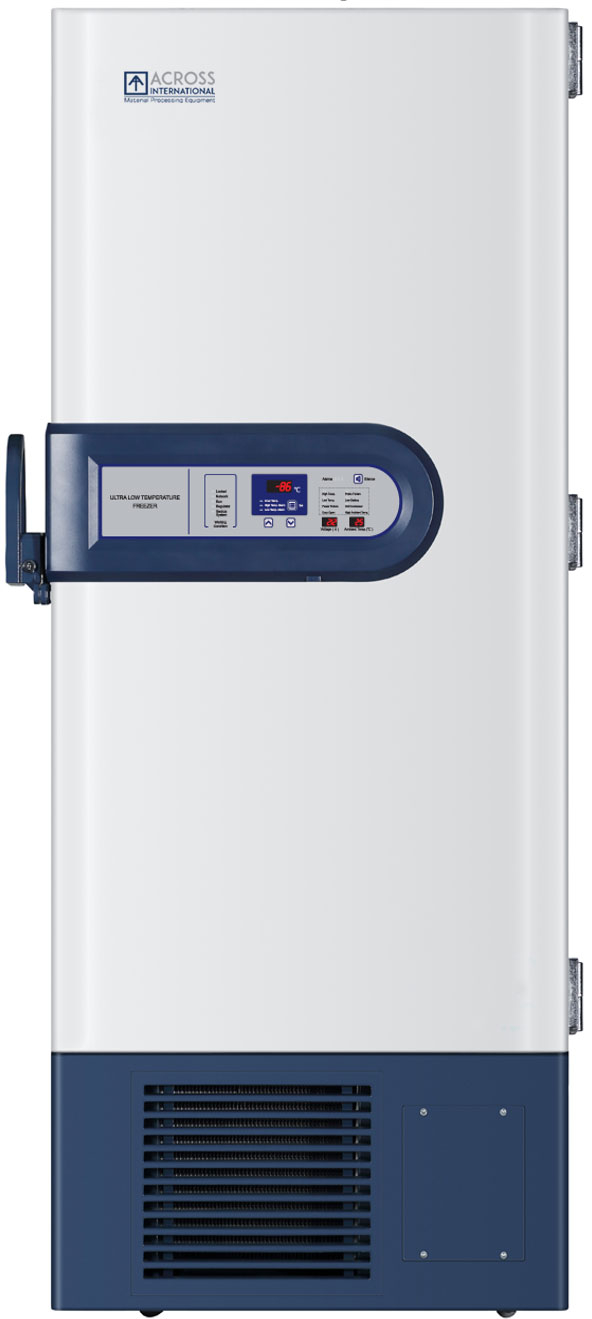

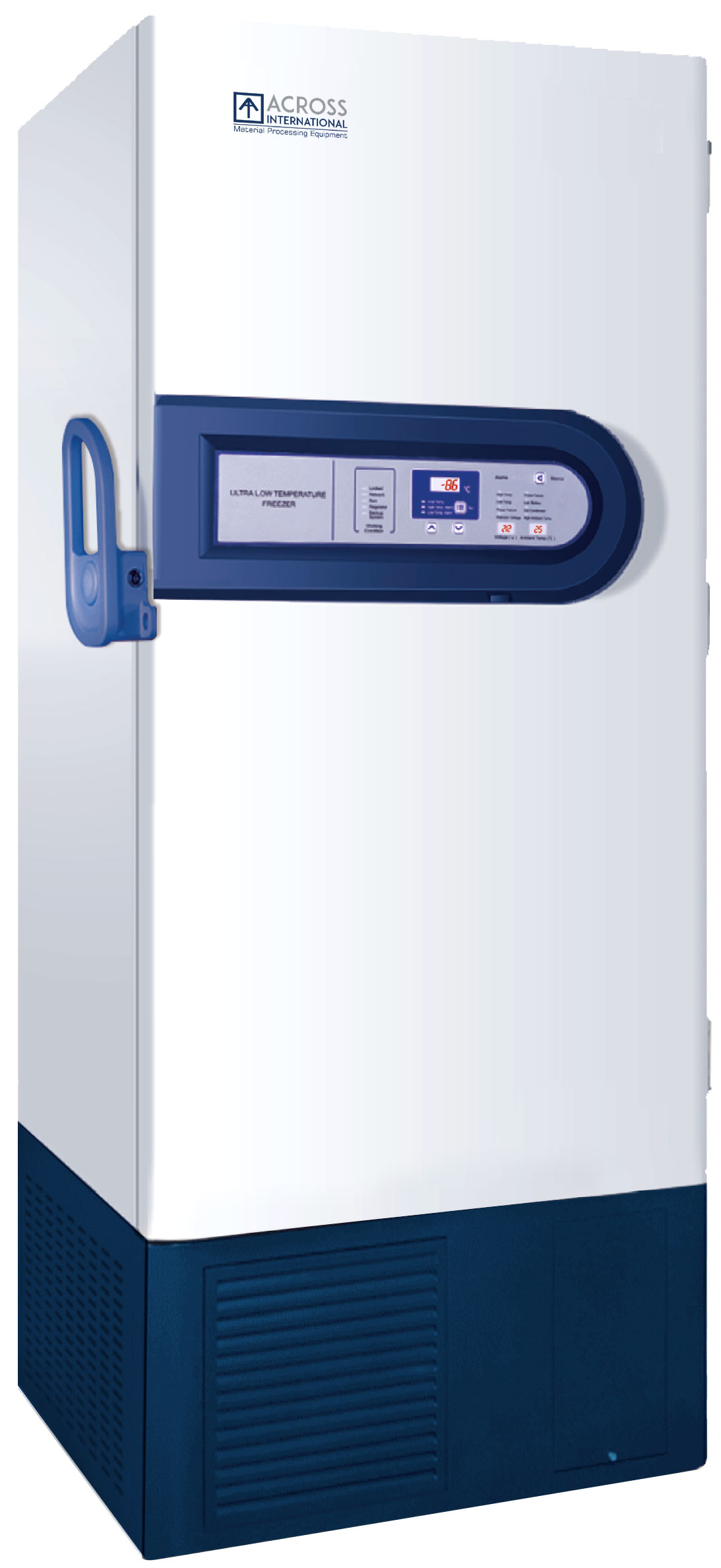

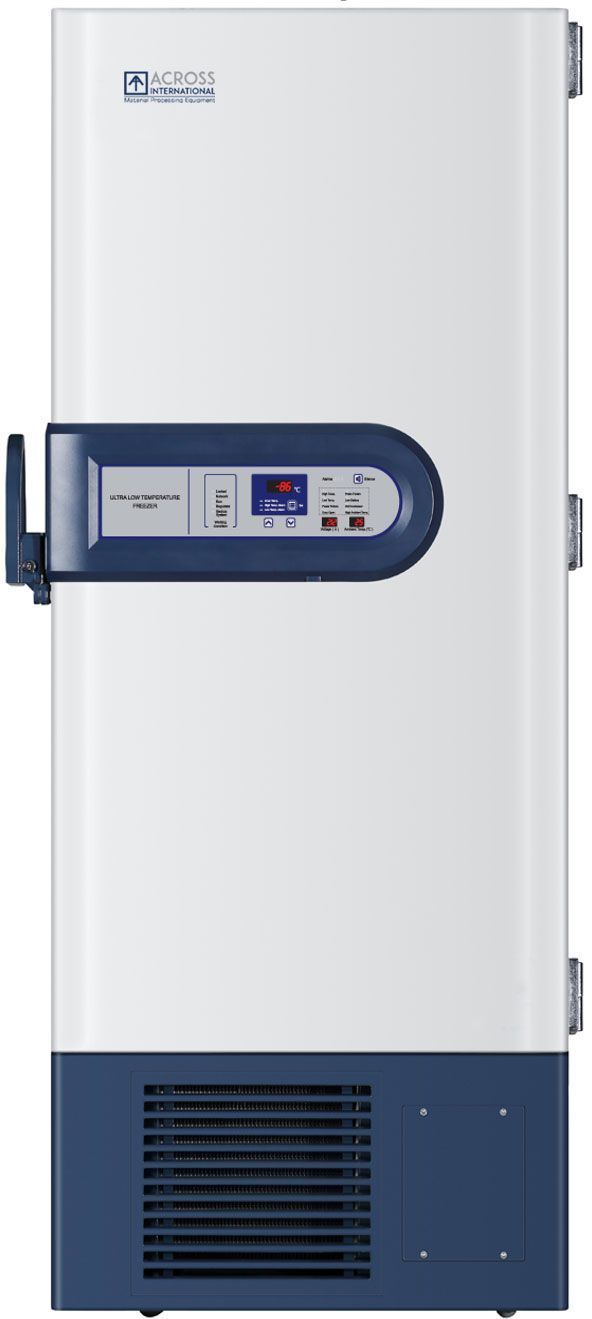

Ai RapidChill 12 CF -86°C Ultra Low Freezer Upright UL 120V

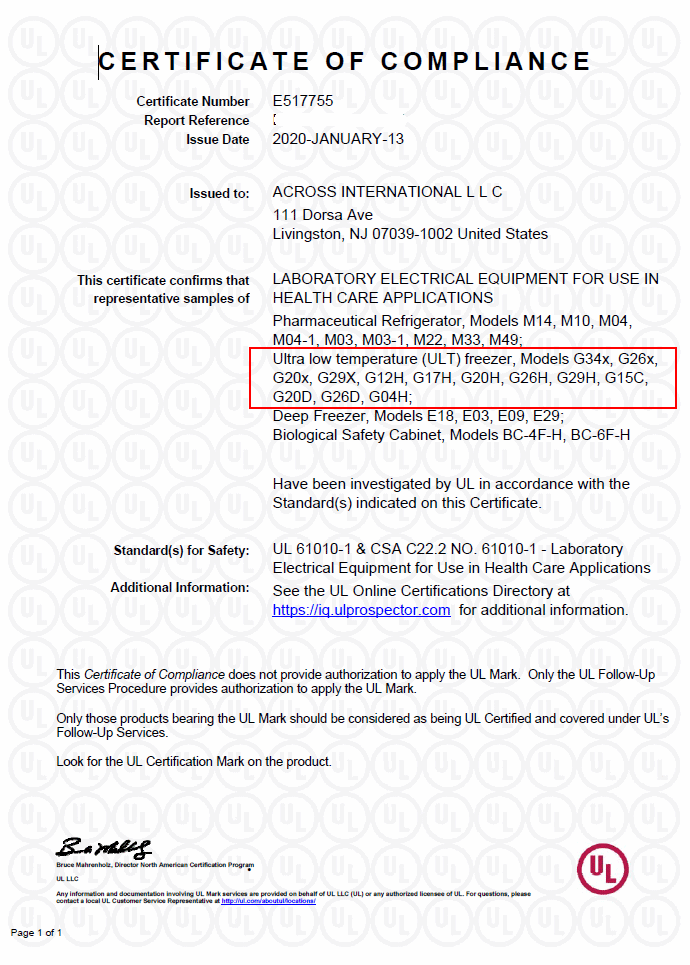

The Ai RapidChill series -86°C ultra-low ULT freezers is designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.

SKU: 4200255 Category: Tag:



 Electrical requirements
 120V (±10%) 60Hz 1-Phase 12A

 Power consumption
 7.5 kW/day

 Temperature range: -40°C to -86°C Time from ambient to -86°C: 4 hours Uniformity: ±4°C Time from -86°C to -50°C with door close (ambient 25°C): 3.5 hours

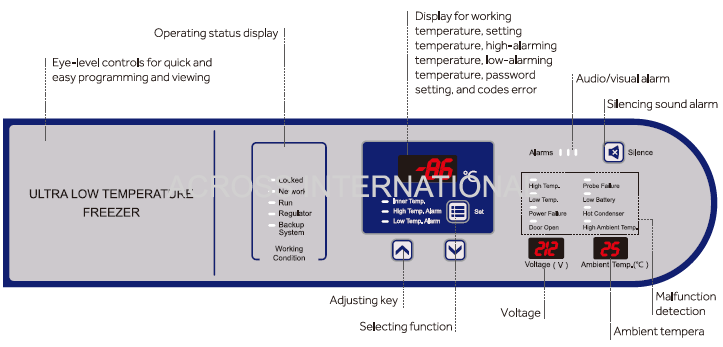

 – Style: microcomputer controlled with analog display – Range -40°C to -86°C – Step: 1°C – Thermo sensor: PT100 – Displays: internal temperature, ambient temperature, input voltage, error code – Indicators: high/low temperature/battery alarms, sensor failure, power failure,                 condenser failure, door open, high ambient temperature, working                 condition

 Make: SECOP (formerly known as Danfoss), Germany Style: direct cooling Power: 115V 60Hz 1-PHASE, 0.54HP x 2 Number of compressors: two HC refrigerants: R290 (stage 1), R170 (stage 2)

 Dimensions: 18.3 x 24.8 x 45.9″ (WxDxH) Material: powder coated steel Capacity: 12 Cu Ft Insulation: VIP (Vacuum Insulated Panel)

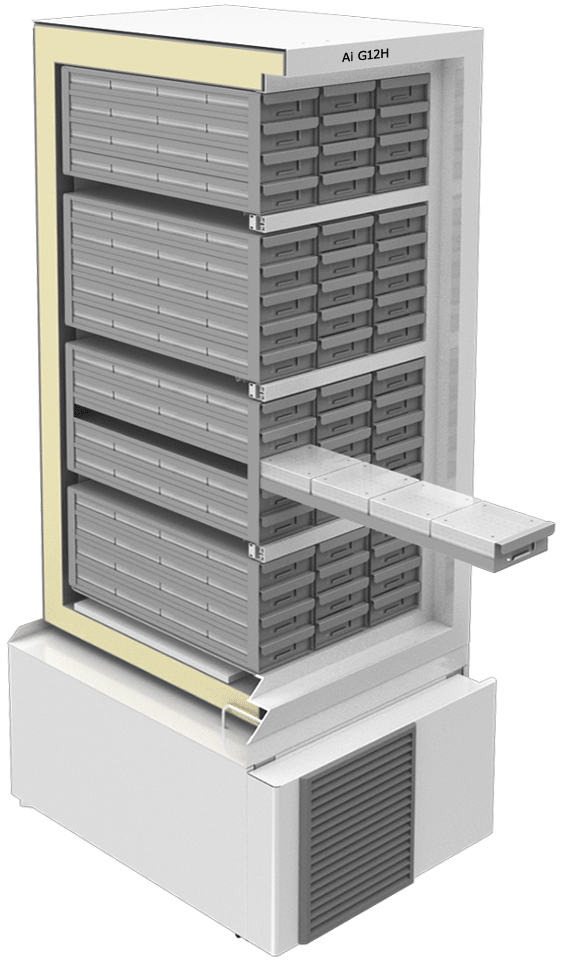

 Come with unit: 3 (4 compartments), fully adjustable Dimensions: 17.8 x 23.5″ (WxD) Max. capacity: 110 Lbs Material: 304 stainless steel

 Door and gasket

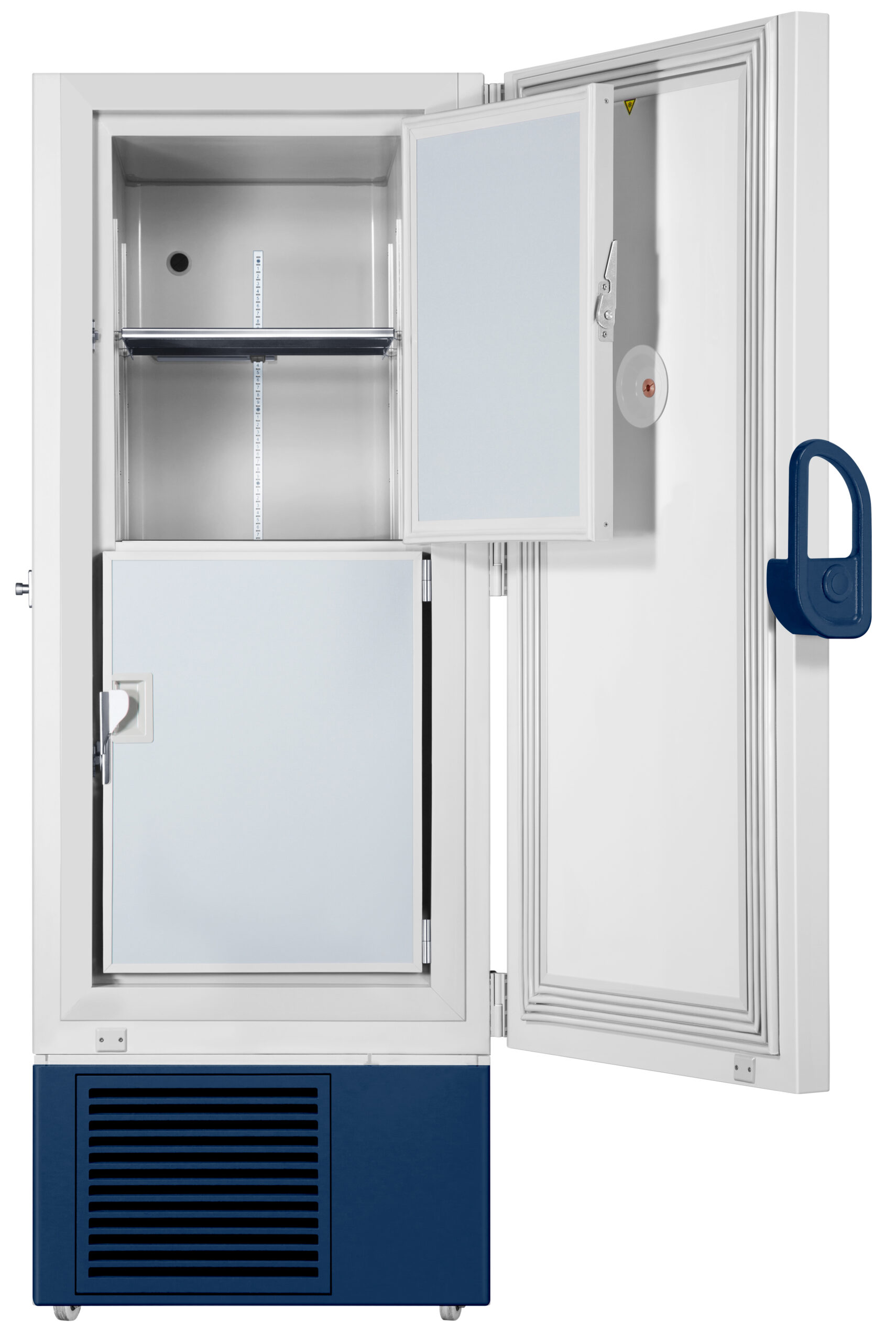

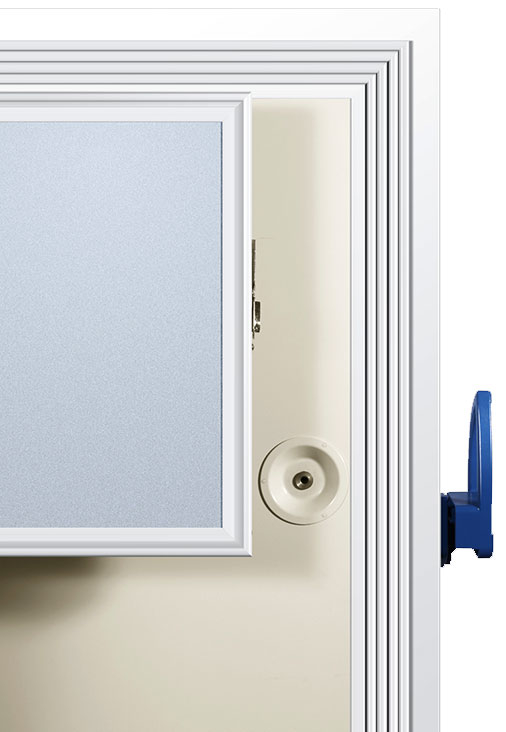

 Inner door: two, each with one sealing gasket External door: one with four sealing gaskets, lock-able

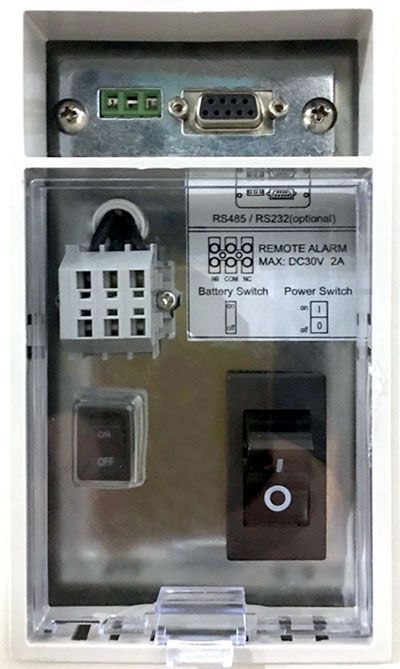

 Standard: RS-485, USB (stores 15 years of data for compliance purpose) Optional: 4-20mA transmitter

 Access port

 Noise level
 50 dBA

 Working environment
 – Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) - Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for    24 hours before turning the unit on for the first time.  Battery backup system  48 hours (for controller display and alarms only)  Unit/shipping weight & dimensions   525 Lbs / 615 Lbs 32.7 x 35.2 x 72.7" / 38 x 40 x 76" (WxDxH)  Safety  - Compressor over-temp protection - Ambient over-temp protection - Compressor power surge delay protection - Password protection - Sensor failure protection - Over-temperature and low-temperature protection - Power failure protection - Low battery, door open, condenser clogging, system failure alarms - External door with lock  Compliance  UL 61010-1 CSA C22.2  Warranty  2-year full service, 3-year parts, 5-year compressor
