Description
Model
E18
Electrical requirements
115V (±10%) 60Hz 1-Phase, 600W, 6.5A
Performance
Temperature range: -10°C to -30°C Time from ambient to -30°C: 3 hours Temperature uniformity: ±4°C Time from -30°C to -10°C with door closed (ambient 25°C): 5 hours
Controller

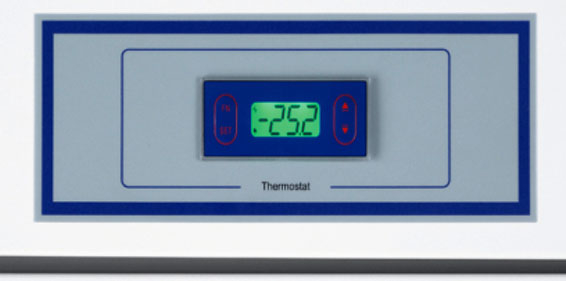

Microprocessor-controlled, LED display
Compressor
Power: 110V 60Hz 1-PHASE Cooling type: direct cooling Defrost mode: manual Refrigerant: CFC-free, HC refrigerant
Chamber
Dimensions: 27 x 24 x 48.3″ (WxDxH) Material: coated steel Volume: 17.9 Cu Ft Number of chambers: two
Door and gasket

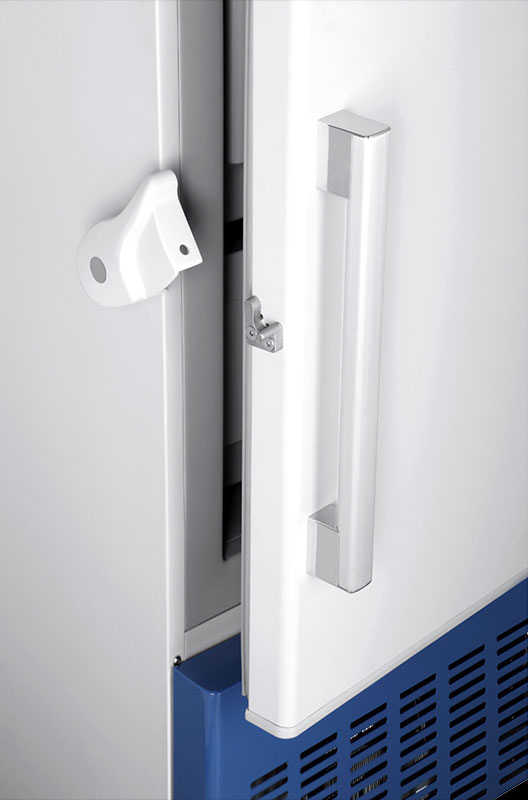

Two lockable door, with dual sealing gaskets
Working environment
– Temperature: 10°C to 32°C (ideal temperature: 18°C to 25°C) – Humidity: <85% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Storage bin
Ten, plastic
Battery backup system
48 hours (for controller display and alarms only)
Access port
One, on the left of the freezer
Noise level
43 dBA
Unit/shipping weight & dimensions
360 Lbs / 440 Lbs 36 x 32 x 73" / 38 x 25.5 x 80.5" (WxDxH)
Safety
Compressor over-temp protection Compressor power surge delay protection External door with lock Sensor error, low battery, chamber high/low temperature, and remote alarms
Compliance
UL 61010-1 CSA C22.2
Warranty
One year
