Description
Model
E03
Electrical requirements
115V (±10%) 60Hz 1-Phase, 90 watts
Temperature range
-10°C to -25°C
Controller
Microprocessor, LED display
Compressor
Power: 110V 60Hz 1-PHASE Cooling type: direct cooling Defrost mode: manual Refrigerant: CFC-free, R600a HC refrigerant
Chamber
Dimensions: 17 x 16 x 25″ (WxDxH) Material: coated steel Volume: 3 Cu Ft
Door and gasket
Lockable door, dual sealing gaskets
Working environment
– Temperature: 10°C to 32°C (ideal temperature: 18°C to 25°C) – Humidity: <85% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.

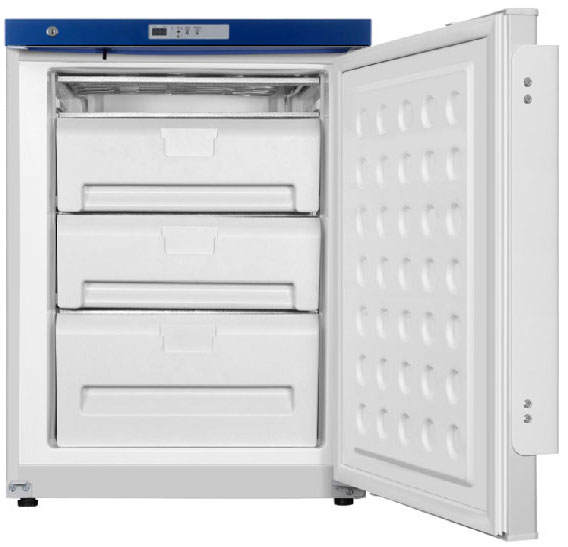

Storage bin
Three
Access port
One, 1" diameter, left of the freezer
Noise level
27 dBA
Unit/shipping weight & dimensions
100 Lbs / 115 Lbs 24 x 24 x 34" / 26 x 28 x 37" (WxDxH)
Safety
Compressor over-temp protection Compressor power surge delay protection External door with lock

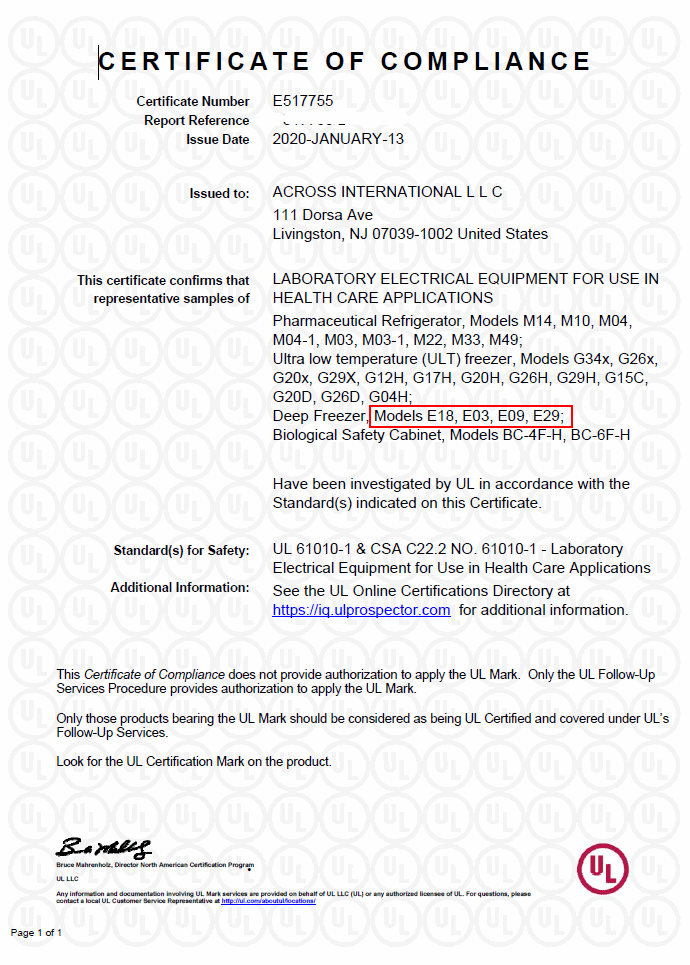

Compliance
UL 61010-1 CSA C22.2
Warranty
One year
