Description
Model
G04
Electrical requirements
110V (±10%) 60Hz 1-Phase 950 watts 8.6A
Performance
Temperature range: -40°C to -86°C Time to reach -86°C: 4 hours
Compressor
Make: SECOP (formerly known as Danfoss), Germany Model: SC18MLX (104L2105) Power: 115V 60Hz 1-PHASE, 1HP Number of compressors: one Refrigerant: Ai proprietary mixture gases, CFC-free

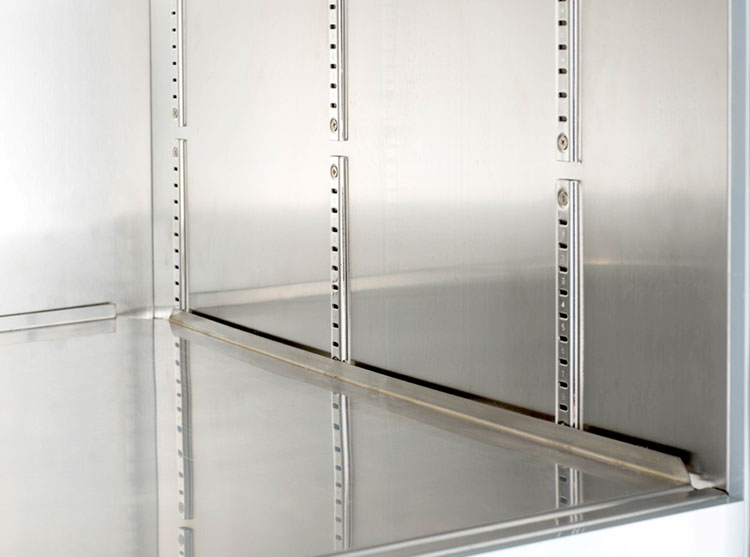

Chamber
Dimensions: 17.75 x 19 x 20″ (WxDxH) Material: stainless steel Effective capacity: 3.5 Cu Ft
Date printer
Built-in, records 7 days of data
Shelf
Come with unit: one adjustable shelf (2 compartments) Material: 304 stainless steel Capacity: 65 Lbs, evenly distributed Dimensions: 17.5 x 17.5 inches Additional shelf unit price: $200

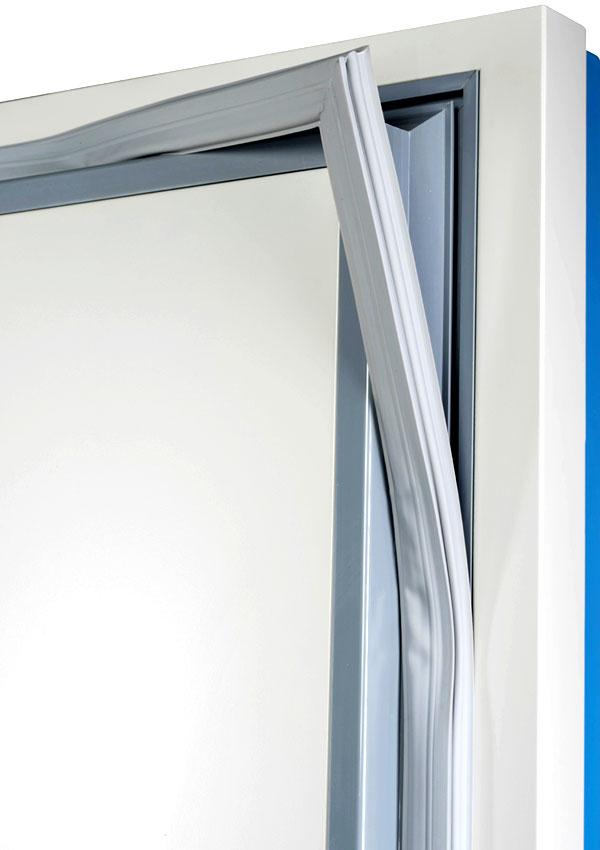

Door and gasket
Inner door: two, each with one sealing gasket External door: one with dual sealing gaskets, lock-able
Access port
One, 30mm diameter
Built-in swivel casters
Four
Noise level
48 dBA
Communication
Remote alarm, RS232, 4-20 mA transmitter (optional)
Working environment
– Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) - Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system
48 hours (for controller display and alarms only)

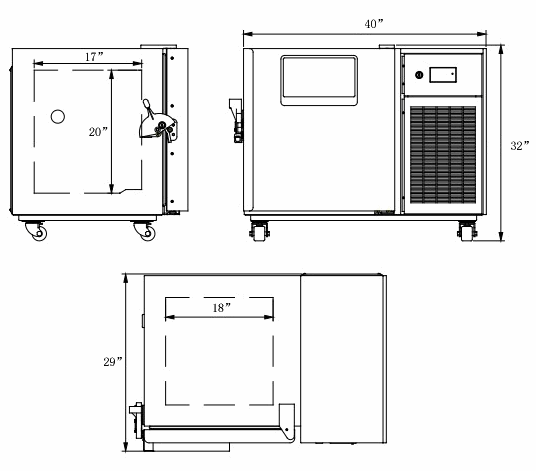

Unit/shipping weight & dimensions
380 Lbs / 455 Lbs 42 x 28 x 32" / 46 x 32 x 45" (WxDxH)
Safety
Compressor over-temp protection Compressor power surge delay protection Short circuit and ground protection Over-current protection Over-temperature and low-temperature protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock

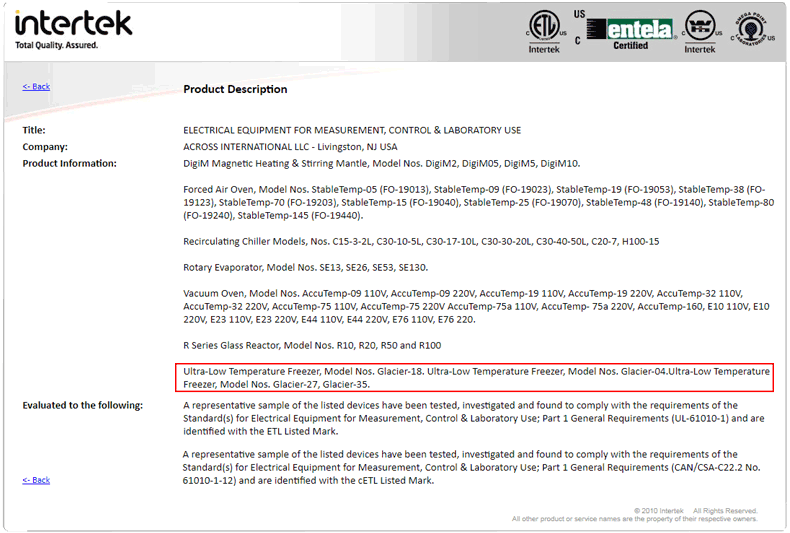

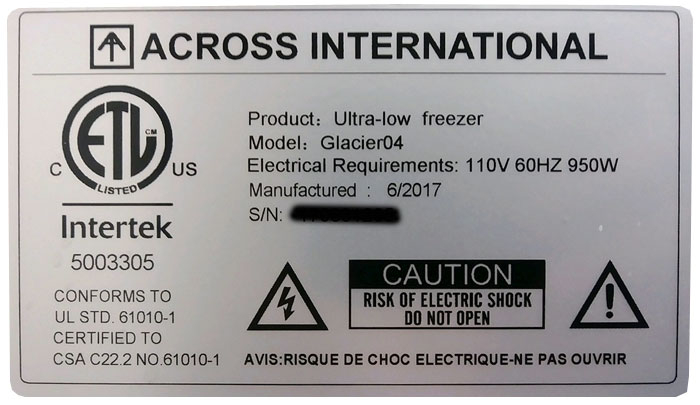

Compliance
UL STD 61010-1 (standard) CSA C22.2 NO. 61010-1 (standard) UL STD 471 (optional)
Warranty
2 years
