Description
Model
DigiM20
Electrical requirements
220V 60Hz 1-Phase, 2900 watts, 13.2 A
Heating
Ambient to 300°C
Stirring
Min. speed: 110 rpm, max. speed: 2000 rpm Motor power: 40 watts Motor type: brushless DC motor

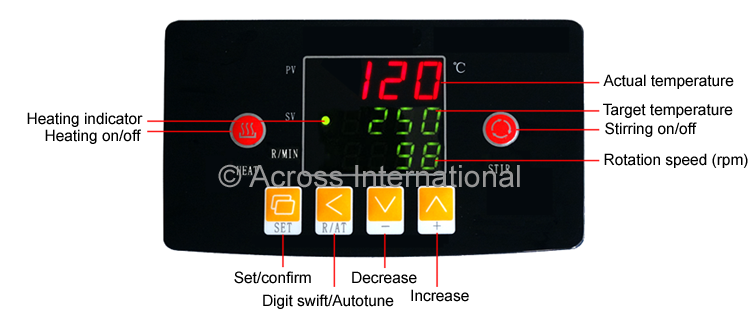

Controller
PID control with digital temperature and rotation speed display

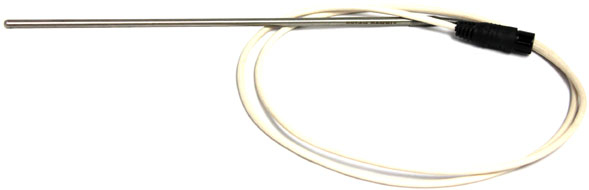

External thermocouple
Type: PT100 Cable length: 43 inches Stainless steel probe length: 15 inches Stainless steel probe diameter: 5 mm
Flask holder
Maximum flask capacity: 20 liters Top opening diameter: 14.5 inches Depth: 7.5 inches
Dimensions (WxDxH)
Unit: 20.5 x 20.5 x 13 inches, shipping: 24 x 24 x 18 inches
Weight
Unit: 40 lbs, shipping: 50 lbs
Safety
Thermocouple failure protection
Certification

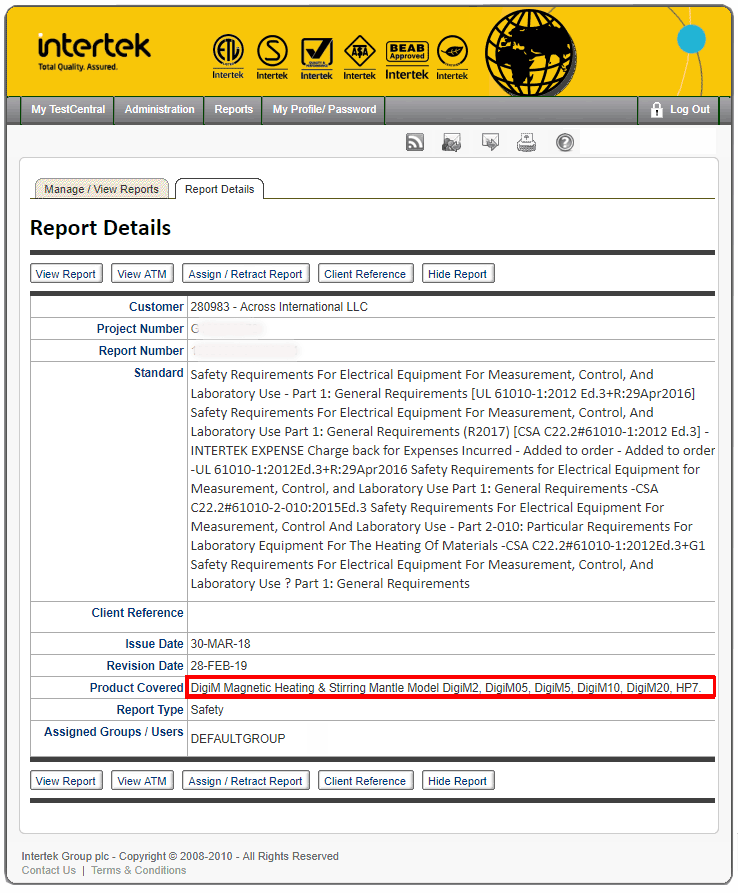

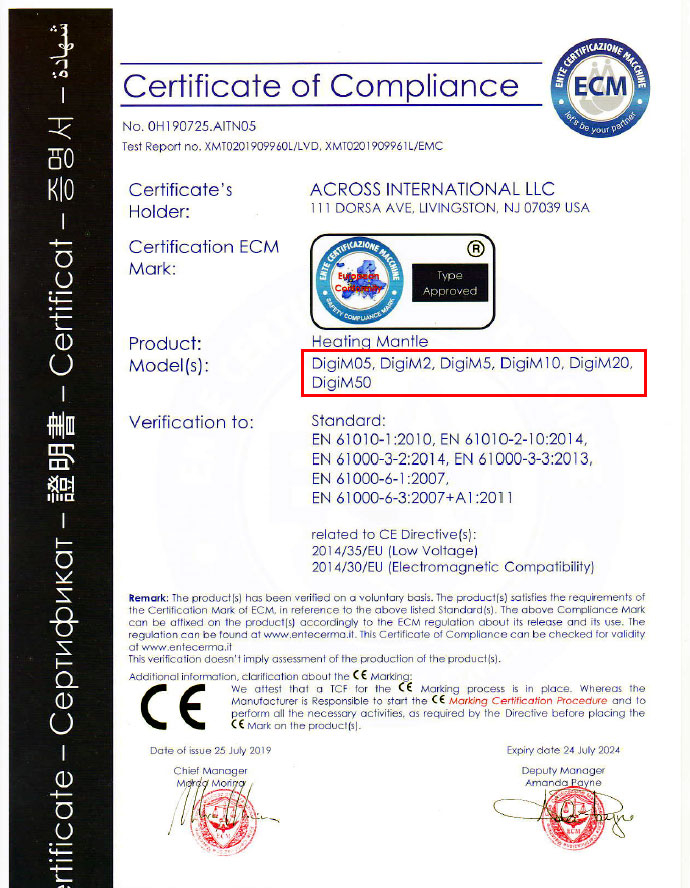

ETL tested to UL and CSA standards (optional), CE (standard)
Warranty
One year
