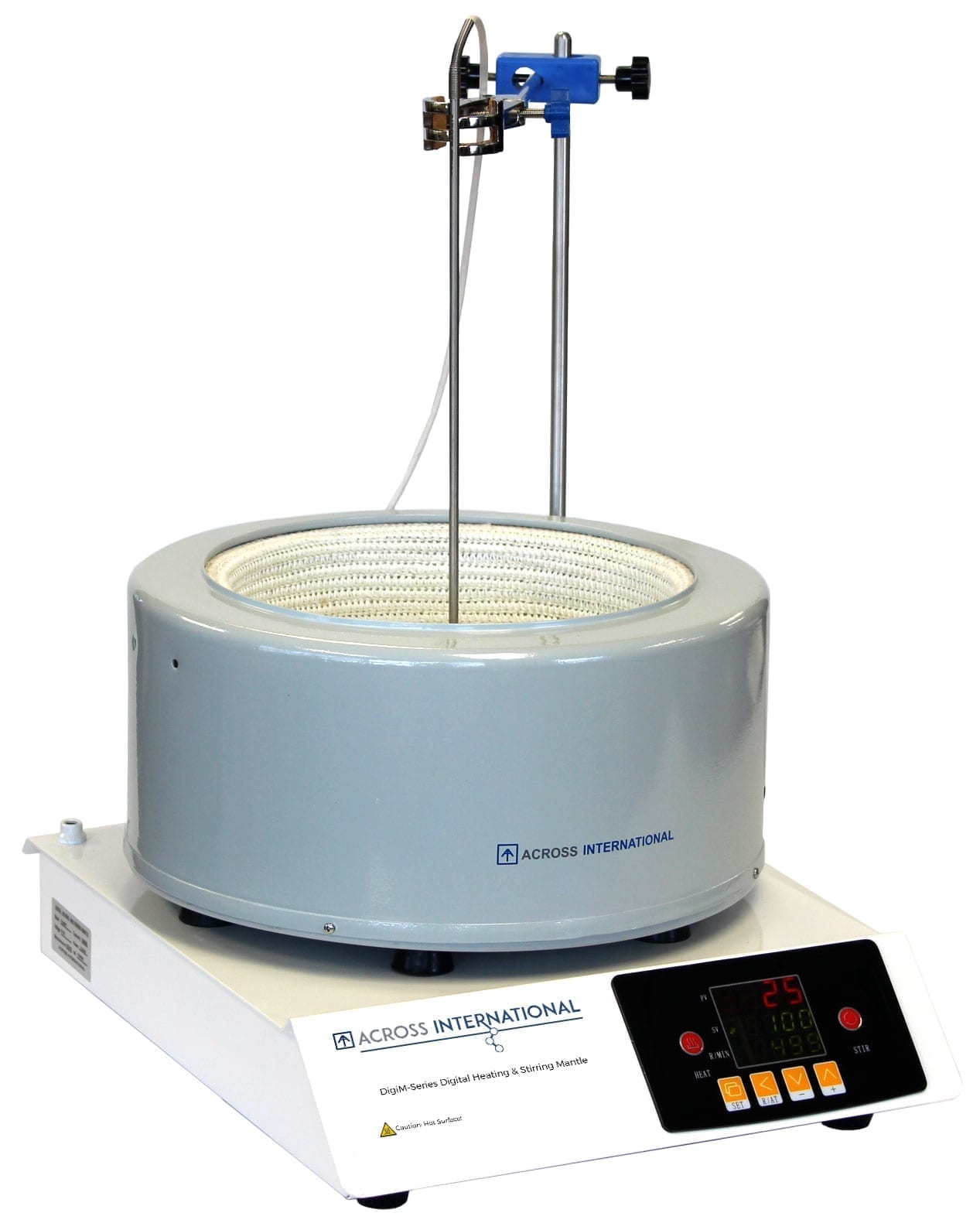

Ai DigiM 5L 300°C 2000 RPM PID Controlled Digital Heating Mantle


Two sets of thermocouples allows you to detect heater or material temperatures. 110V or 220V. UL/CSA certification available.

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.



 Electrical requirements  110V 60Hz 1-Phase, 1100 watts, 12A
220V 50/60Hz 1-Phase, 1100 watts, 6A
 Ambient to 300°C
 Stirring  Min. speed: 110 rpm, max. speed: 2000 rpm
Motor power: 40 watts
Motor type: brushless DC motor
 Controller  PID control with digital temperature and rotation speed display
 External thermocouple  Type: PT100
Cable length: 43 inches
Stainless steel probe length: 15 inches
Stainless steel probe diameter: 5 mm
 Flask holder  Maximum flask capacity: 5 liters
Top opening diameter: 9 inches
Depth: 5.5 inches
 Dimensions (WxDxH)  Unit: 13.5 x 17 x 10 inches, shipping: 20 x 16 x 16 inches
 Weight  Unit: 22 lbs, shipping: 32 lbs
 Safety  Thermocouple failure protection
 Certification  UL/CSA (optional), CE (standard)
 Warranty  One year


Standard package

 Part description  Quantity
Part image
 Ai DigiM 5L digital heating & stirring mantle 1 set
 External temperature probe 1 pc
 Internal temperature plug 1 pc
 Boss head 1 pc
 Stainless steel support rod (15 inches) 1 pc
 PTFE coated stir bar 2 pcs
 4 prong stainless steel clamp opens to 3 1/2″ 1 pc
 User’s manual 1 pc

Additional information

Weight 32 lbs
Dimensions 20 × 16 × 16 in
