Description
Model
G04h
Electrical requirements
110V ( /-10%) 60Hz 1-Phase 680W 6A
Power consumption
5.5 kW/day
Performance
Temperature range: -40°C to -86°C Time from ambient to -86°C: 4 hours Uniformity: ±4°C Time from -86°C to -50°C with door close (ambient 25°C): 2 hours

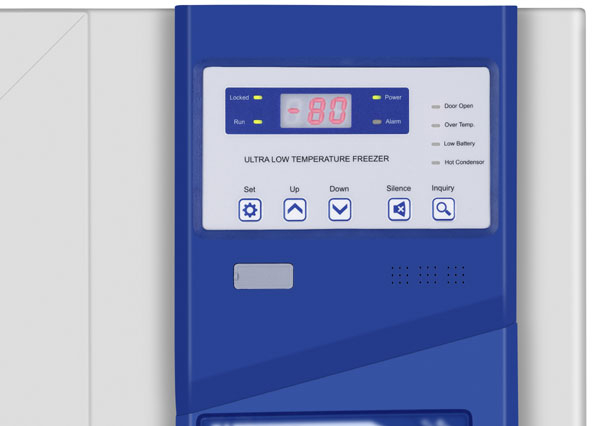

Controller
– Style: microcomputer controlled with analog display – Range -40°C to -86°C – Step: 1°C – Thermo sensor: PT100 – Displays: internal temperature, ambient temperature, input voltage, error code – Indicators: Locked, running, power, alarm, door open, over temperature battery low, condenser clean
Compressor
Make: SECOP (formerly known as Danfoss), Germany Style: direct cooling Power: 115V 60Hz 1-PHASE, 0.54HP Number of compressors: one HC refrigerants: R600A, R1150 and R50

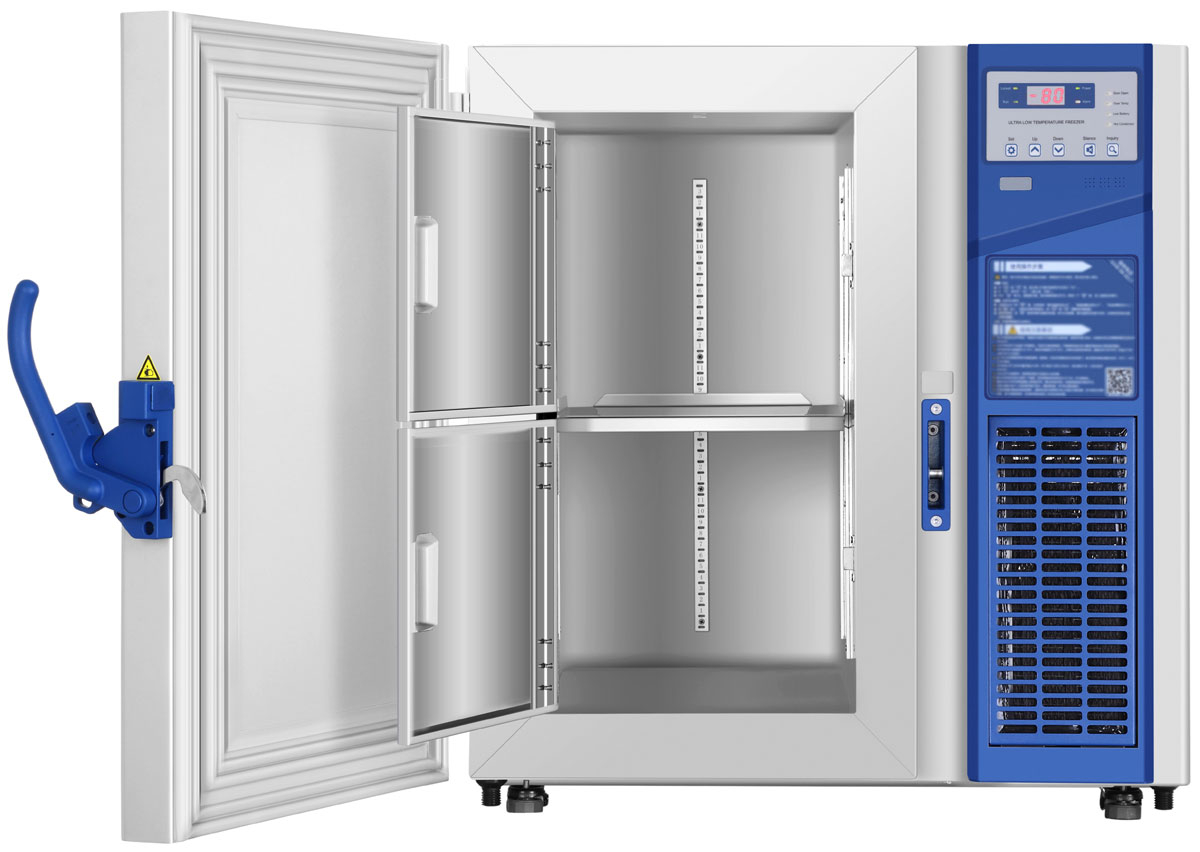

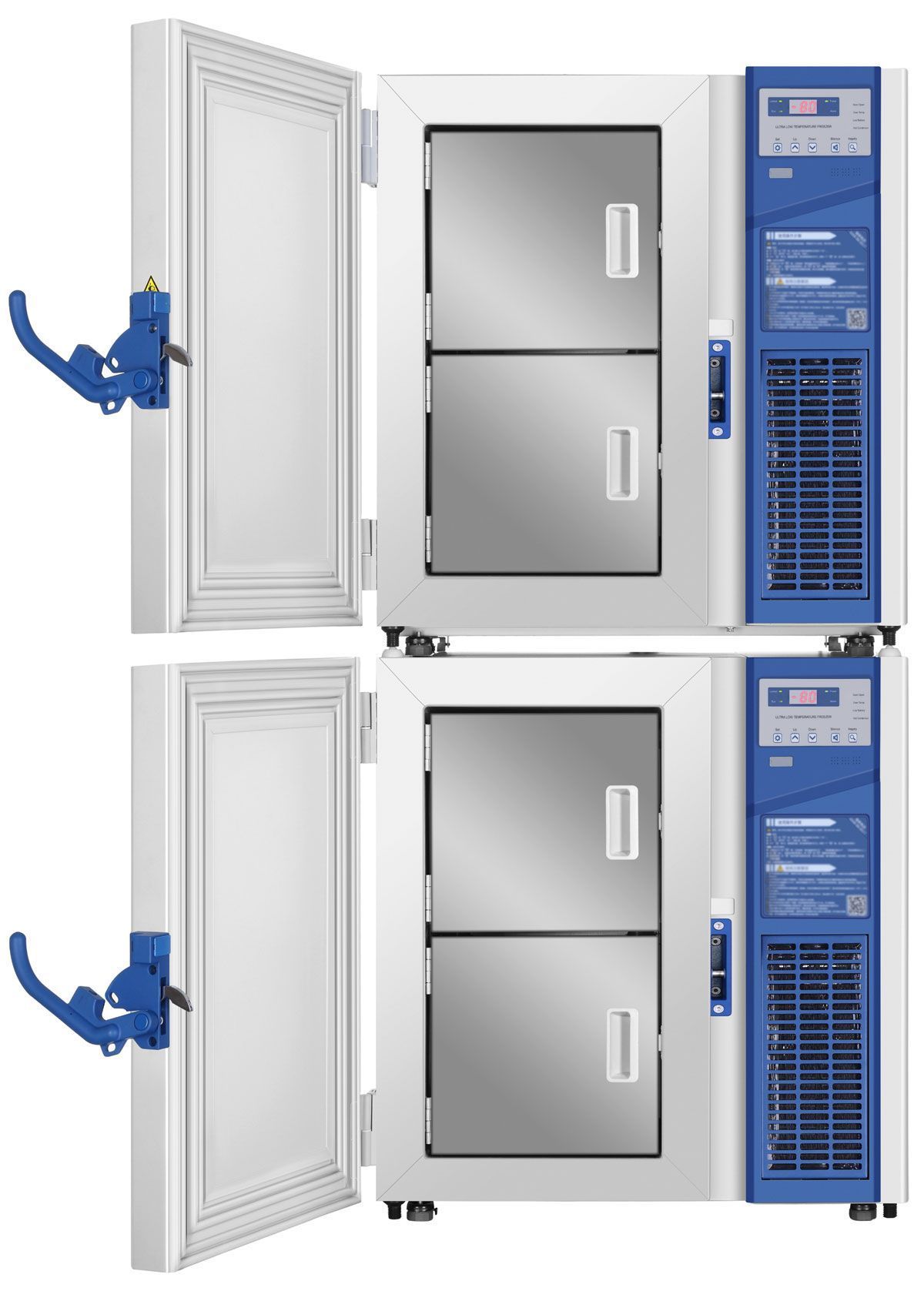

Chamber
Dimensions: 13 x 19.5 x 24.5″ (WxDxH) Material: powder coated steel Effective capacity: 3.5 Cu Ft Insulation: VIP (Vacuum Insulated Panel)

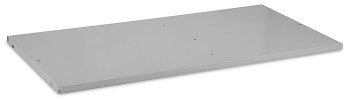

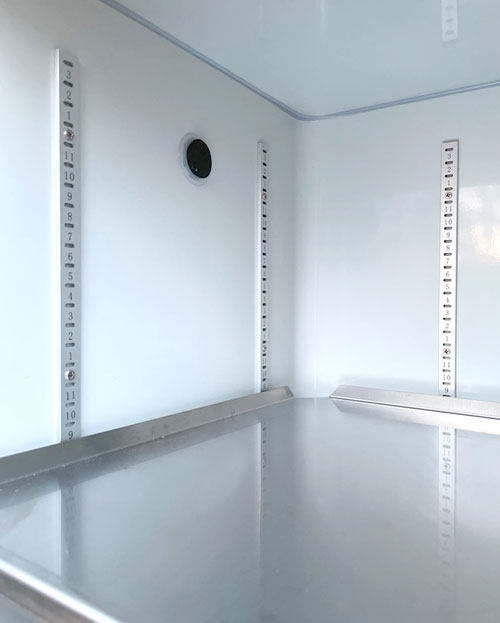

Shelf
Come with unit: one adjustable shelf (2 compartments) Material: 304 stainless steel

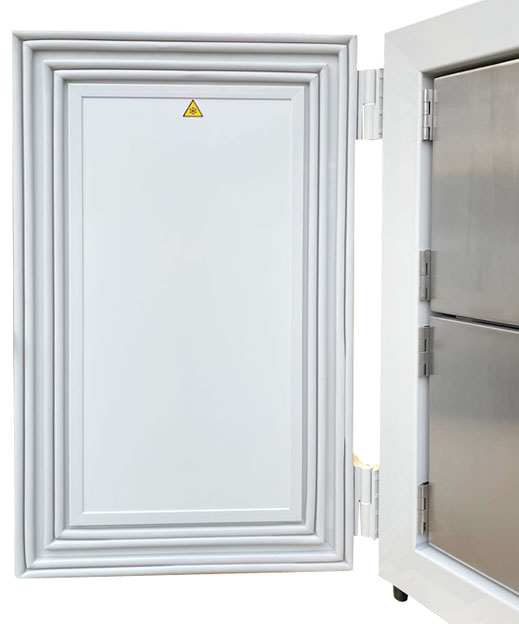

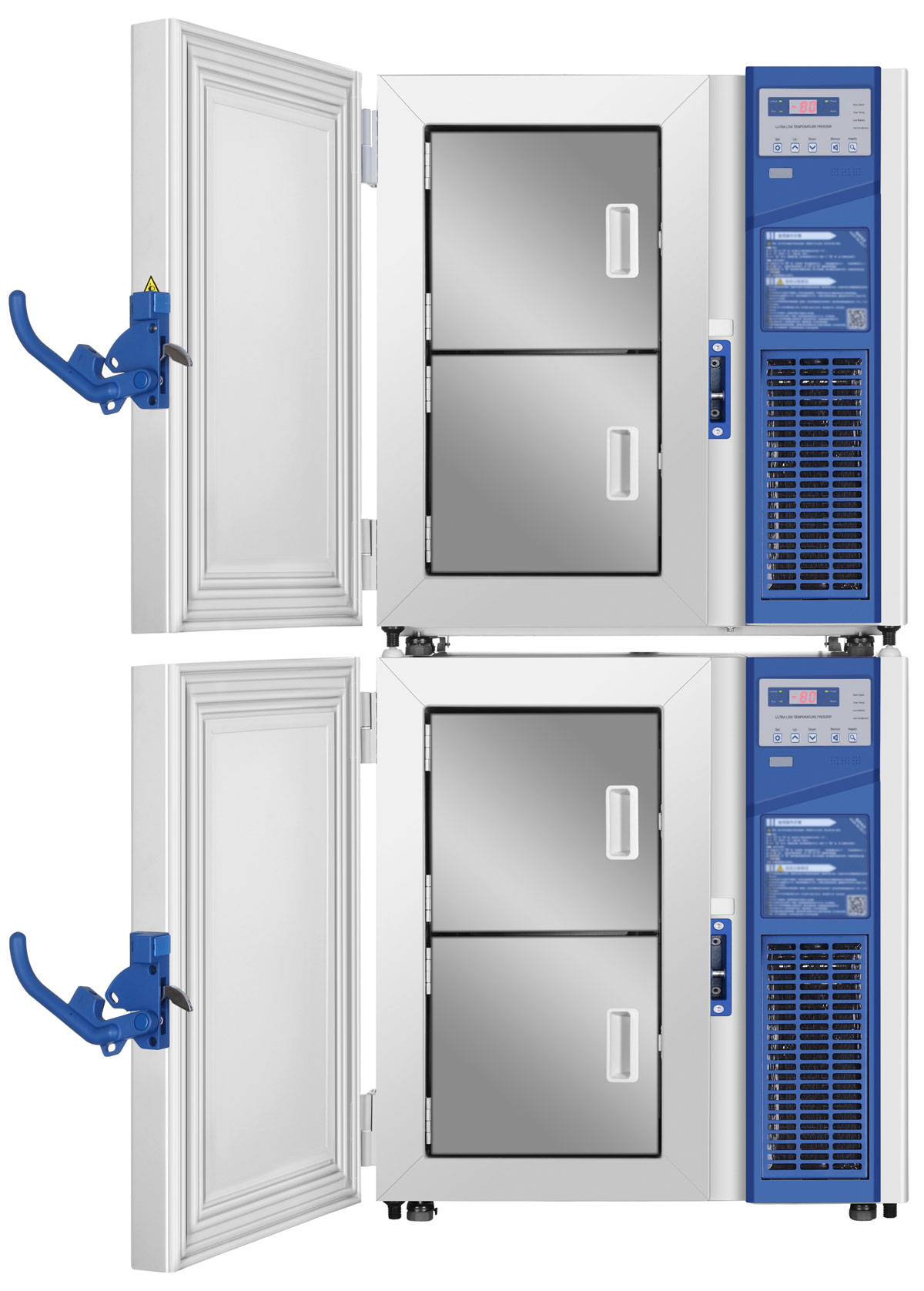

Door and gasket

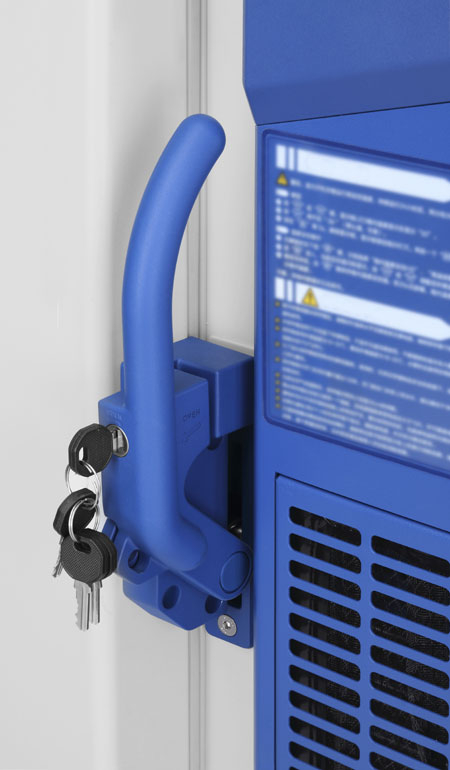

Inner door: two, stainless steel External door: one, with four layers of silicone sealing gaskets, lock-able
Access port
One
Noise level
46 dBA

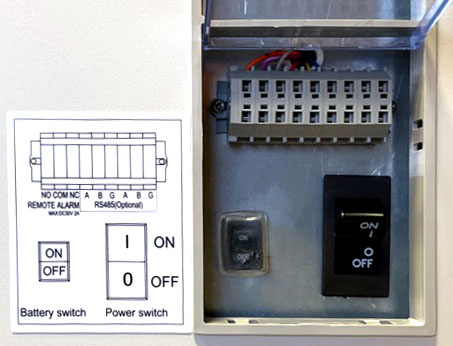

Communication
Standard: RS-485, USB (stores 15 years of data for compliance purpose) Optional: 4-20mA transmitter
Working environment
– Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) – Humidity: <80% Rh – Altitude: < 2000 m / 6561 Ft – Stable, well-ventilated platform with no excessive dust – Keep freezer at least 12 inches from any walls or ceiling – Use dedicated power, do not share outlet – Extension power cable should be less than 10 feet is required – Freezer and power outlet should be grounded properly – Avoid direct sunlight, water spill and do NOT use freezer outdoor – Clean condenser fins and remove frost inside chamber at least once a month – Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system
48 hours (for controller display and alarms only)

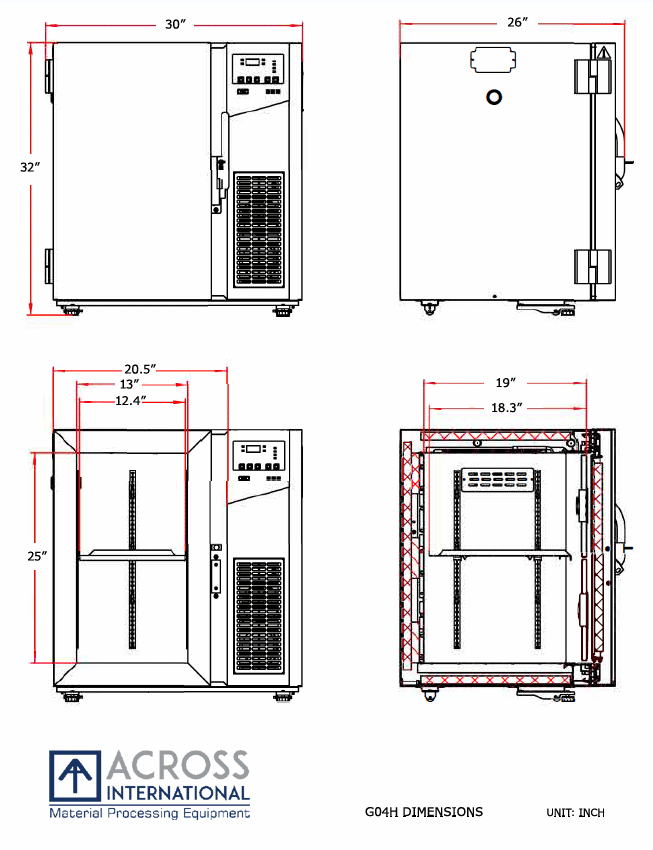

Unit/shipping weight & dimensions
240 Lbs / 300 Lbs 30 x 26 x 32″ / 33 x 29 x 35″ (WxDxH)
Safety
Compressor over-temp protection Ambient over-temp protection Compressor power surge delay protection Password protection Sensor failure protection Over-temperature and low-temperature protection Power failure protection Low battery, door open, condenser clogging, system failure alarms External door with lock Ground protection

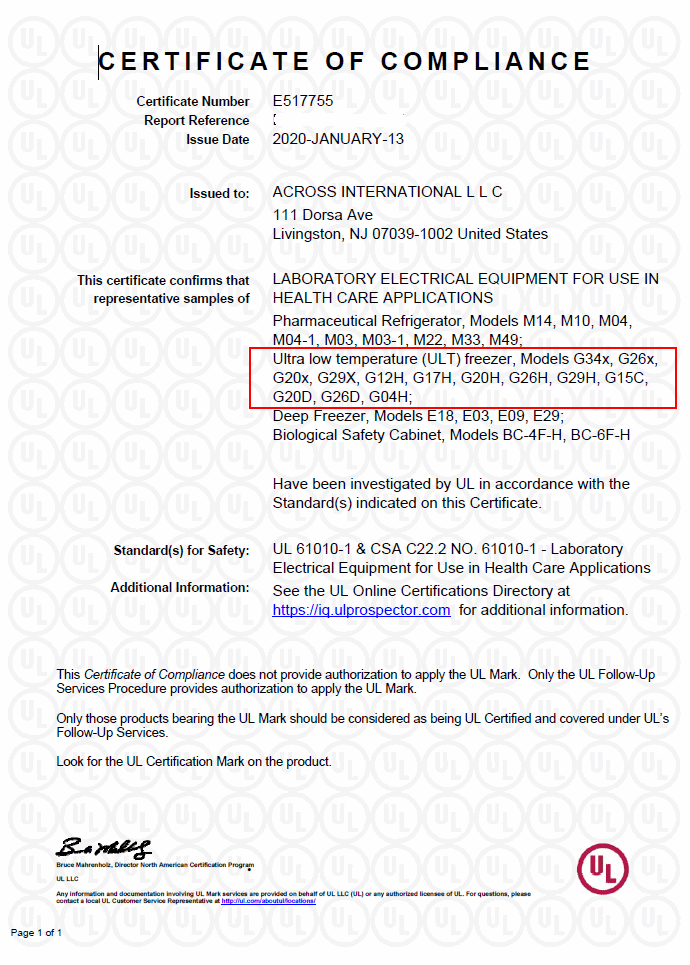

Compliance
UL 61010-1 CSA C22.2
Warranty
2-year full service, 3-year parts, 5-year compressor
