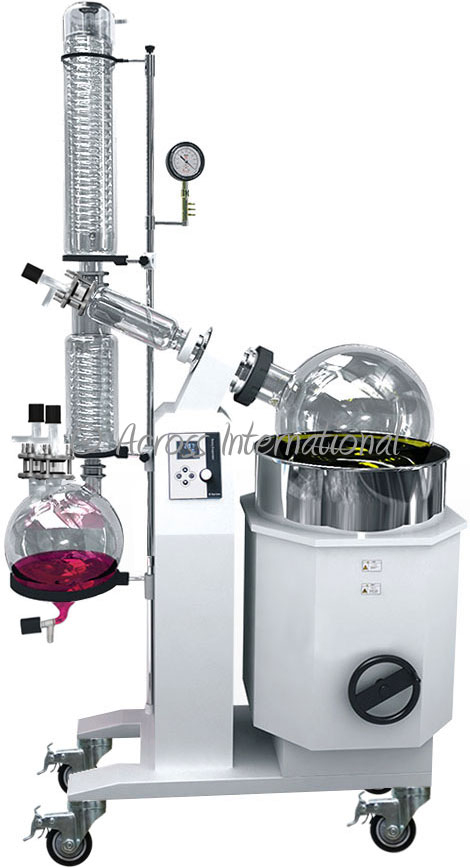

Description
Electrical requirements
220V 50/60Hz single phase, 29A, 6400 watts (rotation speed: 400 watts)
Glass material
High borosilicate glass 3.3
Evaporating flask
Capacity: 13.2 gallon (50 liters or 1.8 cu ft) Maximum load: Not to exceed 60% of the flask’s capacity Sealing flange: 4.9″ diameter Rotation speed: 10 to 110 rpm Evaporating speed: 2 gallon/hour (water), 4 gallon/hour (alcohol)
Receiving flask
5.28 gallon (20 liters or 0.7 cu ft)

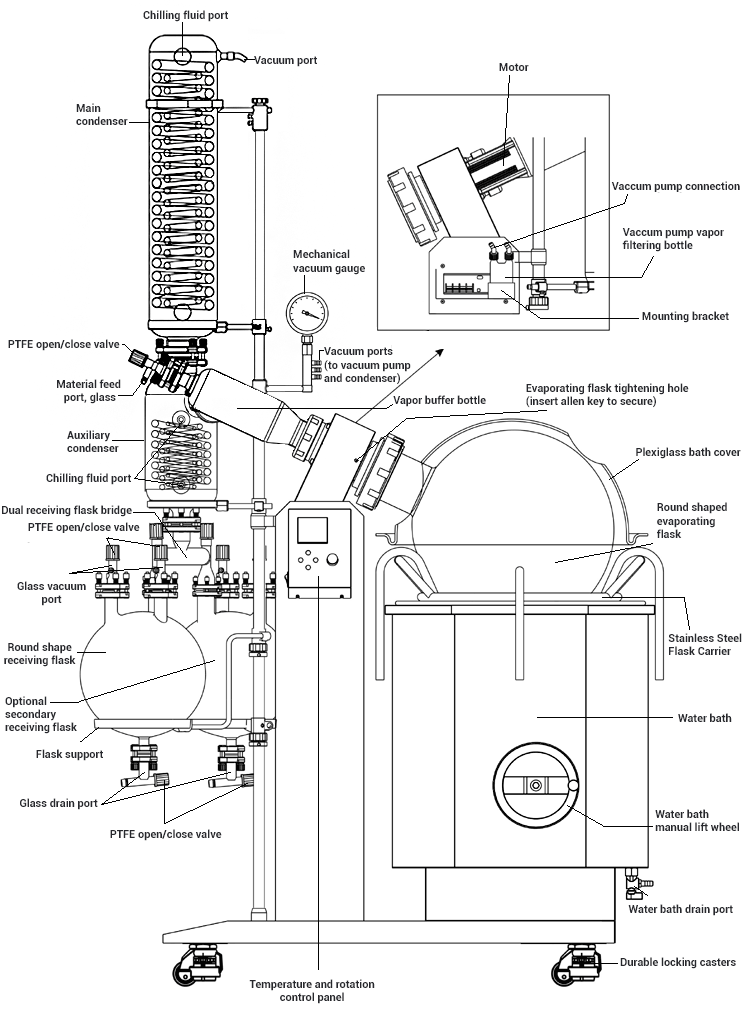

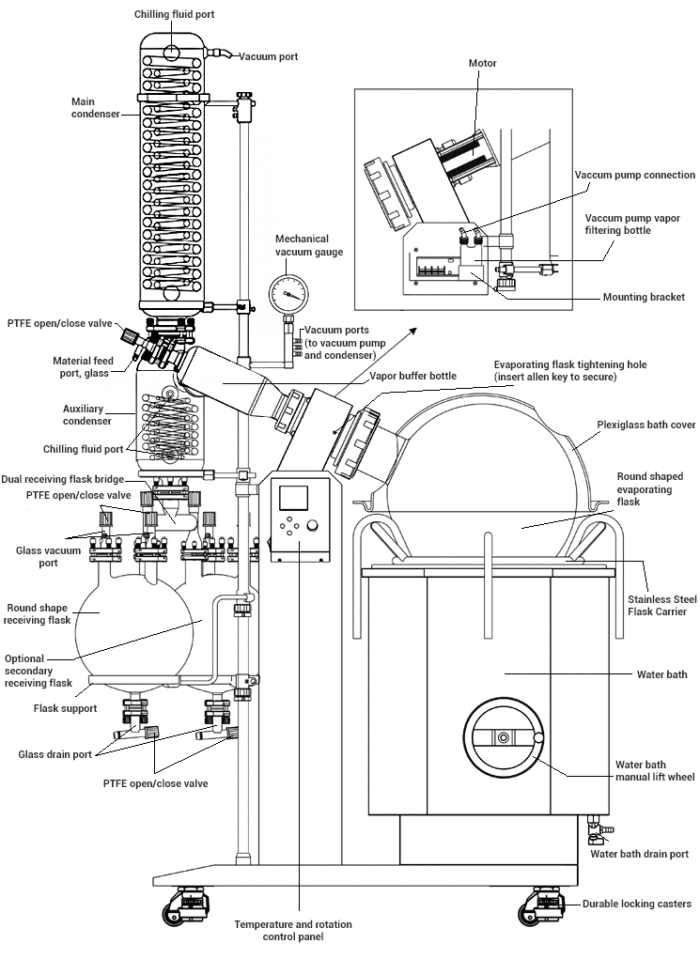

Condenser
Glassware: Main auxiliary triple-circulating cold traps, vertical Chilling fluid connection: 3/8″ hose barb x 4 (2 on main 2 on auxiliary) Condensing surface Main condenser: 11,500 cm2 or 12.4 sq ft Auxiliary condenser: 4,000 cm2 or 4.3 sq ft
Working environment
5 to 95°F
Water bath
Temperature range: ambient to 99°C (210°F) Temperature controller: digital Dimensions: 22.1″ diameter x 12.2″ depth Material: stainless steel Media: distilled water only Max. water level: not to exceed 1″ from the top rim of the bath Number of heaters: three Drain port: one Lifting: Motorized manual Maximum lifting distance: 9 inches
Vacuum level
< 3 torrs
Vacuum sealing
PTFE Viton gaskets
Vacuum connection
3/8″ hose barb x 1
Safety
Dry-run, over-temp shut-off, built-in circuit breakers
Unit/shipping dimensions (WxDxH)
52 x 30 x 92″ (fully assembled) / 46 x 28 x 58″ (Evaporator), 41 x 34 x 32″ (glassware)
Shipping weight
525 Lbs
Certification
ETL tested to UL and CSA standards
