Description
Electrical requirements
110V 60Hz single phase, 2300 watts, 21A or 220V 50/60Hz single phase, 2300 watts, 10.5A Rotation motor: 300 watts
Glass material
High borosilicate glass 3.3
Evaporating flask
Capacity: 1.32 gallon (5 liters) Maximum load: Not to exceed 60% of the flask’s capacity Sealing flange: 2″ diameter Rotation speed: 10 to 140 rpm Evaporating speed: 0.5 gallon/hour (water), 1 gallon/hour (alcohol)
Receiving flask
0.79 gallon (3 liter)

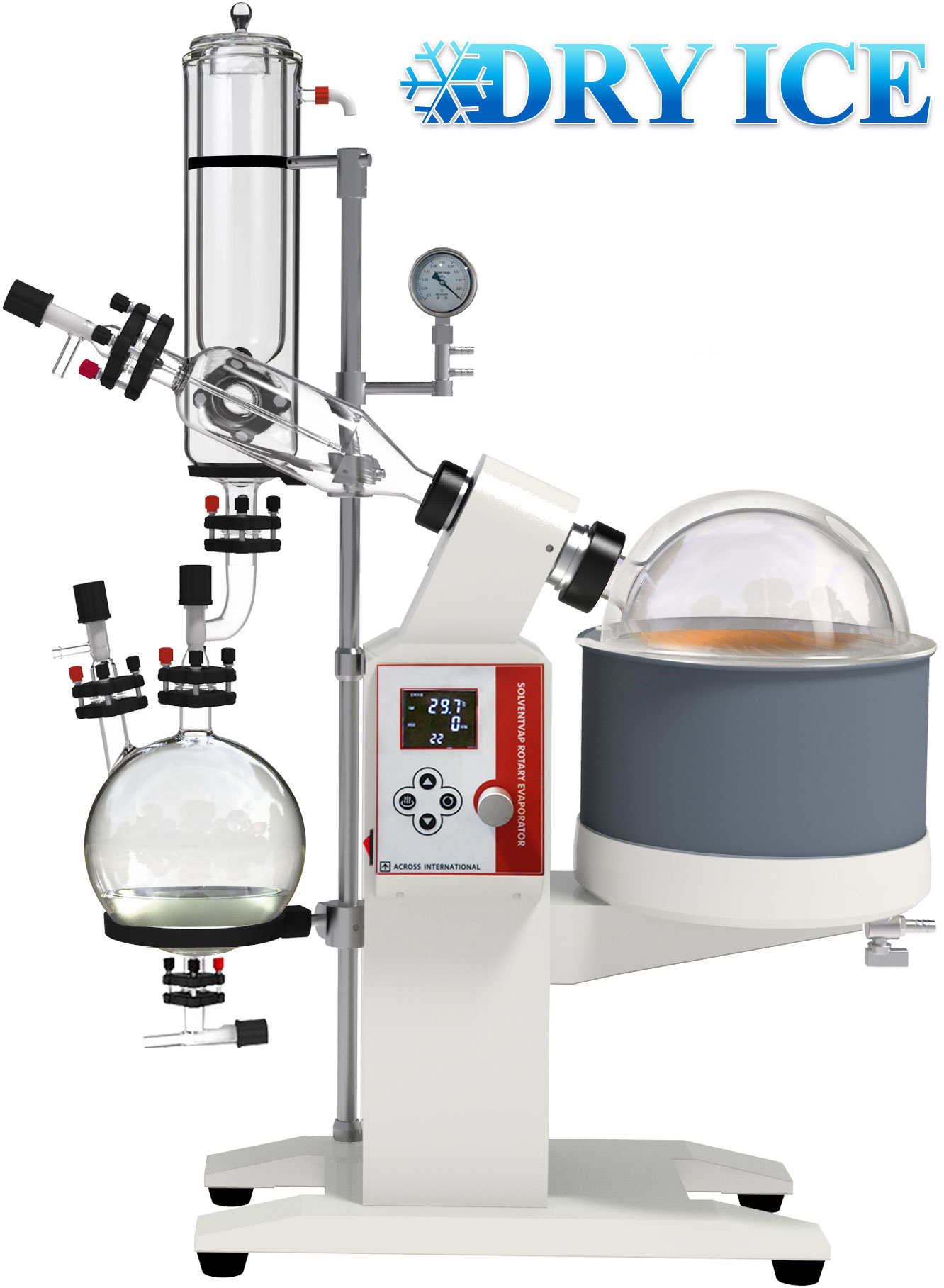

Condenser

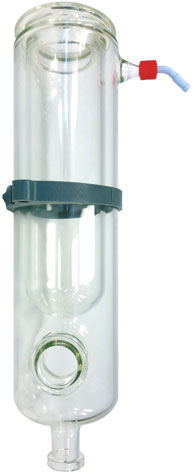

Glassware: Vertical cold trap (dry ice) condenser with lid Vacuum connection: 3/8″ hose barb x 1
Working environment
5 to 95°F
Water bath
Temperature range: ambient to 99°C (210°F) Temperature controller: digital Dimensions: 11.4″ diameter x 6.7″ depth x 9″ height Material: stainless steel Media: distilled water only Max. water level: not to exceed 1″ from the top rim of the bath Number of heaters: one Drain port: one Exterior liner: rubber Lifting: motoriezed Maximum lifting distance: 4 inches
Vacuum
Vacuum level: < 3 torrs Sealing: PTFE Viton gaskets Connection: 3/8" hose barb x 1
Safety
Dry-run, over-temp shut-off, built-in circuit breakers
Shipping weight
105 Lb (evaporator), 57 Lb (glassware)
Unit dimensions
30 x 15.7 x 42" (WxDxH)
Shipping dimensions
29 x 17 x 35" (evaporator), 22 x 22 x 22" (glassware) (WxDxH)
Download
Product brochure

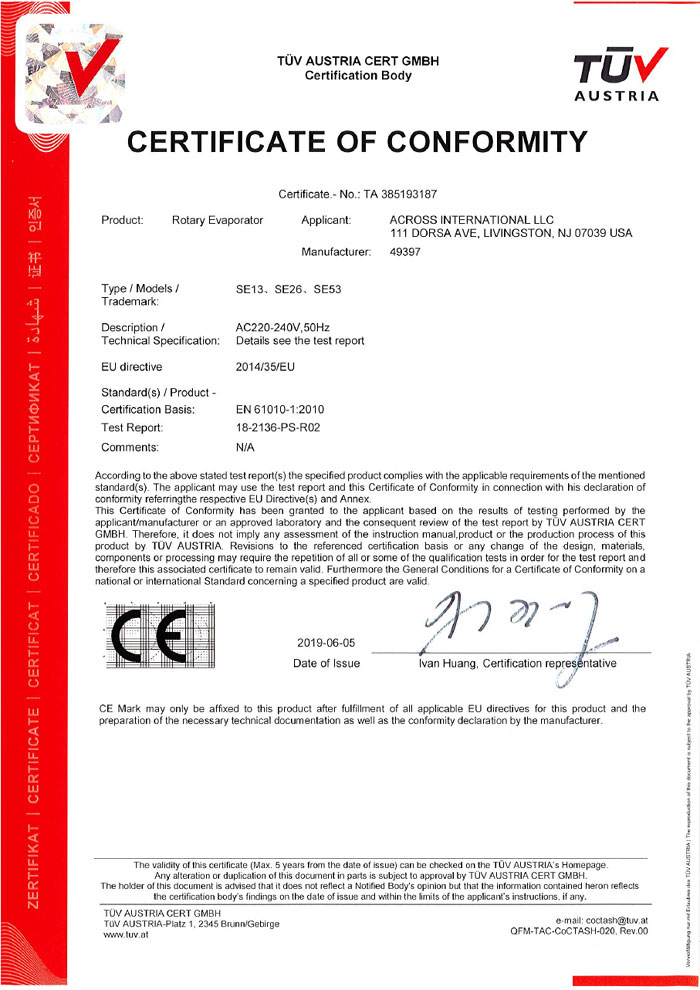

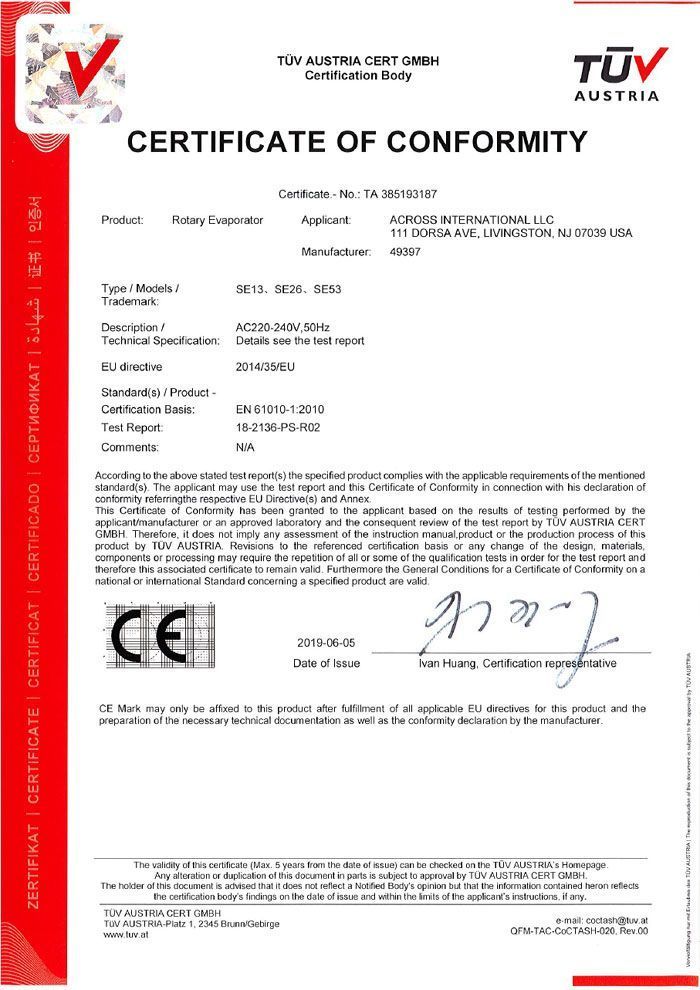

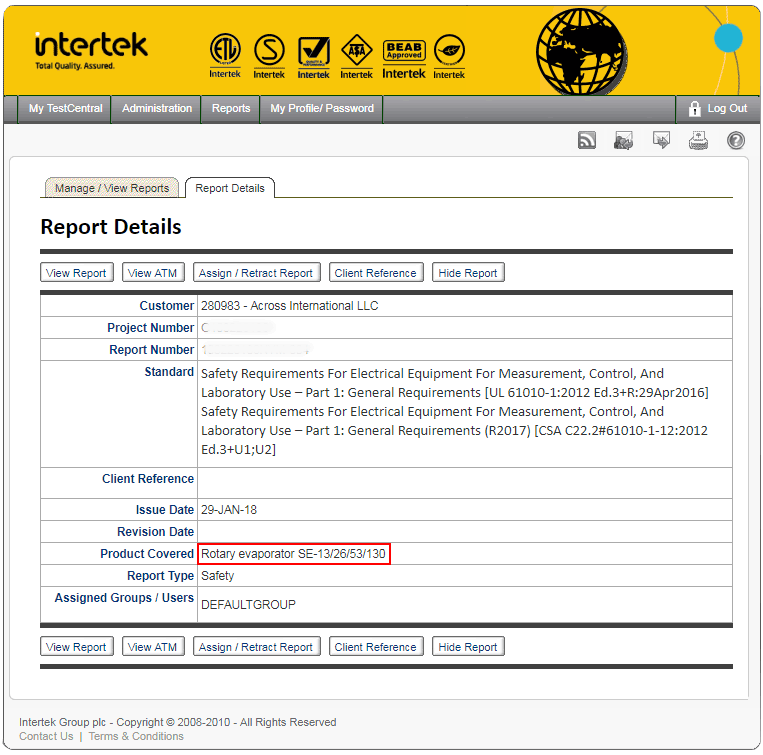

Compliance
UL 61010-1: 2012 Ed.3 R: 29 Apr 2016 CSA C22.2# 61010-1-12: 2012 Ed.3 U1; U2 (R2017) CE
