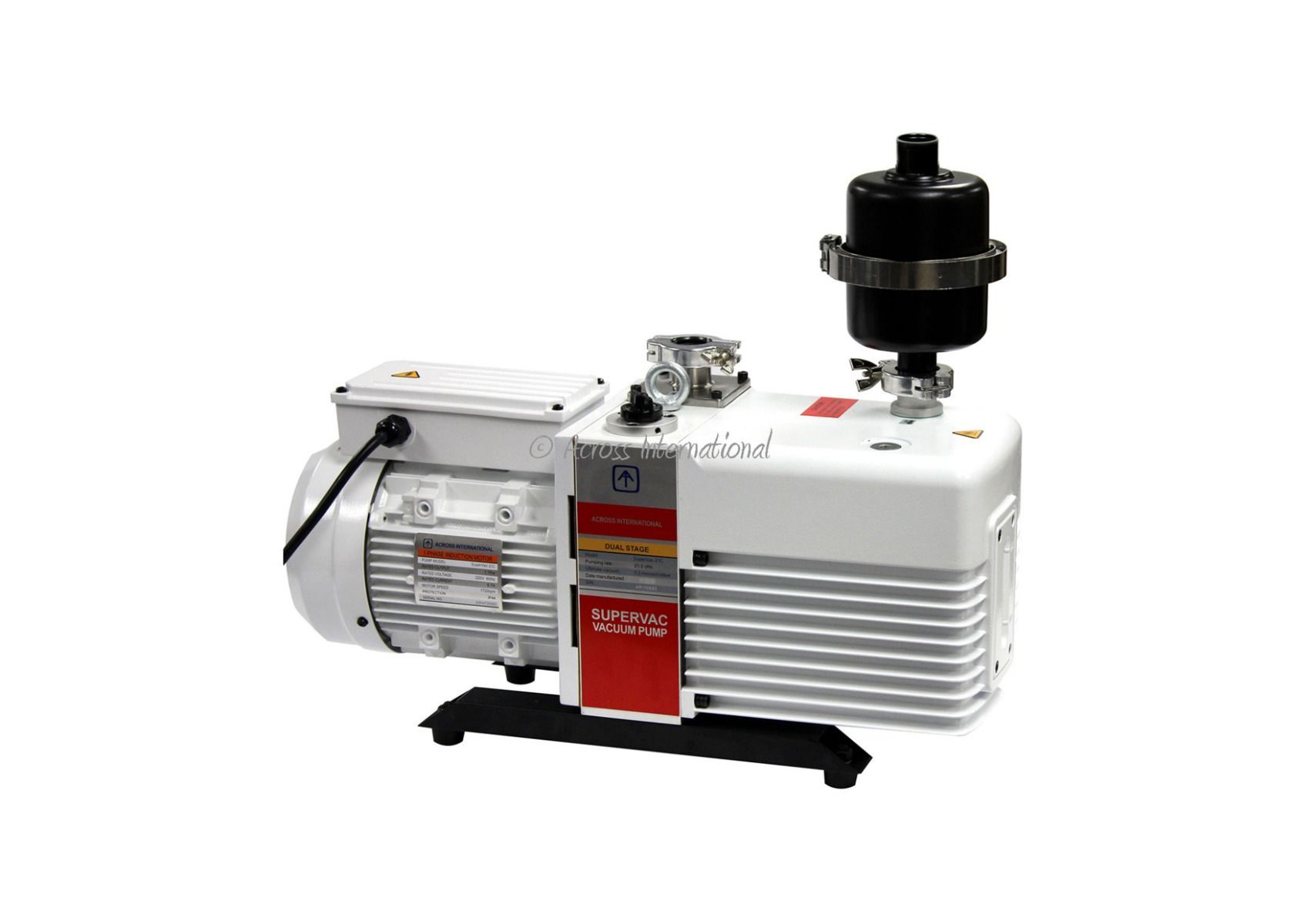

Description
Electrical requirements
115V 60Hz or 230V 50/60Hz single phase, 1100 watts

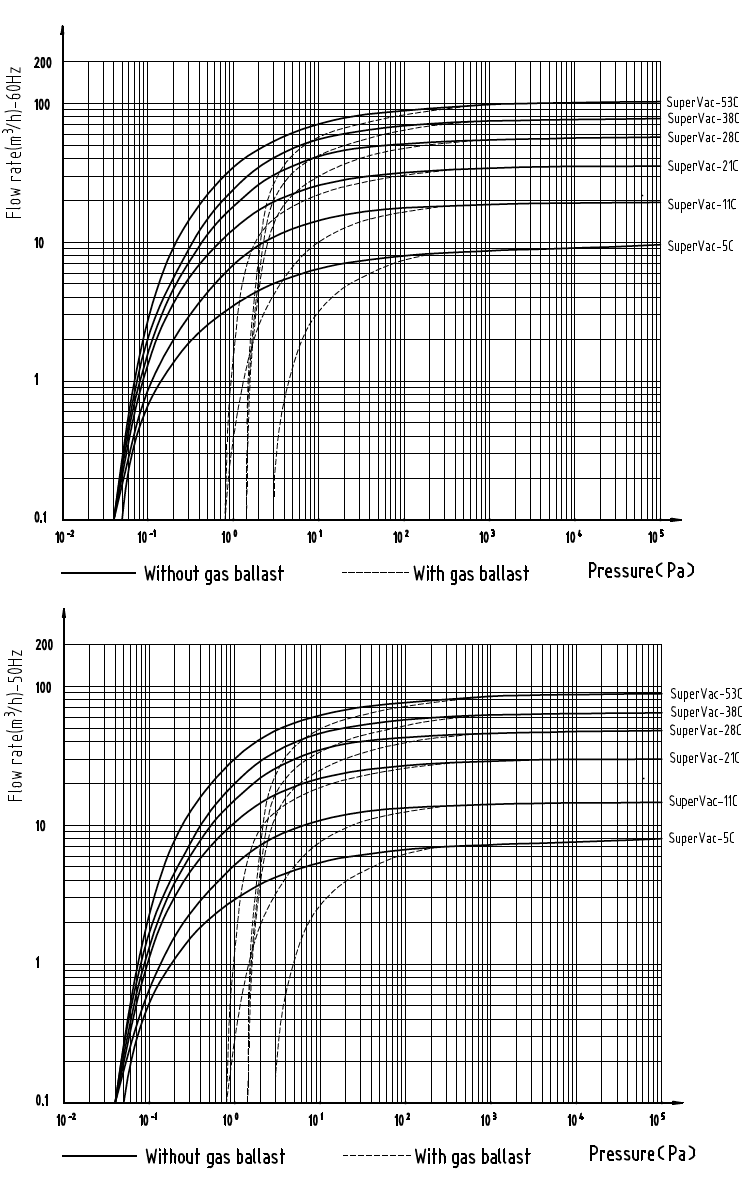

Pumping rate
21 cfm
Ultimate vacuum without gas ballast
0.3 micron/millitorr
Ultimate vacuum with gas ballast
6 micron/millitorr

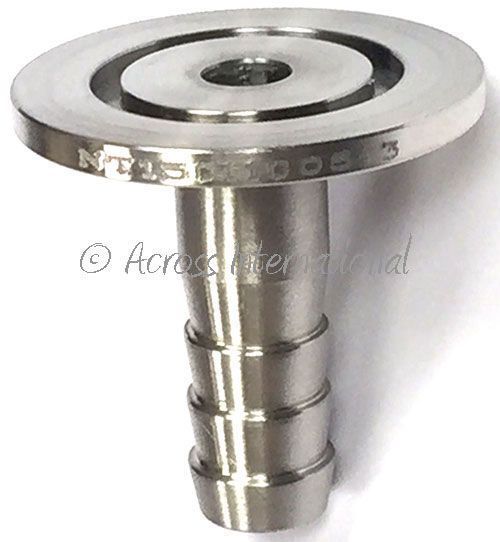

Inlet/outlet connection
KF25/NW25 flange
Oil volume
2 liter / 2.1 quart
Motor rate
1715 rpm
Working temperature
5 to 40°C
Unit/shipping dimensions (LxWxH)
21×7.5×12″ / 37x10x17″
Unit/shipping weight
80 Lb / 98 Lb

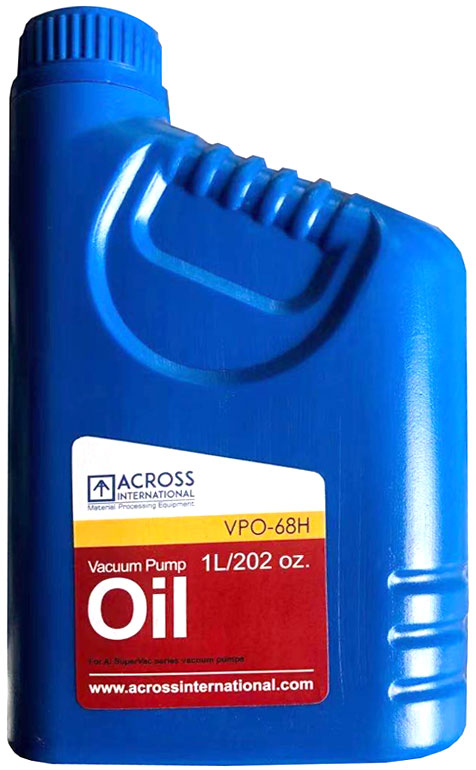

Recommended oil
Ultra-grade 19
Noise level
< 58 dB
Warranty
Two years
Download
Product brochure
Compliance

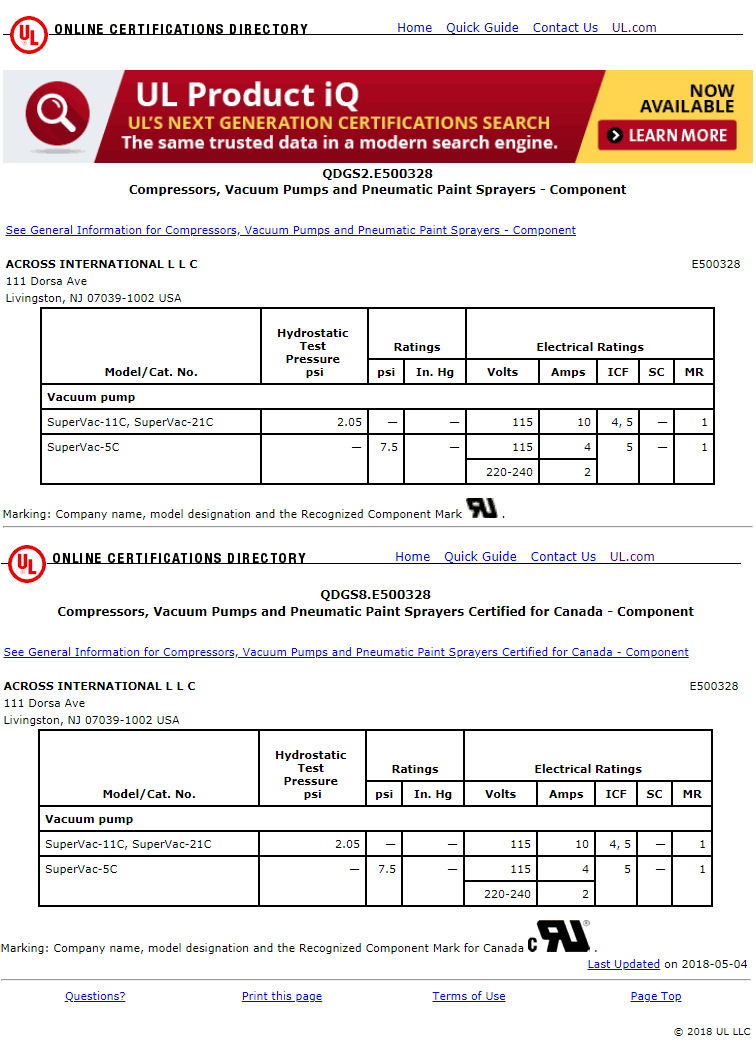

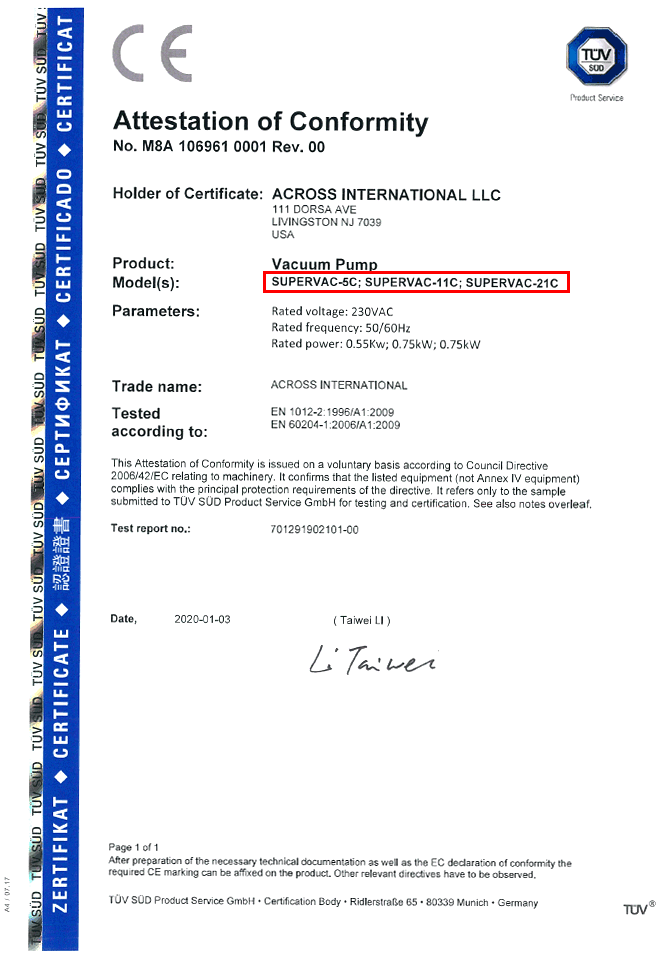

UL (E500328), CE
