C170 CO2 Incubator – 6 cu ft / 120V

7,559.00$

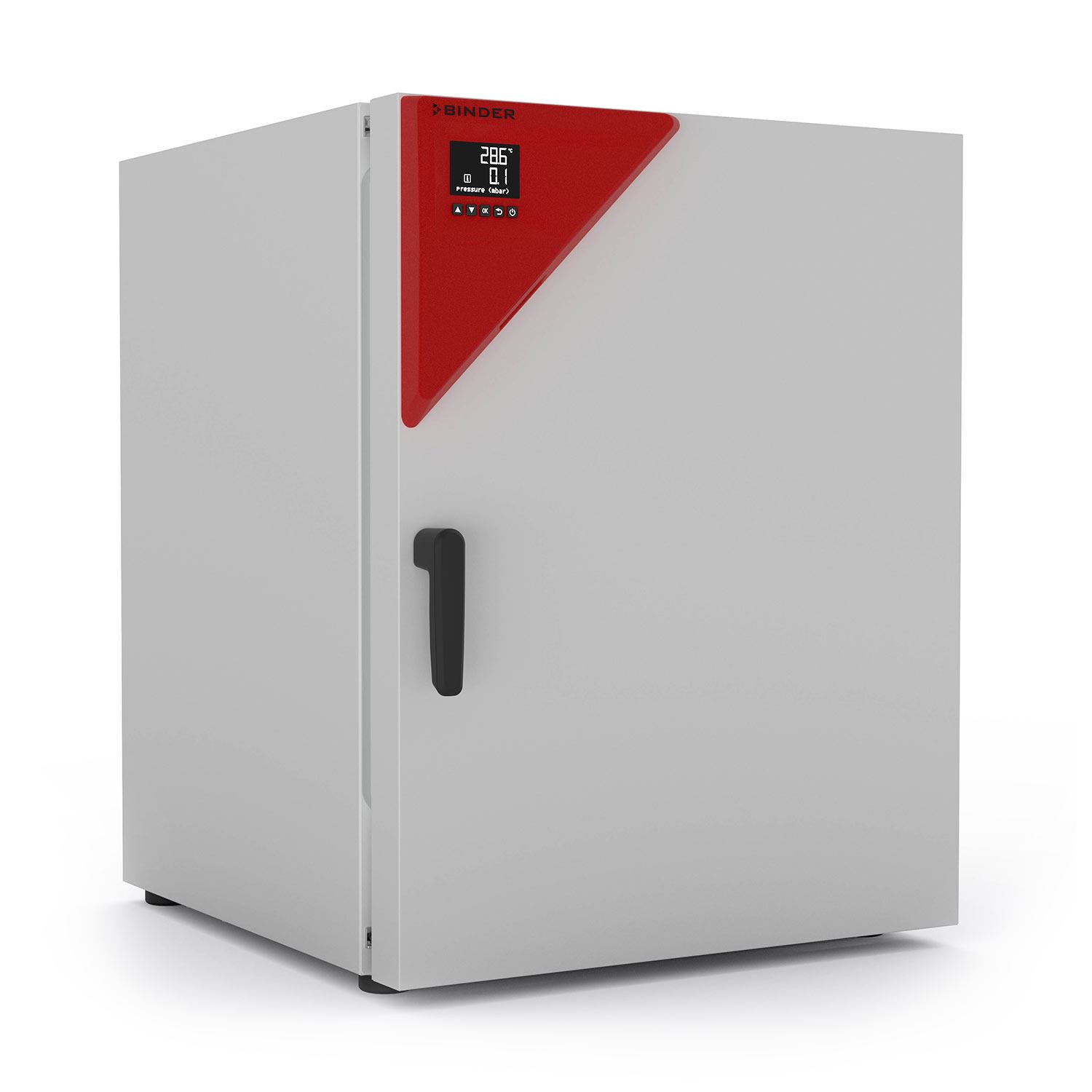

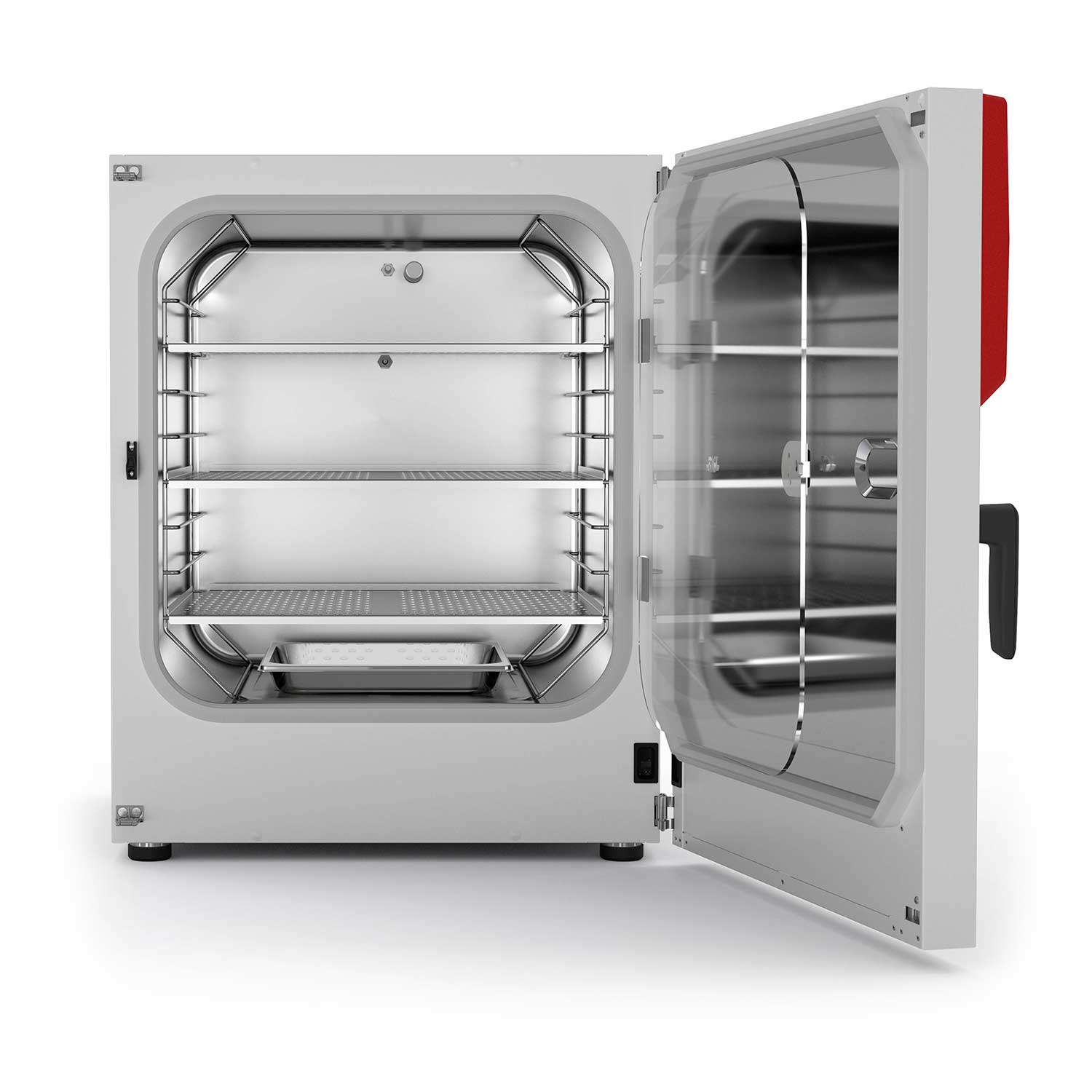

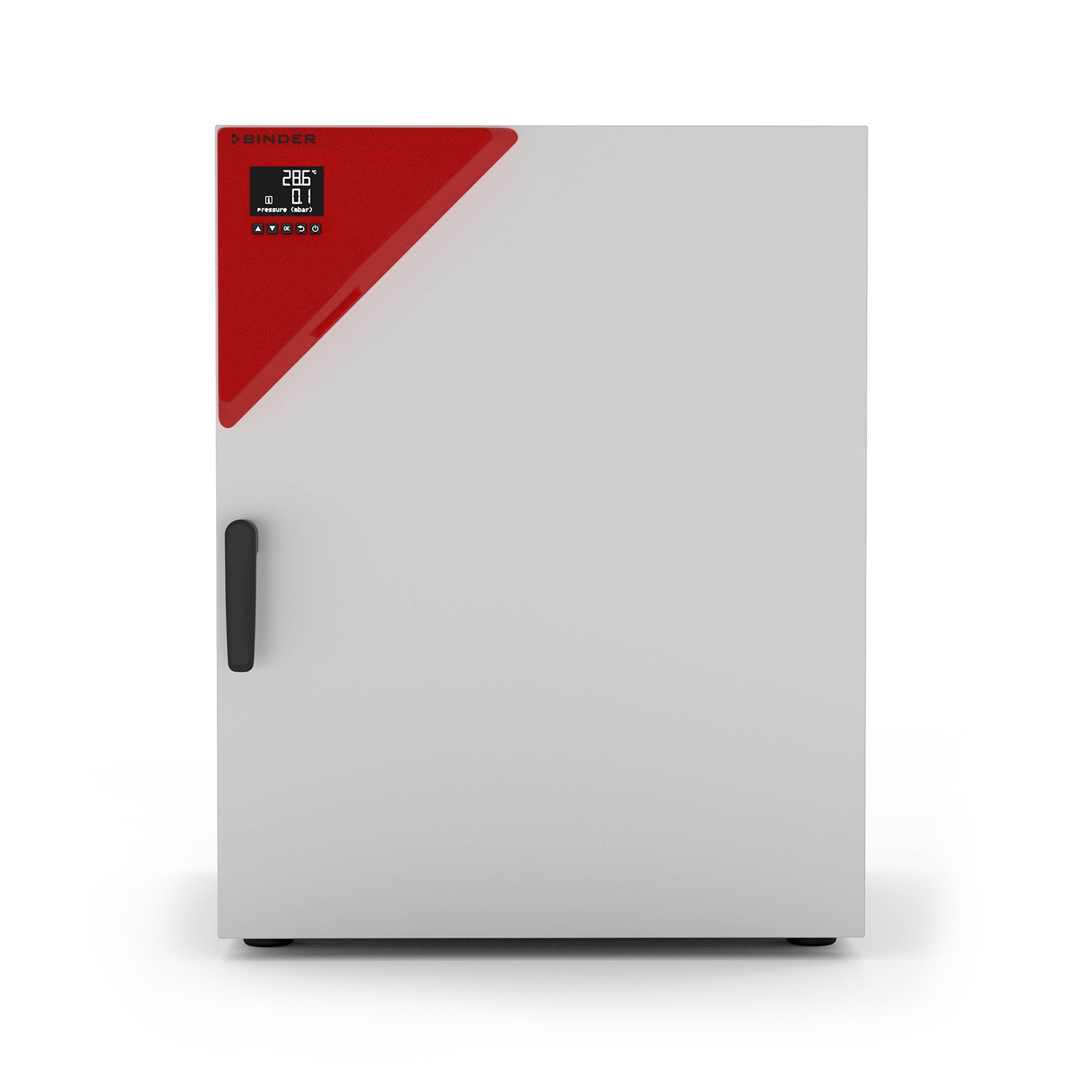

The Binder C 170 CO2 Incubator (with hot air sterilization) is ideal for routine cell cultivation applications.
The C 170 allows for contamination-free incubation by utilizing a 180°C hot air-sterilization system.
They also include highly reliable pH stability due to the drift-free infrared CO2 measurement system.

SKU: 4201194 Category:

Description

Temperature Range
7°C above ambient to 50°C

Temperature Variation at 37°C
/- 0.3

Temperature Fluctuation
/- 0.1

Recovery time after 30 seconds door open at 37°C
6 mins

Humidity Range
90 – 95% RH

CO2 Range
0 – 20 % Vol.

CO2 Measurement
IR

CO2 Recovery time after 30 seconds door open at 5% Vol.
7 mins

Rated Voltage
120

Power Frequency
60 Hz

Nominal Power
1.1 kW

Unit Fase
10 A

Phase (Nominal Voltage)
1~

Outer Width
29.16 in.

Outer Height
34.28 in.

Outer Depth
28.17 in.

Wall Clearance Back
3.94 in.

Wall Clearance Sidewise
1.97 in.

Inner Doors
1

Unit Doors
1

Internal Width
22.06 in.

Internal Height
23.64 in.

Internal Depth
19.7 in.

Interior Volume
5.9 cu.ft.

Net Weight of Unit
243 lbs

Load Per Rack
22 lbs

Energy Consumption at 37°C
90 Wh/h

Number of Shelves Standard
3

Number of Shelves Max
8

Minimum risk of contamination due to 180°C hot air-sterilization system
Stable pH values due to the drift-free CO2 IR sensor technology
Can produce high humidity of up to 95% RH
Simple and fast cleaning thanks to a seamlessly deep-drawn inner chamber
Temperature Range: room temperature plus 7°C to 50°C
Humidity Range: up to 95% RH
Auto-sterilization with hot are at 180°C
Humidification system with condensation protection
CO2 gas mixing jet with Venturi effect
CO2 sensor with infrared technology
3-Digit display with 7-segment LED’s
Tightly sealed inner door made from tempered safety glass
Seamless, stainless steel inner chamber
3 perforated stainless steel shelves

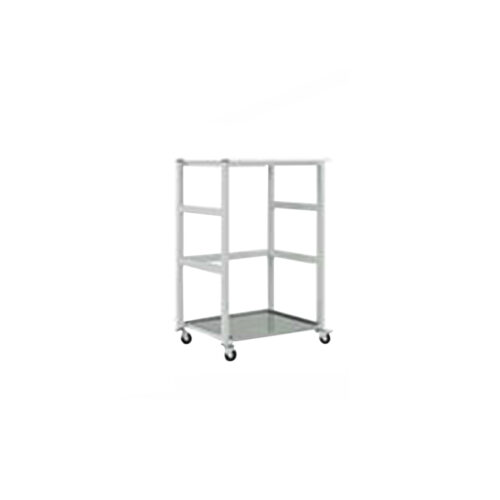

Stacking adapter can be purchased to make units stack-able
Troubleshooting system with visual and audible alarms
Zero-voltage alarm contact

Temperature Range
7°C above ambient to 50°C

Temperature Variation at 37°C
/- 0.3

Temperature Fluctuation
/- 0.1

Recovery time after 30 seconds door open at 37°C
6 mins

Humidity Range
90 – 95% RH

CO2 Range
0 – 20 % Vol.

CO2 Measurement
IR

CO2 Recovery time after 30 seconds door open at 5% Vol.
7 mins

Rated Voltage
120

Power Frequency
60 Hz

Nominal Power
1.1 kW

Unit Fase
10 A

Phase (Nominal Voltage)
1~

Outer Width
29.16 in.

Outer Height
34.28 in.

Outer Depth
28.17 in.

Wall Clearance Back
3.94 in.

Wall Clearance Sidewise
1.97 in.

Inner Doors
1

Unit Doors
1

Internal Width
22.06 in.

Internal Height
23.64 in.

Internal Depth
19.7 in.

Interior Volume
5.9 cu.ft.

Net Weight of Unit
243 lbs

Load Per Rack
22 lbs

Energy Consumption at 37°C
90 Wh/h

Number of Shelves Standard
3

Number of Shelves Max
8
