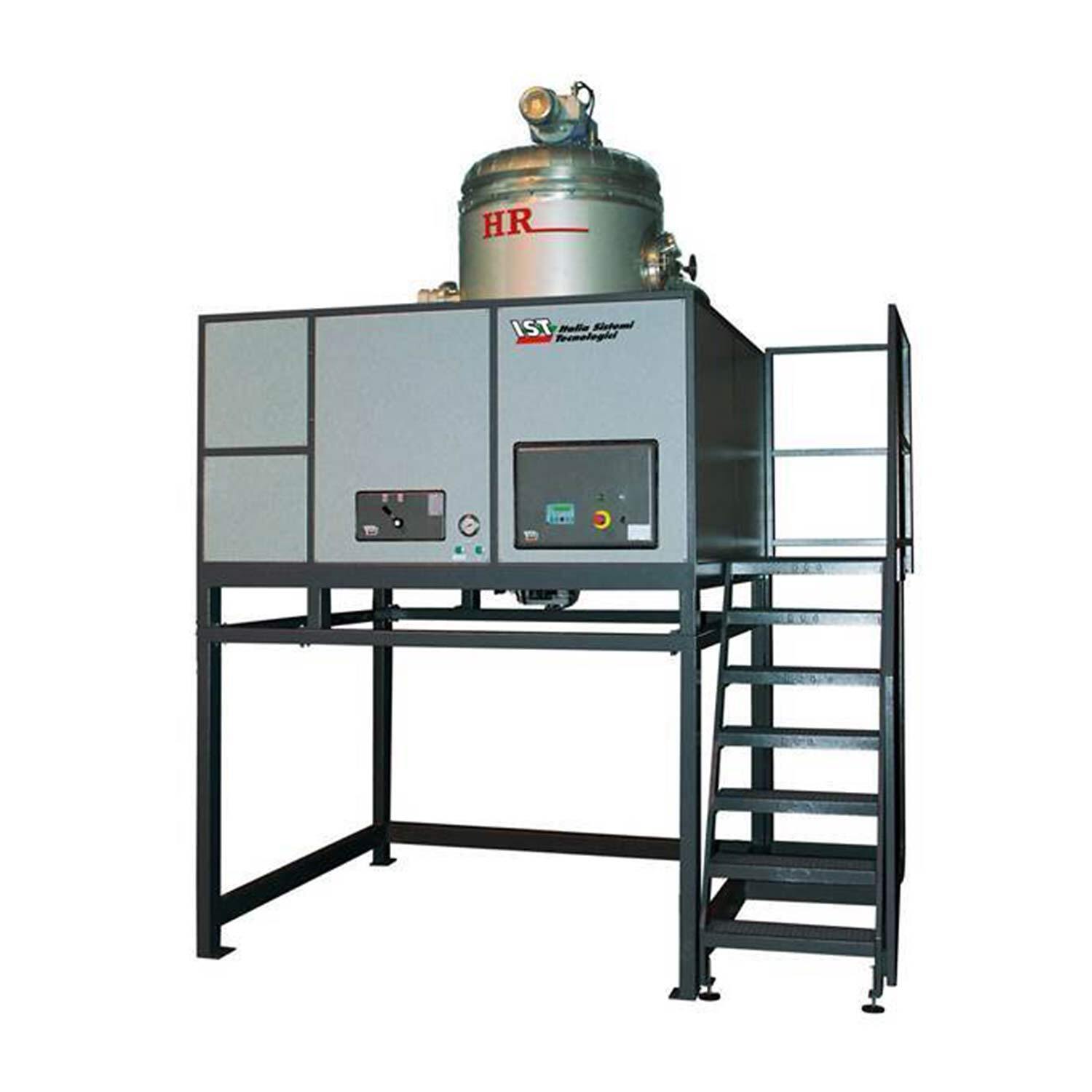

Continuous Solvent Recovery System (CSRS) – 600 Liter

Contact for Pricing

Are your rotary evaporators providing enough solvent recovery for your growing lab? Our Continuous Solvent Recovery Systems come in two, large-format sizes: 600L & 1200L.
Not only do these machines have the ability to safely recover large amounts of solvent rapidly, but they also require minimal user input during operation. The CSRS separates high-boiling point constituents from a solvent and recovers the solvent for later use.

SKU: 4201562 Category:

Description

Unit:
600 Liters
1200 Liters

Gal/Hour (GPH)
75
125

Size (L x W x H in.)
112” x 91” x 169”
153” x 91” x 169”

Amps
58
87

Chiller Amps
108
110

The unit is capable of running continuously with minimal operator intervention.
User-selectable height allows the system to fit into a variety of lab spaces.
The thermal oil jacket and electric heater ensure smooth and even heating of the solvent.
Automatic filling means your unit will be continually “topped off”, and you can run automatic batches back-to-back without a user being present.
Solvent level sensors give you precise control over the amount of solvent, and they pump solvent in and out of the unit.
The PLC controller lets you regulate all process functions, and it has multiple redundant safety features including an alert/alarm if something goes wrong.
Vacuum assistance creates a vacuum in the boiling chamber, which lowers the temperature needed to boil high-boiling-point solvents.
All systems are UL2208 certified by ETL and have ATEX II 2g explosion-proof standard.
304 stainless steel construction.
Solvent Tanks included in price.
