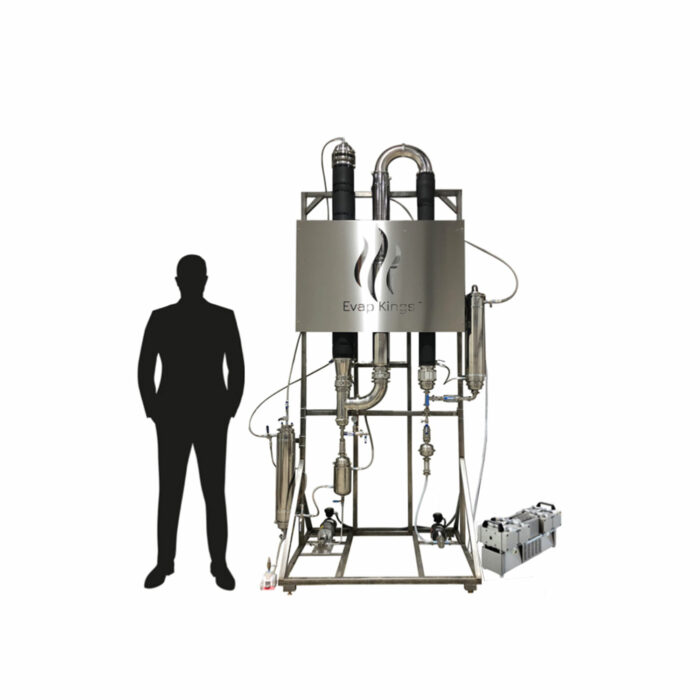

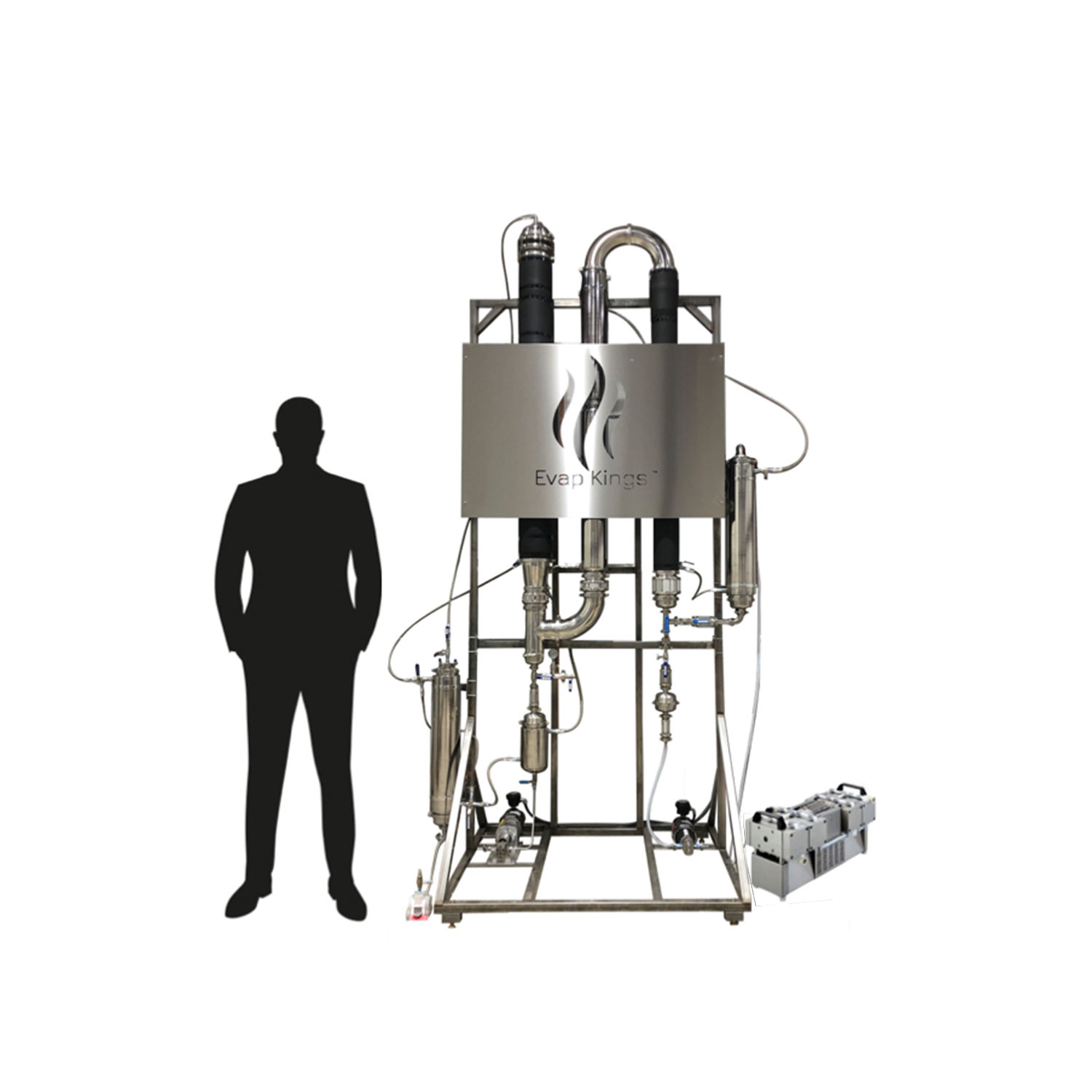

Evap Kings Falling Film 400i

Contact for Pricing

The Falling Film Evaporators from Evap Kings are designed for large-scale solvent recovery.
They are manufactured, designed, and engineered in Southern California, and they are made from stainless steel components to ensure long service life and effective operation.
These Falling Films are designed to have high evaporation surface area and low residence time, so targeted compounds are only exposed to a small amount of heat for a short time. This ensures preservation and avoids degradation.

SKU: 4201497 Category:

Description

Model:
400i
600i
800i
1000i
1400i

Recovery Rate:
35 gal/hr
60 gal/hr
100 gal/hr
150 gal/hr
300 gal/hr

Ancillary Items:
Included
Included
Included
Included
Included

Power Requirements:
125 Amps, 480V 3 Phase
175 Amps, 480V 3 Phase
225 Amps, 480V 3 Phase
300 Amps, 480V 3 Phase
400 Amps, 480V 3 Phase

FFE Footprint:
4’ x 5’ x 12’
4’ x 5’ x 13’
4’ x 5’ x 17’
4’ x 5’ x 19’
4’ x 5’ x 20’

Low Ceiling Design:
Available
Available
Available
Available
Available

95-99% solvent recovery first pass
Continuous operation
Dedicated support and install and training available
Designed, engineered, and assembled in the USA
Equipment allows for scaling and eliminates bottlenecks
GMP and CIP protocols, FDA approved gaskets
Industry-proven
Materials: stainless steel, borosilicate glass, PTFE gaskets
Multiple-solvent-compatible
Peer-reviewed for safety, C1D1 compliant with explosion-proof gear pump motors
Preheat module for cold solvent injection
Proprietary eco-design reduces power usage compared to similar systems
Reliable and simple and can be operated by a single person
Short residence time to maintain highest quality output product
Stainless steel construction (3A sanitary components)
Turnkey system includes heater chiller, and vacuum pump

Model:
400i
600i
800i
1000i
1400i

Recovery Rate:
35 gal/hr
60 gal/hr
100 gal/hr
150 gal/hr
300 gal/hr

Ancillary Items:
Included
Included
Included
Included
Included

Power Requirements:
125 Amps, 480V 3 Phase
175 Amps, 480V 3 Phase
225 Amps, 480V 3 Phase
300 Amps, 480V 3 Phase
400 Amps, 480V 3 Phase

FFE Footprint:
4’ x 5’ x 12’
4’ x 5’ x 13’
4’ x 5’ x 17’
4’ x 5’ x 19’
4’ x 5’ x 20’

Low Ceiling Design:
Available
Available
Available
Available
Available
