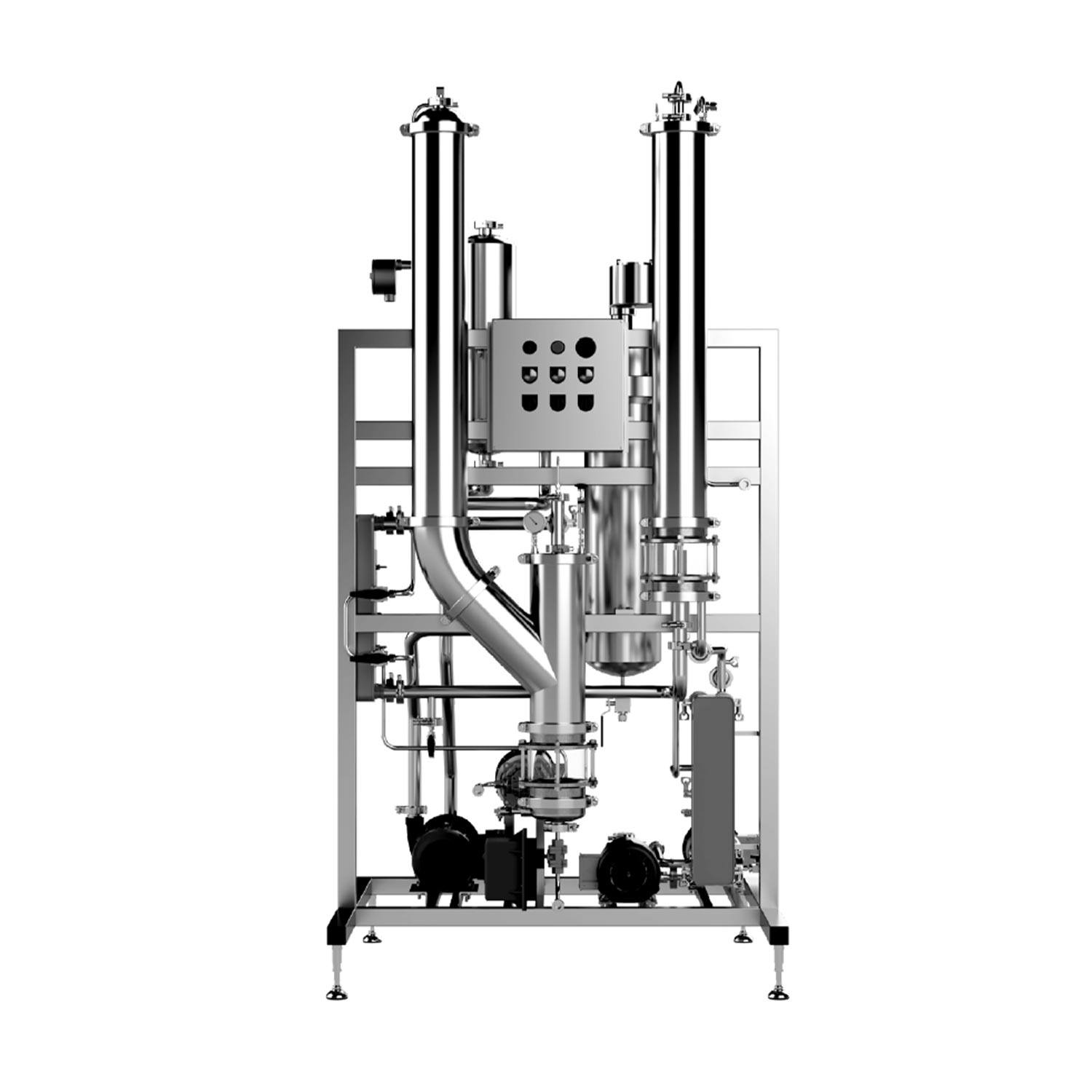

Falling Film Evaporator – EV S-Series

Contact for Pricing

Yellowstone EV falling film evaporators are designed for large-scale solvent recovery while greatly reducing energy consumption and increasing throughput.
Yellowstone falling film evaporators DO NOT require a chiller. They consume up to 65% less energy than similar systems.

SKU: 4201589 Category:

Description

Model:
EV S-Series

Voltage:
480V 3~

Amperage:
75.5 – 82 Amps

Wattage:
60 kW

Alcohol Recovery Rate:
250-300 LPH (66-79 GPH)

Footprint:
4’ x 4’ x 8’

Solute Max Temperature:
194°F (90°C)

Residence Time:
5 Seconds

Additional Equipment Included:
Radiator & Control Panel

Model:
EV O-Series
EV S-Series
EV S-Series Pro

Capacity:
250-300 LPH
250-300 LPH
250-300 LPH

Classification:
C1D2
C1D2
C1D2

Solvent Compatibility:
Ethanol, Isopropyl Alcohol
Ethanol, Isopropyl Alcohol, Hexane, Heptane
Ethanol, Isopropyl Alcohol, Hexane, Heptane

Thermal Fluid Pump Rate:
38 LPH
189 LPH
189 LPH

GMP Compliant:
No
No
Yes

Full view borosilicate sight glass
High-efficiency insulation
Low-cost downtime prevention and easy to service components
Up to 2m2 heat exchange area
Additional drainage ports
Full view borosilicate sight glass
High-efficiency insulation
HMI compatible
Low-cost downtime prevention and easy to service components
Manual vacuum break
Proportionate temperature controller
Thermal fluid filling sight glass
Up to 2m2 heat exchange area
Full view borosilicate sight glass
Low-cost downtime prevention and easy to service components
High-efficiency insulation
Up to 2m2 heat exchange area
Thermal fluid filling sight glass
Manual vacuum break
Additional drainage ports
Proportionate temperature controller
HMI compatible
Double tube sheet heat exchanger to prevent contamination
316 stainless steel interior with a polished surface area on all product contact points
Added drain-ability in lines for easy sanitation and cleaning
Weld certificates & 3rd party boroscope inspection
Designed to BPE standards
Electropolished & passivated
Complete material traceability
