Description
Model:

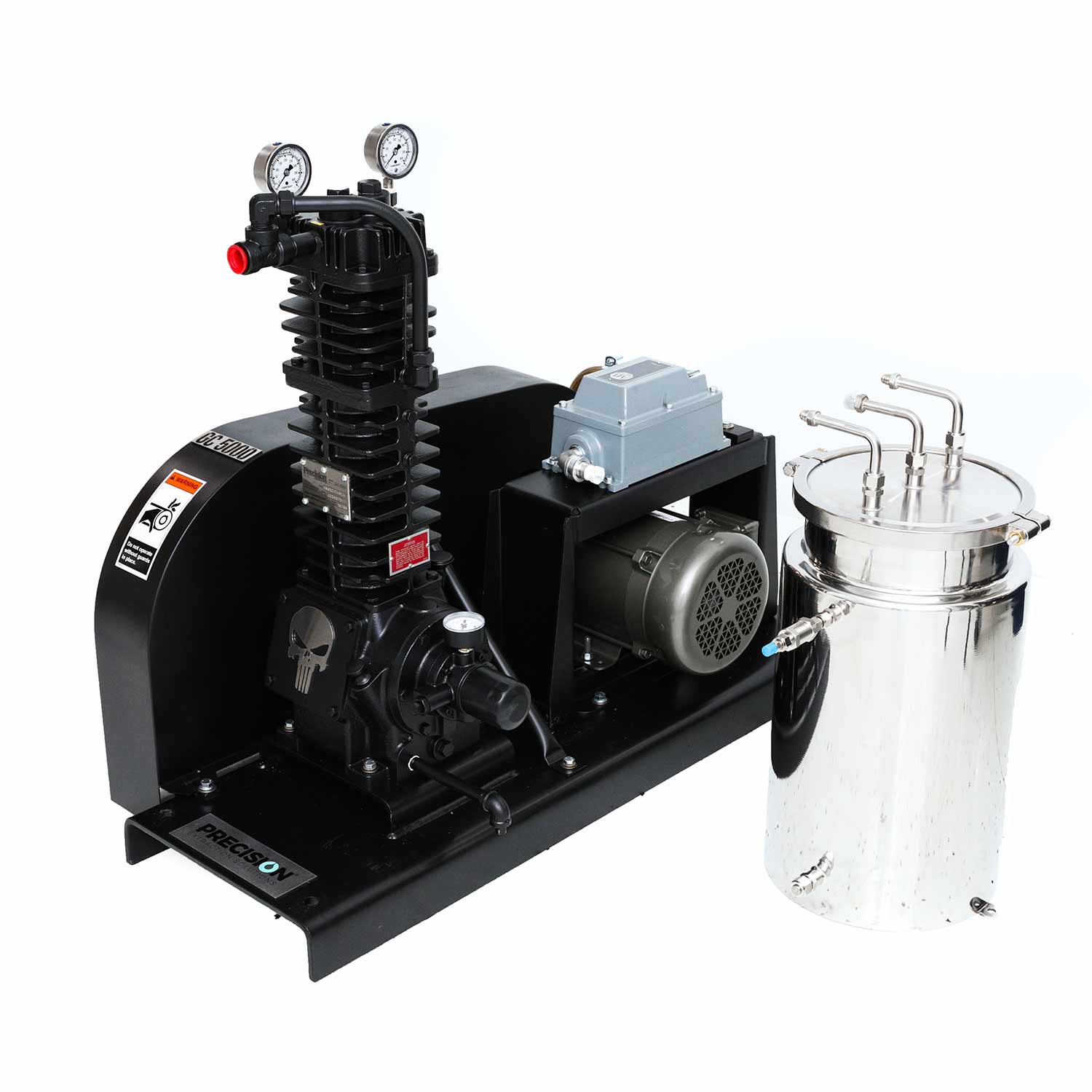

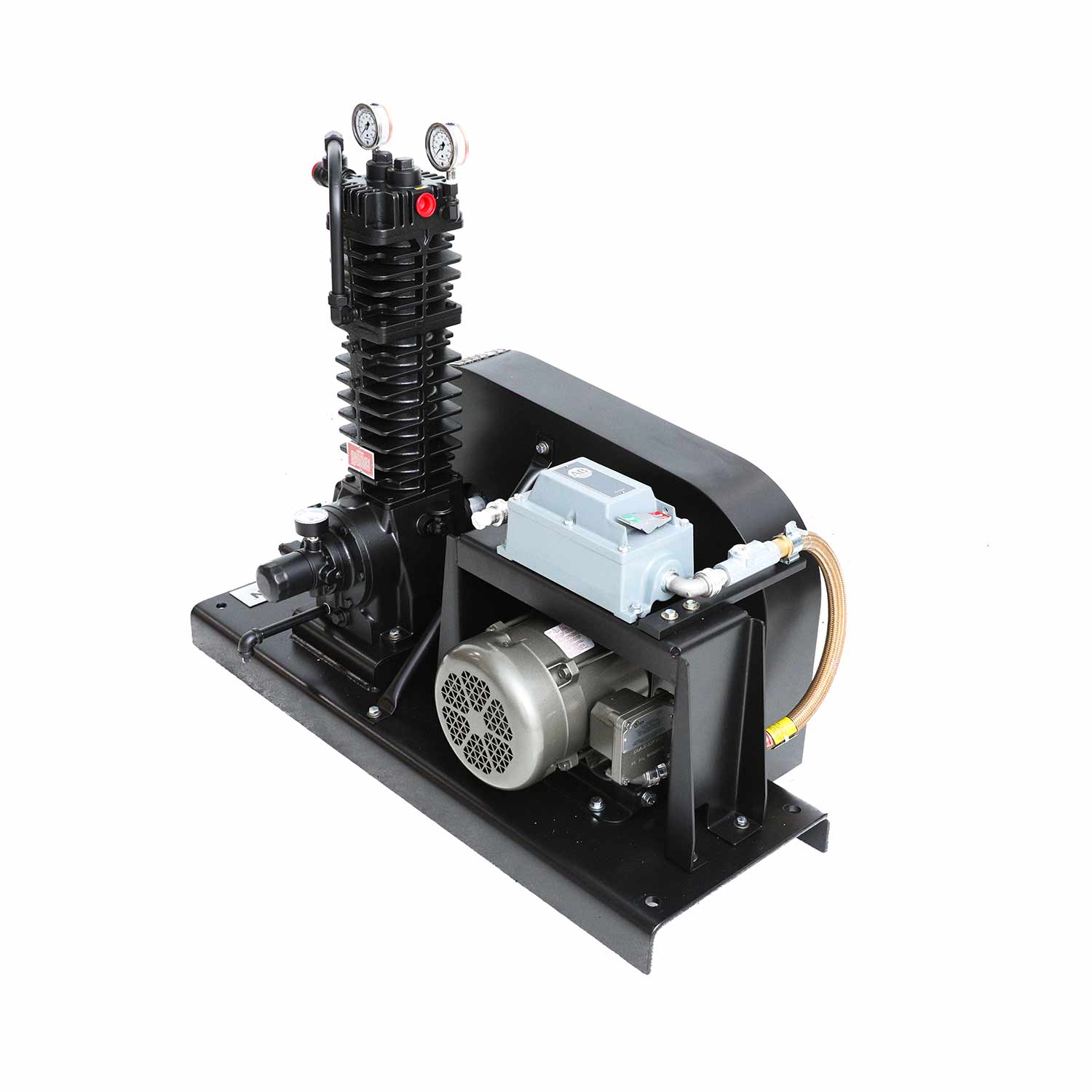

GC 5000 Gas Compressor
Dimensions (approx.):
41” L x 33” W x 50” D
Weight:
496 lbs
Shipping Weight:
545 lbs
Volts:
240V
Amps:
11A
Hertz:
60Hz
Compressor:
Oil-less Piston, PTFE Seals
Displacement:
Min RPM – CFM (m3/hr) 3.58 (6.1)
Max RPM – CFM (m3/hr) 8.44 (14.3)
MAWP:
350 psi (2413 kPA)
Max. Discharge Temp.:
350°F (176°C)
Inlet/Outlet Size:
¾” (can be reduced)
Warranty**:
Two years
Compliance:
Class 1, Division 1, Group D compliant
Class II, Groups F&G compliant
Built to last with durable construction and reliable operation
Certified for use in Class 1, Division 1 (C1D1) environments
Designed for minimal maintenance
Integrated NEMA7 switch for ease of installation and operation
Oil-less piston and PTFE seals
Recovery speeds from 1-5 lbs per minute (depending on solvent)
UL Listed and CSA certified motor and NEMA starter switch
