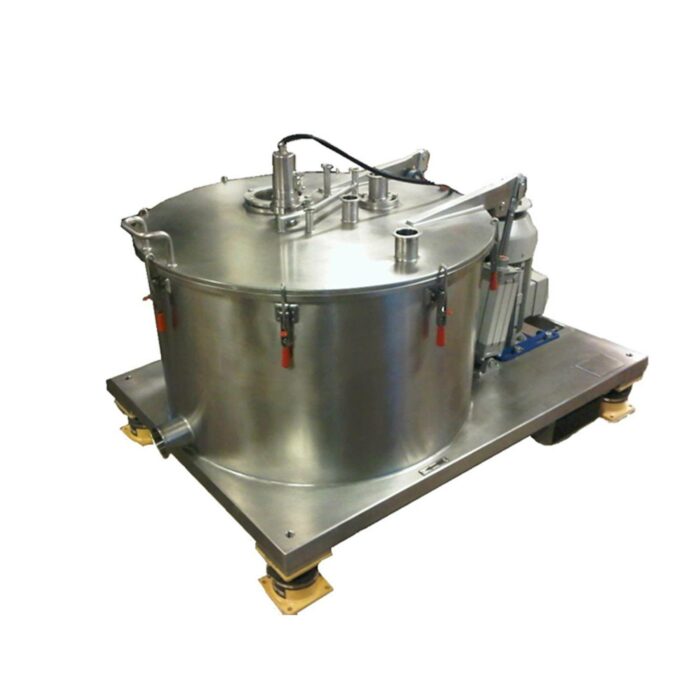

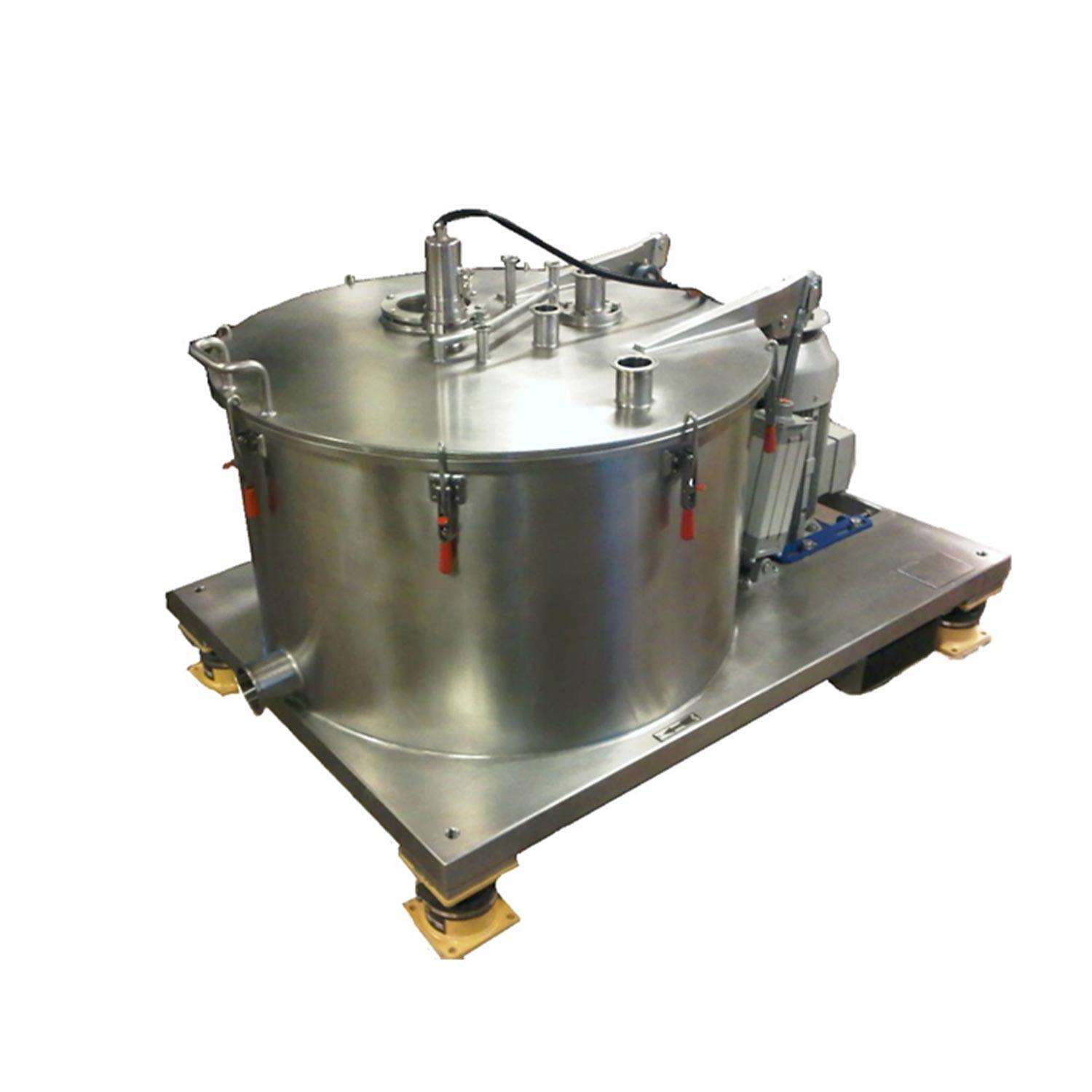

Heinkel CX-70 Ethanol Extraction Centrifuge

Call for Pricing

The CX-70 Ethanol Extraction Centrifuge from Heinkel can process up to 70lbs of biomass per batch and can handle temperatures down to -40°C. Batch times are approximately 20 minutes, so you can effectively process up to 210 lbs/hr. using the CX-70.
Heinkel has decades of experience in the Pharmaceutical Industry, and this knowledge has allowed them to design and build the most reliable extraction systems on the market. The CX-70 stands out from its competitors with its superior safety, easy loading and unloading, and top quality design and construction.

SKU: 4201620 Category:

Description

Solids Material per batch (lbs)
60 – 70 (27 – 32 kg)

Estimated batch run time (mins)
20 – 25

Ethanol usage per run (gallons)
60 – 70 (227 – 265 liters)

Centrifuge speed (RPM)
0 – 1400 vai variable frequency drive

Gravitational force
691 G’s

Estimated weight (lbs)
Approx. 1200 (545 kg)

Operating temperature (C)
-40 to 30 (-40 to 86F)

Max noise level (dBa)
< 80 Drive Motor (HP) 7 HP UL listed 230 volts, 60Hz, 3-Phase inverter duty, explosion proof, C1D2 groups C&D Centrifuge & HMI Rated for class 1 div. 2 installation area PLC/VFD control cabinet Rated for safe area installation Estimated ethanol removal post run 95 – 97% Foot print with lid closed 34.5” W x 57” L x 52” H Foot print with lid open 34.5” W x 57” L x 75” H 97% alcohol removal -40°C operation Batch time: 20 min per batch, 210 lbs/hr. Variable frequency drive for short acceleration and braking times Bi-directional agitation Easy material loading and unloading Digital HMI interface Heavy-duty spin-drying for maximum ethanol removal Insulating jacket Designed for Class 1 Div. 2, Groups C&D UL or ATEX approved electric components 316L stainless steel construction Meets cGMP and Pharmaceutical standards No foundation required Top lid locking system Vibration / unbalance monitoring system Closed-loop mechanical seal system with visual sight view and flow level detection
