Heinkel Inverting Filter Centrifuge

Call for Pricing

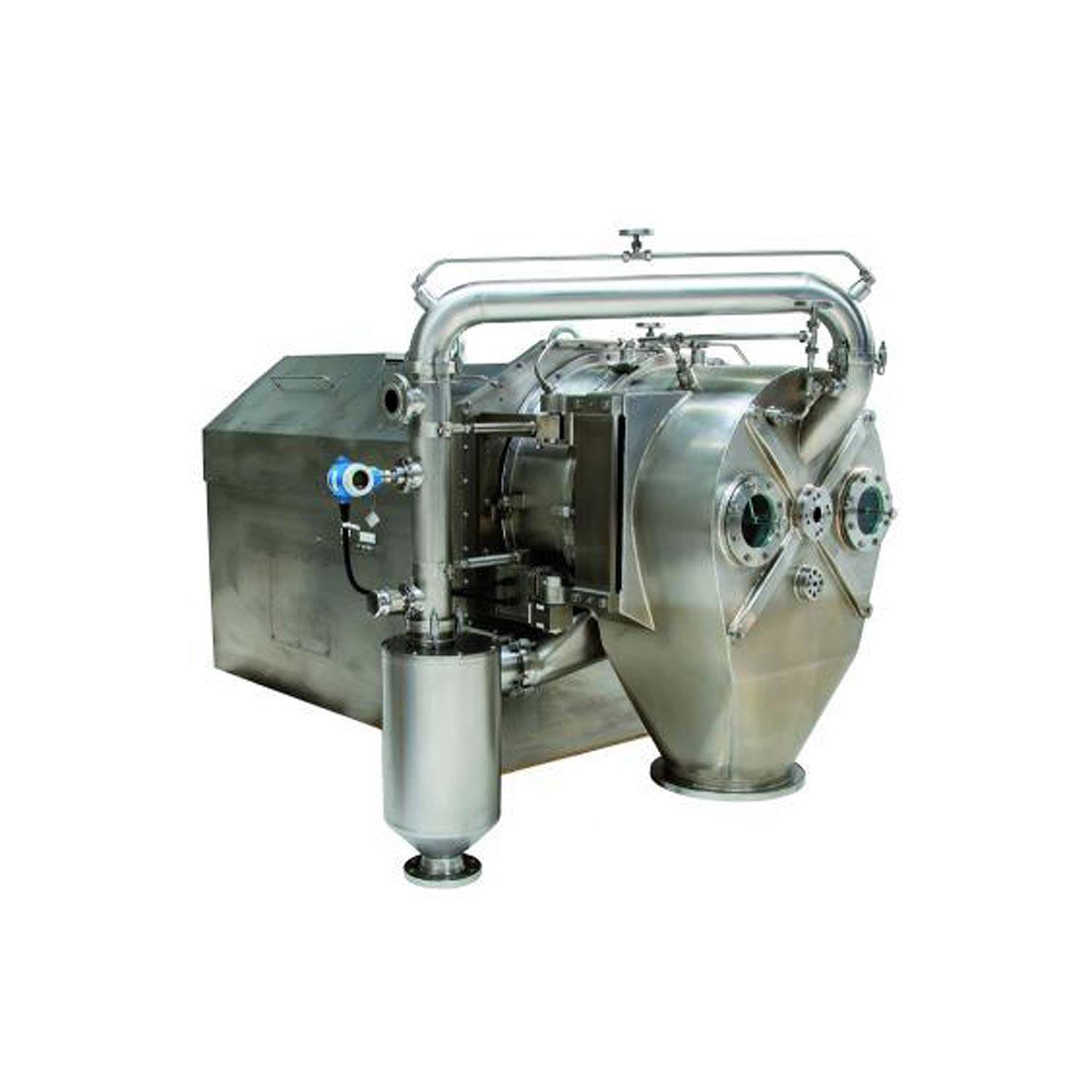

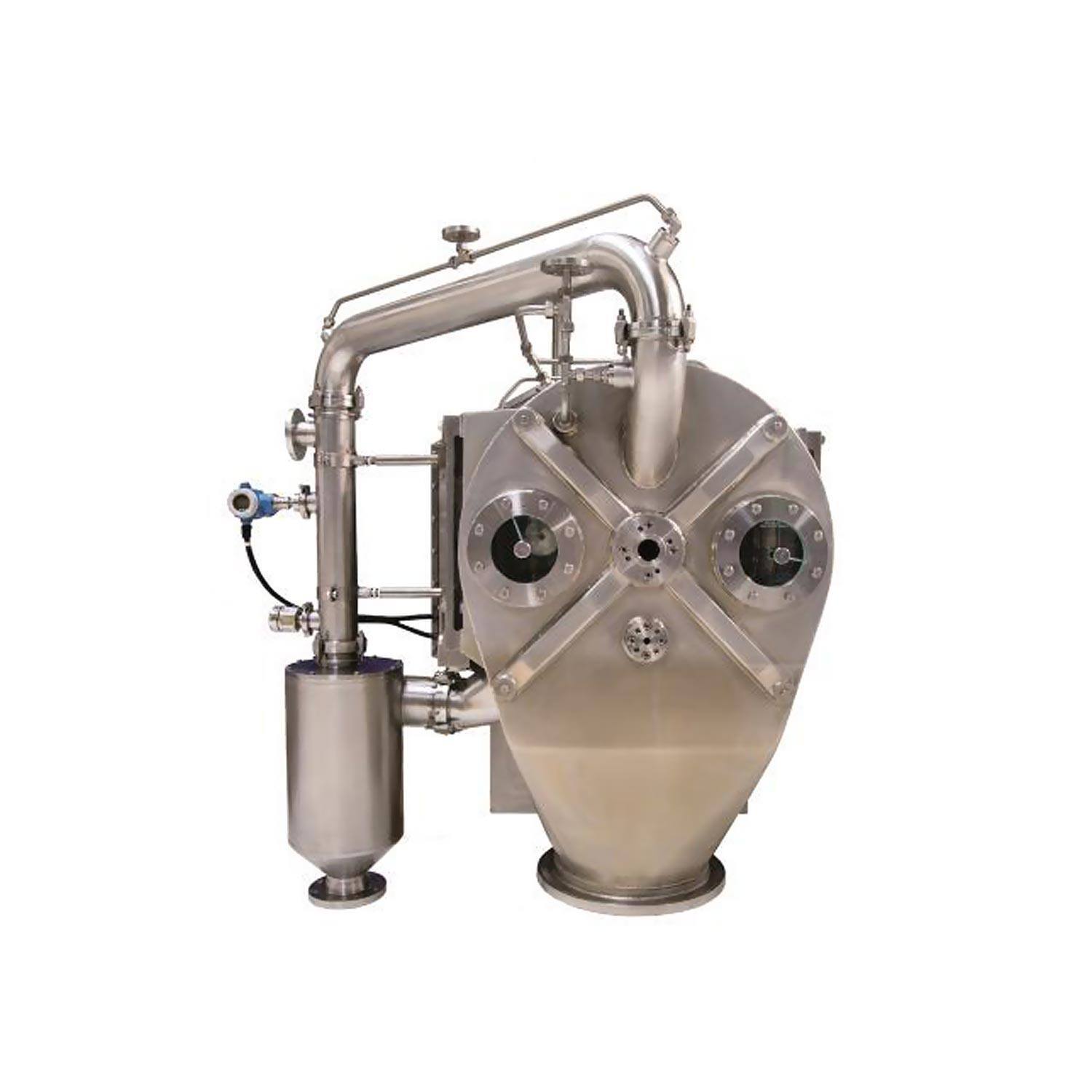

The inverting filter centrifuge from Heinkel is CGMP compliant. With its gentle product discharge, the unit leaves no residual heel. This allows the possibility of thin-cake filtration.

SKU: 4201442 Category:

Description

Centrifuge Type
Basket Diameter (mm)
Filter Area (m²)
Nominal Volume (L)
Max Speed (1/min)
Centrifugal Force (x g)

HF 300.1
300
.10
6.5
3000
1500

HF 600.1
600
.40
52
1940
1260

HF 800.1
800
.85
120
1600
1140

HF 1000.1
1000
1.25
200
1270
900

Centrifuge Type
Length (mm)
Width (mm)
Height (mm)
Weight (kg)

HF 300.1
2500
1000
1100
1400

HF 600.1
3092
1650
1720
3500

HF 800.1
4100
1900
2250
6200

HF 1000.1
5100
2300
2600
8900

Sturdy and proven design
Matches requirements in multiple industries (such as pharmaceutical and chemical)
Residual-heel-free product discharge and minimum installations in housing and basket, optimal for high-potent API products with highest-possible product yield
Reduced moisture compared to conventional filtration, thanks to the pressure-added centrifugation or PAC (optional)
Up to 1,500 g force possible
Spinning time can be adapted to changing processes and conditions to fit the operator’s needs
Enables filtration of difficult-to-filter products
Can supply nitrogen/steam or hot nitrogen for drying
Process area can be opened up and easily inspected
