Description
General information & temperature controller
Temperature range
-20…40 °C
Temperature stability
±0.5 °C

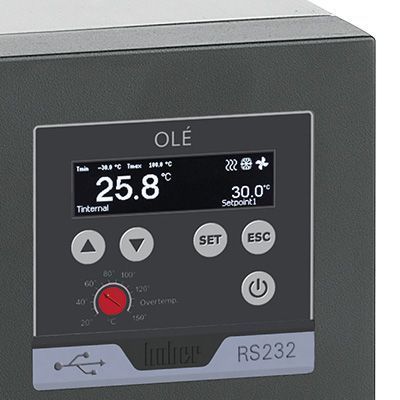

Temperature display
OLED Display
Display resolution
0.1 °C
Alarm message
optical, acoustical
Controller
OLÉ
Safety class
I / NFL
Protection class
IP20
Dimensions (W x D x H)
280 x 490 x 424 mm | 11.02 x 19.29 x 16.69 inches
Weight
35 kg | 77.18 pounds
Heating / cooling capacity
Cooling capacity
15
0
-10
-20
°C
0,6
0,5
0,35
0,15
kW
Cooling machine
air-cooled
Refrigerant
R290 (0,085 kg)
Circulation pump
Pressure pump max.
24 lpm ; 0.7 bar | 6.34 gpm ; 101.5 psi
Suction pump max.
18 lpm ; 0.4 bar | 4.76 gpm ; 58 psi
Pump connection
M16x1 AG male
Connections

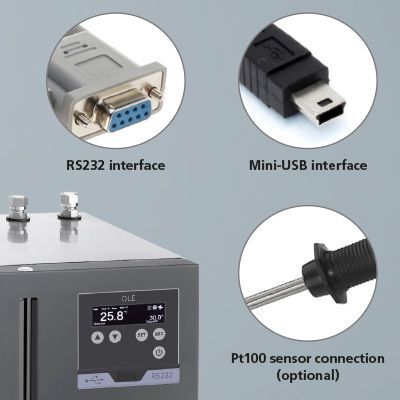

Digital interface
USB, RS232
Operating data
Permissible ambient temp.
5…40 °C
Noise level
56 dB(A)
Filling volume min.
2.8 Liters | 7.4 gal
Volume of expansion
2.2 Liters | 5.81 gal
Power supply
115V 1~ 60Hz
Current max.
8,5 A
