Description
General information & temperature controller
Temperature range
-45…250 °C
Temperature stability
±0.01 °C
Temperature control
TAC, self-optimizing (True Adaptive Control)
Display resolution
0.01 °C
Alarm message
optical, acoustical
Controller

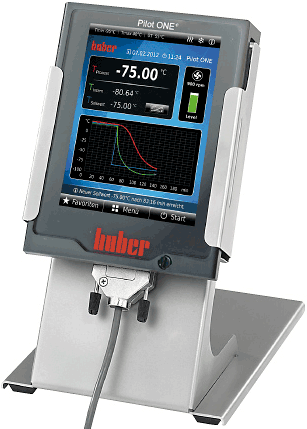

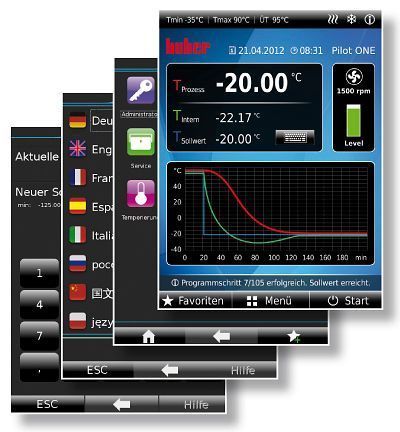

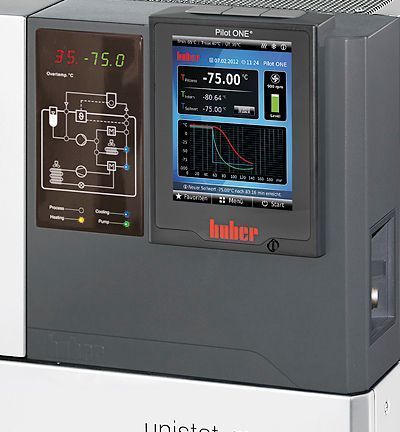

Pilot ONE (E-grade “Professional”)
Safety class
III / FL
Protection class
IP20
Dimensions (W x D x H)
426 x 327 x 631 mm | 16.77 x 12.87 x 24.84 inches
Weight
58 kg | 127.89 pounds
Heating / cooling capacity
Heating capacity
3 kW
Cooling capacity
250
200
100
0
-20
-40
°C
1,1
1,1
1,1
1,1
0,6
0,15
kW
Cooling machine
air-cooled
Refrigerant
R1270 (0,15 kg)
Circulation pump
Pressure pump max.
55 lpm ; 0.9 bar | 14.53 gpm ; 13.05 psi
Pump connection
M24x1,5 AG male
Permissible viscosity
50 mm²/s
Connections
Pt100 connection
Pt100
Analogue input
via optional Com.G@te
Analogue output
via optional Com.G@te

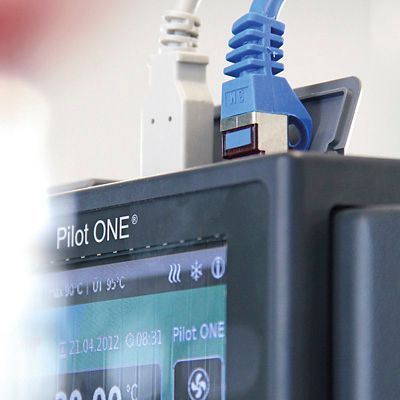

Digital interface
RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.
5…40 °C
Noise level
62 dB(A)
Filling volume min.
1.5 Liters | 3.96 gal

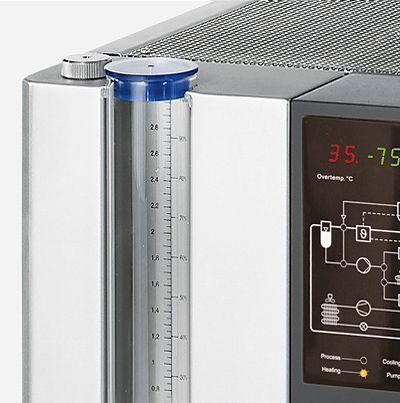

Volume of expansion
2.8 Liters | 7.4 gal
Power supply
208V 2~ 60Hz
Current max.
17 A
Fusing
2×20 A
