Description
General information & temperature controller
Temperature range
-20…100 °C
Temperature stability
±0,5 °C
Temperature display
OLED Display
Display resolution
0,1 °C
Alarm message
optical, acoustical

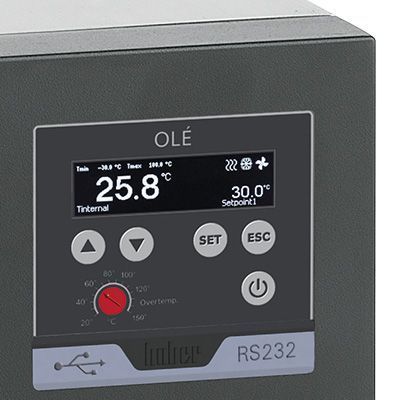

Controller
OLÉ
Safety class
III / FL
Protection class
IP20
Dimensions (W x D x H)
280 x 490 x 424 mm
Weight
35 kg
Heating / cooling capacity
Heating capacity
2 kW
Cooling capacity
15
0
-10
-20
°C
0,6
0,5
0,35
0,15
kW
Cooling machine
air-cooled
Refrigerant
R290 (0,085 kg)
Circulation pump
Pressure pump max.
24 l/min ; 0,7 bar
Suction pump max.
18 l/min ; 0,4 bar
Pump connection
M16x1 AG male
Connections

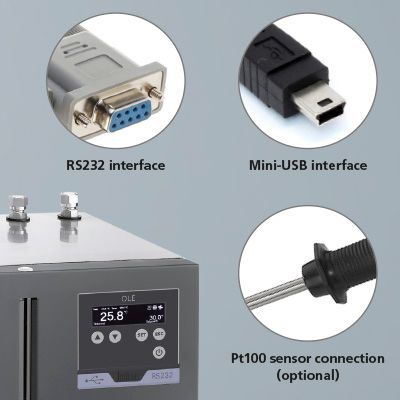

Digital interface
USB, RS232
Operating data
Permissible ambient temp.
5…40 °C
Sound pressure level
56 dB(A)
Filling volume min.
2,8 Litres
Volume of expansion
2,2 Litres
Power supply
230V 1~ 50/60Hz
Current max.
12 A
Fusing
16 A
