Description
General information & temperature controller
Temperature range
-50…250 °C
Temperature stability
±0.01 °C
Temperature control
TAC, self-optimizing (True Adaptive Control)
Display resolution
0.01 °C
Alarm message
optical, acoustical
Controller

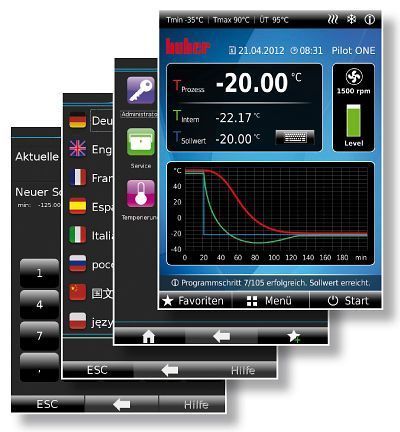

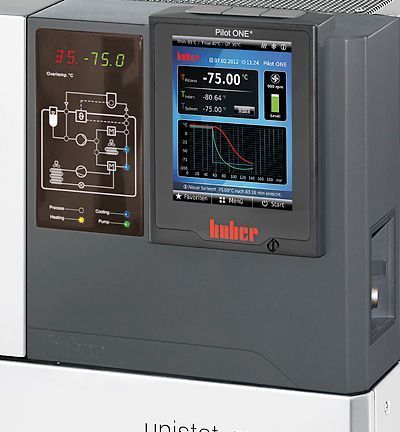

Pilot ONE (E-grade “Professional”)
Safety class
III / FL
Protection class
IP20
Dimensions (W x D x H)
1100 x 755 x 1370 mm | 43.31 x 29.72 x 53.94 inches
Weight
— kg | pounds
Heating / cooling capacity
Heating capacity
9 kW
Cooling capacity
250
200
100
0
-20
-40
-50
°C
5,3
5,3
5,3
5,3
2,8
0,9
0,25
kW
Cooling machine
air-cooled
Refrigerant
R452A
Circulation pump
Pressure pump max.
112 lpm ; 1.5 bar | 29.59 gpm ; 217.5 psi
Pump connection
M30x1,5 AG male
Permissible viscosity
50 mm²/s
Connections
Pt100 connection
Pt100
Analogue input
via optional Com.G@te
Analogue output
via optional Com.G@te
Digital interface

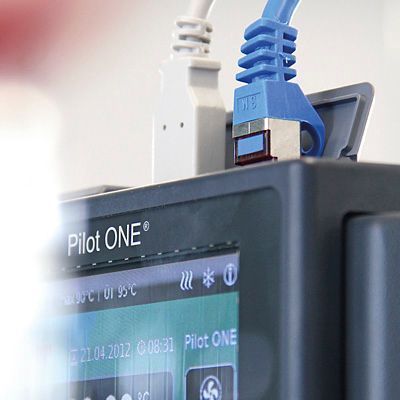

RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.
5…40 °C
Filling volume min.
5.3 Liters | 14 gal
Volume of expansion
26.5 Liters | 70.01 gal
