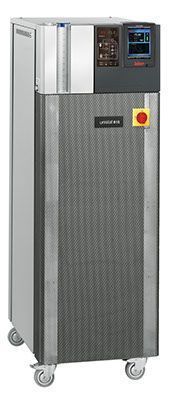

HUBER Unistat 815 -85°C to 250°C with Pilot ONE

49,350.00$

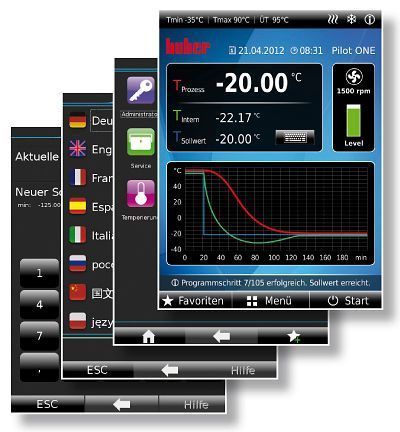

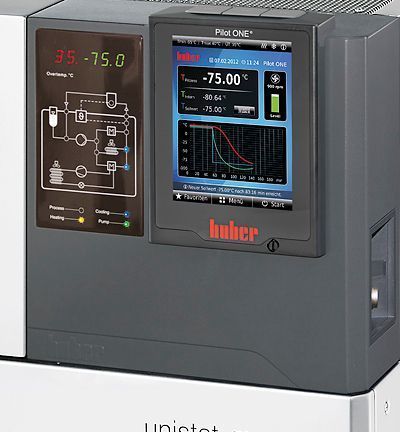

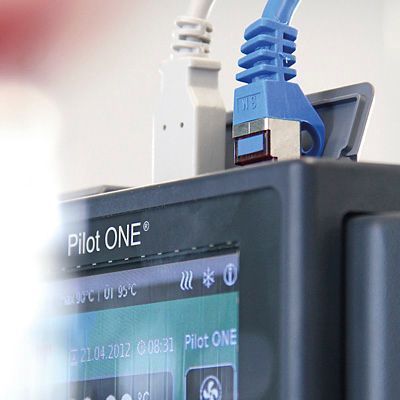

The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

SKU: 4200029 Category: Tag:

Description

General information & temperature controller

Temperature range
-85…250 °C

Temperature stability
±0,01 °C

Temperature control
TAC, self-optimizing (True Adaptive Control)

Display resolution
0,01 °C

Alarm message
optical, acoustical

Controller
Pilot ONE  (E-grade “Professional”)

Safety class
III / FL

Protection class
IP20

Dimensions (W x D x H)
460 x 604 x 1465 mm

Weight
— kg

Heating / cooling capacity

Heating capacity
2 kW

Cooling capacity

250
200
100
0
-20
-40
-60
-80
 °C

1,3
1,3
1,3
1,5
1,5
1,4
1,2
0,2
 kW

Cooling machine
air-cooled

Refrigerant 1. stage
R452A (1,8 kg)

Refrigerant 2. stage
R23 (0,39 kg)

Circulation pump

Pressure pump max.
40  l/min ; 0,9  bar

Pump connection
M30x1,5 AG male

Permissible viscosity
50 mm²/s

Connections

Pt100 connection
Pt100

Analogue input
via optional Com.G@te

Analogue output
via optional Com.G@te

Digital interface
RS232, Ethernet, USB Device, USB Host

Operating data

Permissible ambient temp.
5…40 °C

Filling volume min.
3,8 Litres

Volume of expansion
3,3 Litres
