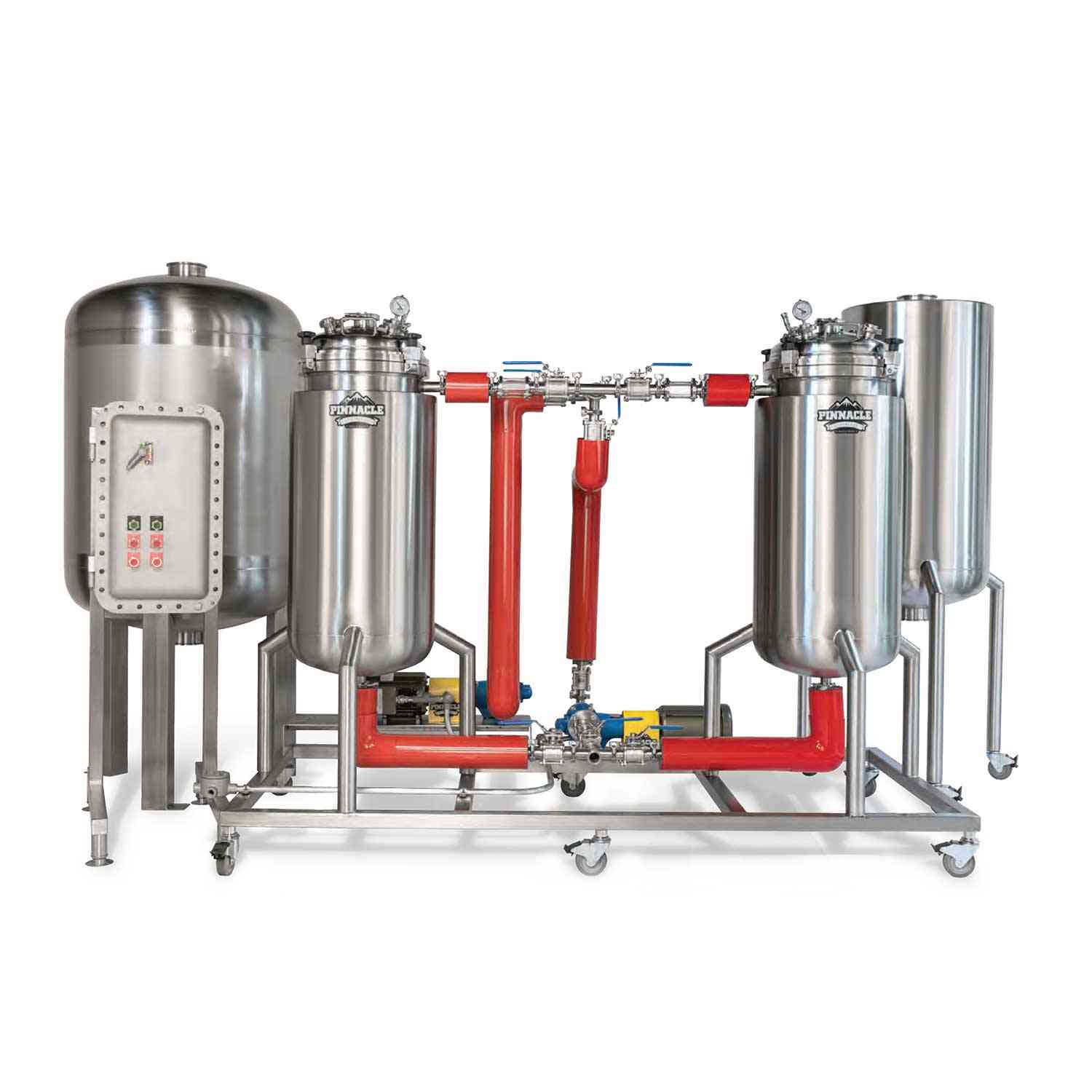

Pinnacle Stainless AES (Dual Reactor System)

Notice: Function price was called incorrectly. Product properties should not be accessed directly. Backtrace: require('wp-blog-header.php'), require_once('wp-includes/template-loader.php'), include('/plugins/woocommerce/templates/single-product.php'), wc_get_template_part, load_template, require('/plugins/woocommerce/templates/content-single-product.php'), do_action('woocommerce_single_product_summary'), WP_Hook->do_action, WP_Hook->apply_filters, woocommerce_template_single_price, wc_get_template, include('/plugins/woocommerce/templates/single-product/price.php'), WC_Product->get_price_html, apply_filters('woocommerce_get_price_html'), WP_Hook->apply_filters, fbs_woocommerce_get_price_html, WC_Abstract_Legacy_Product->__get, wc_doing_it_wrong Please see Debugging in WordPress for more information. (This message was added in version 3.0.) in /www/safeleafca_430/public/wp-includes/functions.php on line 5835
Contact for Pricing

The AES by Pinnacle Stainless is a highly effective alcohol extraction system.
The AES is a batch-style alcohol extraction system which is skid-mounted and used to extract biomass at 95 to 98% efficiency.

SKU: 4201611 Category:


100% engineered and fabricated in house by Pinnacle Stainless in Denver, CO
Can process 1,700 to 2,000 lbs of biomass per 12-hour shift
Closed-loop system designed for safe operation
Optional fluid density meters
Optional tank level controls
Material vessel can hold 30 to 50lbs of material
Minimal post-processing and filtration required
Third-party peer-reviewed
Two vessels accommodate two separate loads per hour
2x 100L Material Vessels with Liquid Dimple-Jackets
& Cryogenic Insulation
Large Process Skid on 6 Pharma Casters
Transfer Lines with Clean Room Insulation
2x American Made Liquid Solvent Pumps with -90 Mechanical Seals & C1D1 Motors
UL Listed Explosion Proof Control Box
System Operating Manual
Training and Install Support
PSI Third Party Peer-Review
20 Amp Circuit
208/240/480V 3 Phase Options
Dimensions: 94″ x 55″ x 74.5″
Weight: 2,200 lbs (including crating)
