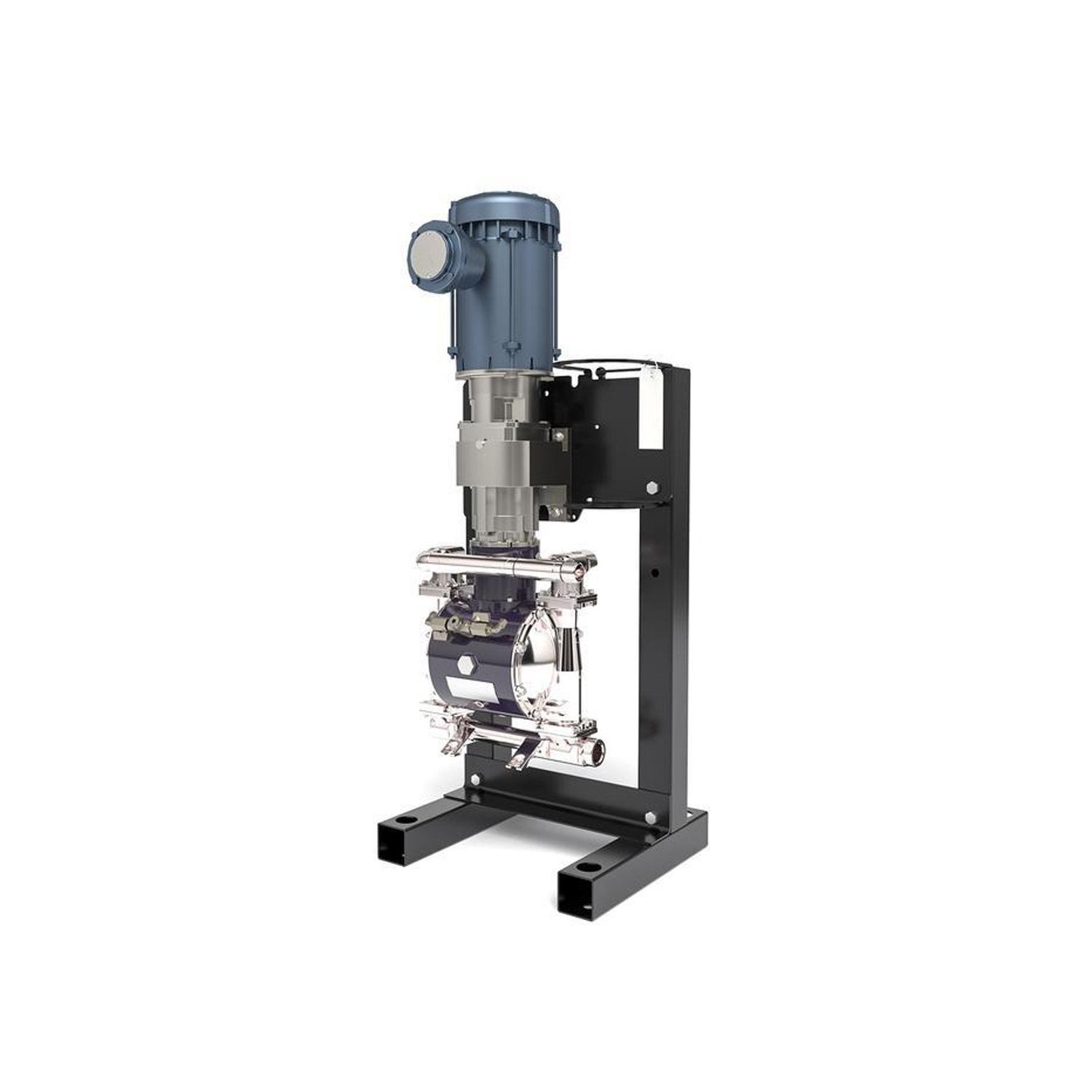

MVP Liquid Recovery Pump

8,500.00$

The Master Vapor Pump – Liquid is a certified liquid recovery pump designed for solvent extraction processing. This pump is designed specifically for LP-Gas and Ethanol liquid recovery and is ideal for LP-Gas or LP-Gas / Ethanol mixtures.

SKU: 4201617 Category:

Description

Maximum pumping outlet pressure – 70 PSI
Center Section CO2 charge range 5 to 80 PSI
(10-15psi over inlet pressure recommended)
CO2 Inlet Size: 1 /4 in. npt(f)
Maximum Pump Speed 135 cpm (cycle per minute)
Process Inlet and Outlet Size: 1 in. npt
Electric Motor: Explosion proof for C101 Hazardous areas
Motor Specifications: 2HP, 3,600 rpm, 60Hz
Size: 18.3” x 15.4” base x 42.3” tall
Weight: 173.2 lb
FKM: -40° to 275°F (-40° to 135°C)
PTFE: 40° to 220°F ( 4° to 104°C)
Model MVP-LIQUID-1PH: Single-phase: 115/208-230V, 20/10 FLA (full load amps)
Model MVP-LIQUID-3PH: Three-phase: 208-230/460V, 5.2/2.6 FLA, Inverter-rated
Meets Class 1 Division 1 hazardous area facility requirements (when installed correctly)
One year manufacturer’s warranty (see Operation Manual)
Made in the USA
