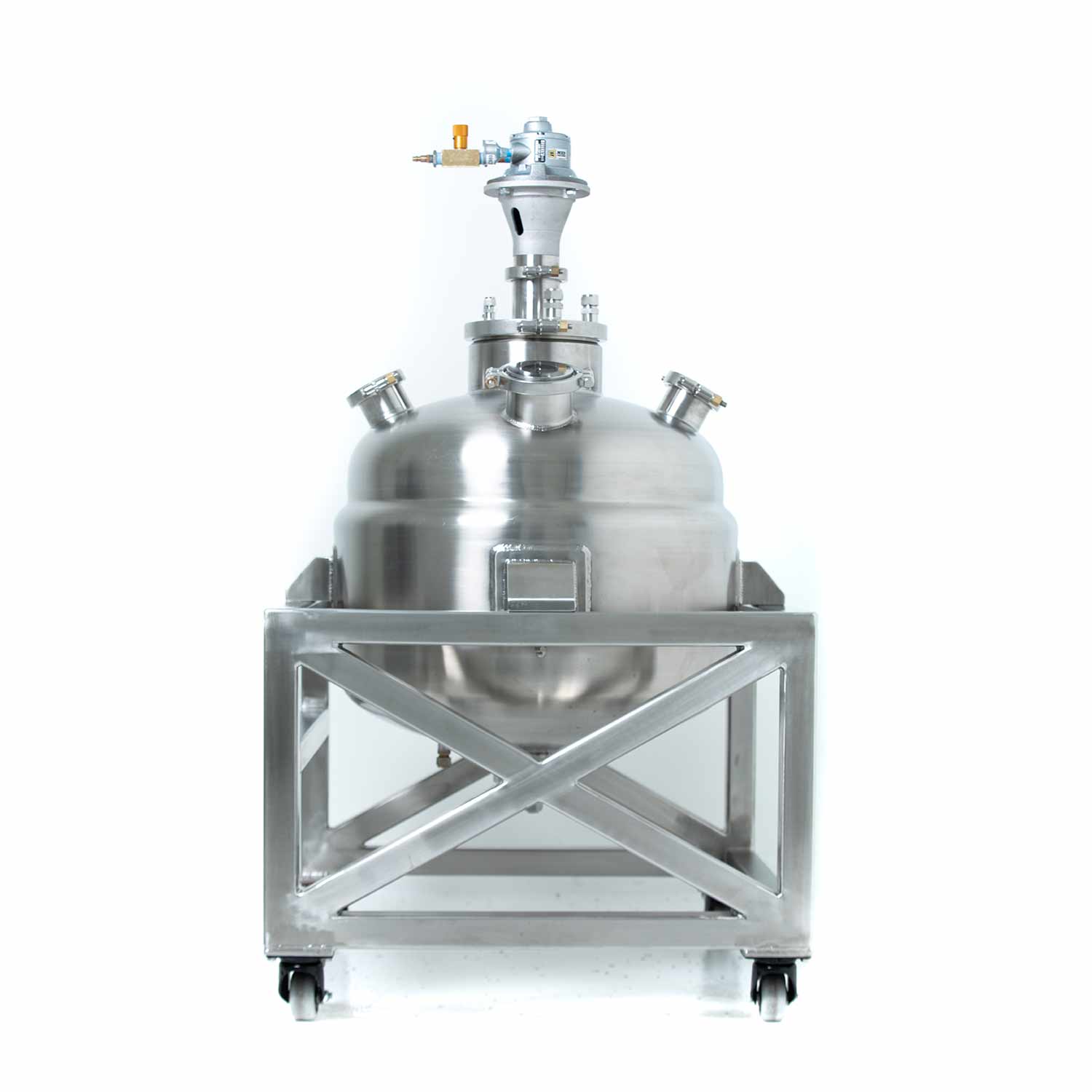

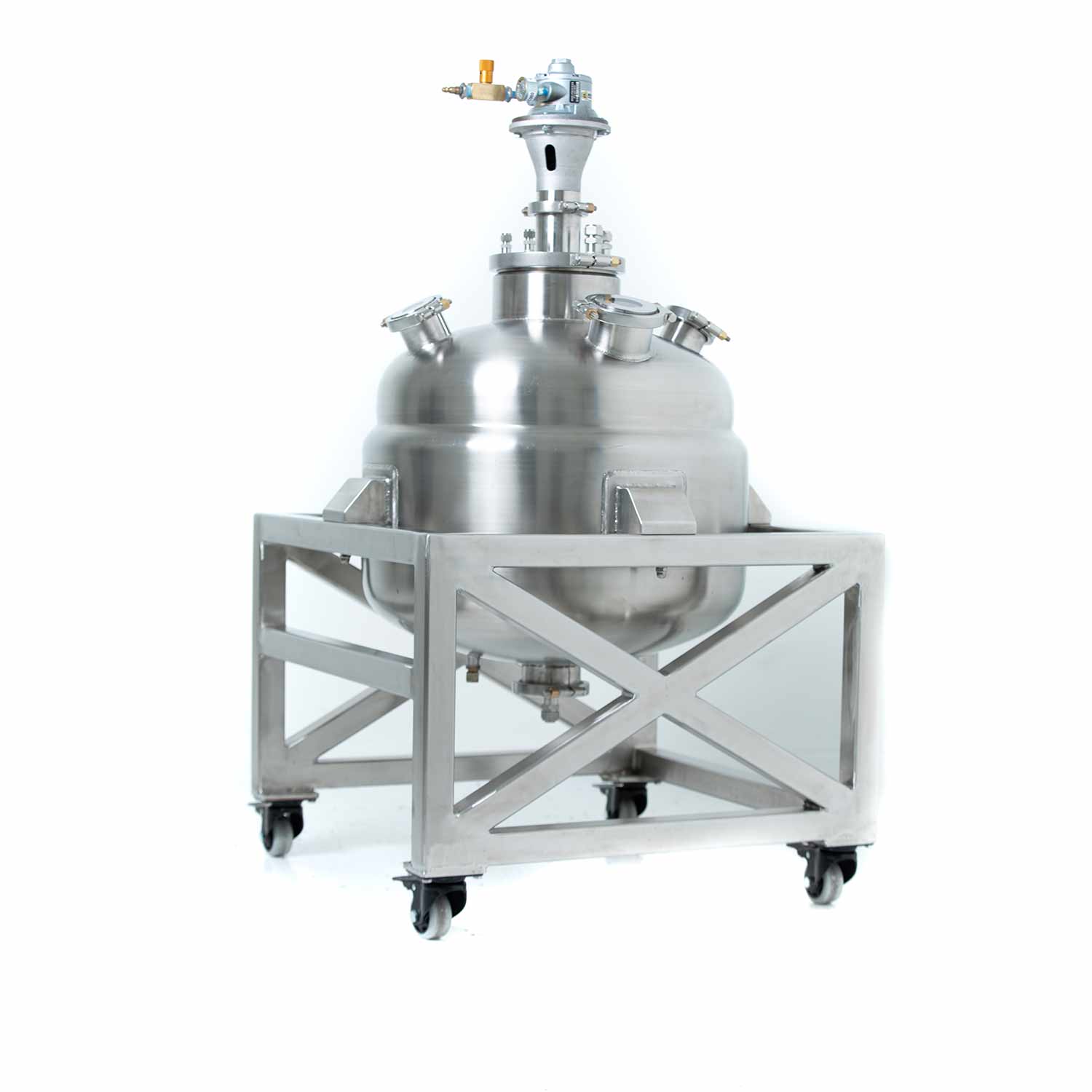

RV-100 Reactionary Vessel

21,845.00$

The RV 100, from Precision Extraction, is a multi-use reactionary vessel with a volume of 100 liters.
The RV 100 Reactionary Vessel can be used for crystallization, winterization, decarboxylation, and many other processes.

SKU: 4201292 Category:

Description

Model:
RV 100 Reactionary Vessel

Dimensions (approx.):
30” L x 30” W x 50” H

Weight:
410 lbs

Shipping Weight:
515 lbs

MAWP:
15 PSIG

Working Temp. Range:
-40°C to 150°C

Working Pressure:
Vacuum to 15 PSIG

Max Fill Volume:
100L

Internal Jacket Volume:
21.93L

Warranty**:
One year

Stirrer Motor:
1.5 HP Air Motor (Lube-free, Maintenance-free)

Stirrer Max. Air Consumption:
42 CFM @ 80 PSI

Stirrer Min. Air Consumption:
16 CFM @ 20 PSI

Max Stir Pressure:
80 PSI

Max Stir Rate:
2000 RPM

Compliance:
Class 1 Division 1 Compliant

Multi-use reaction vessel
Suitable for crystallization, winterization, and decarboxylation
Durable stainless steel design for long lifespan

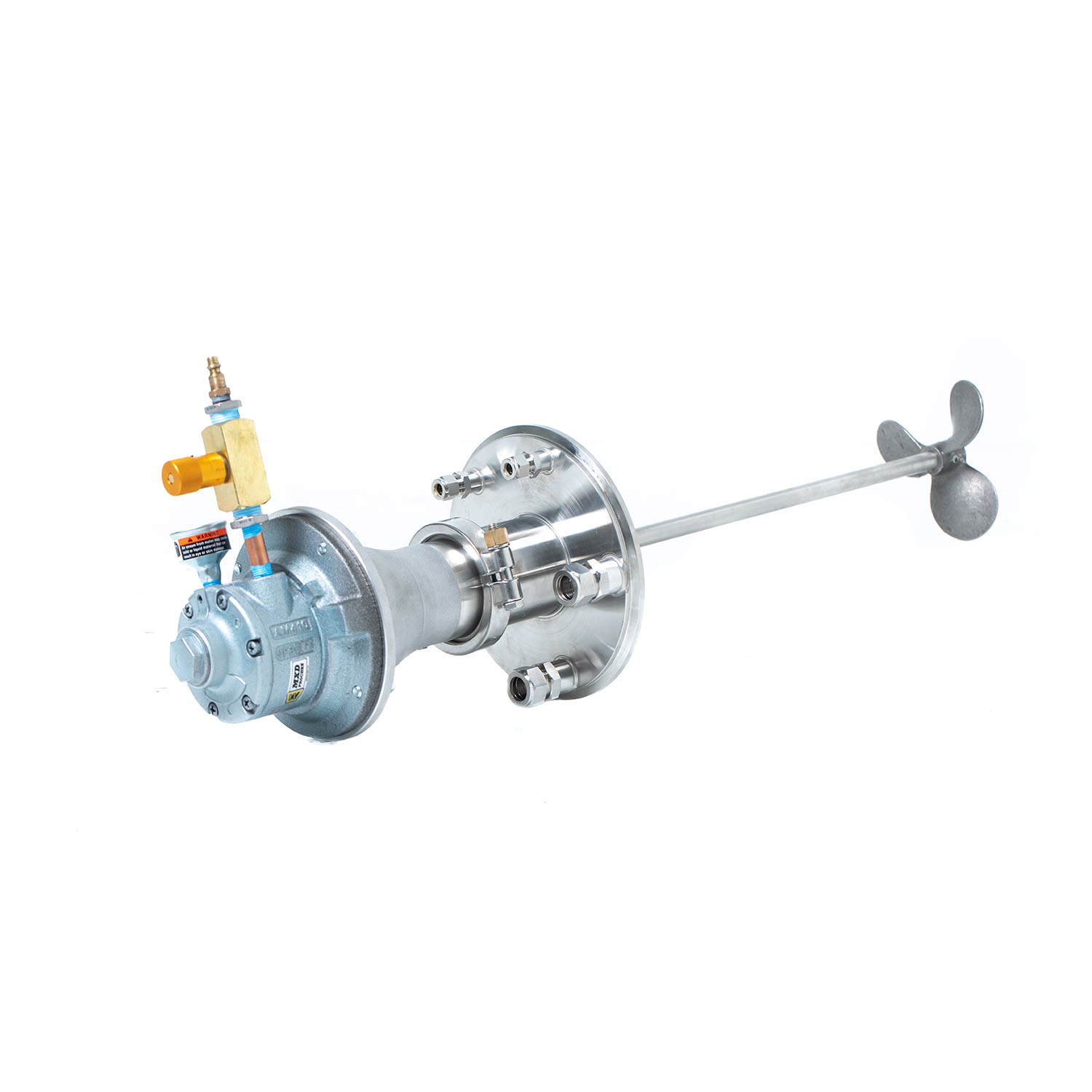

Pneumatic Tri-clamp mounted stirrer
Compatible with multiple TCU’s for processing through any temperature range from -40°C to 150°C
Large bore bottom opening for crystal removal

Model:
RV 100 Reactionary Vessel

Dimensions (approx.):
30” L x 30” W x 50” H

Weight:
410 lbs

Shipping Weight:
515 lbs

MAWP:
15 PSIG

Working Temp. Range:
-40°C to 150°C

Working Pressure:
Vacuum to 15 PSIG

Max Fill Volume:
100L

Internal Jacket Volume:
21.93L

Warranty**:
One year

Stirrer Motor:
1.5 HP Air Motor (Lube-free, Maintenance-free)

Stirrer Max. Air Consumption:
42 CFM @ 80 PSI

Stirrer Min. Air Consumption:
16 CFM @ 20 PSI

Max Stir Pressure:
80 PSI

Max Stir Rate:
2000 RPM

Compliance:
Class 1 Division 1 Compliant
