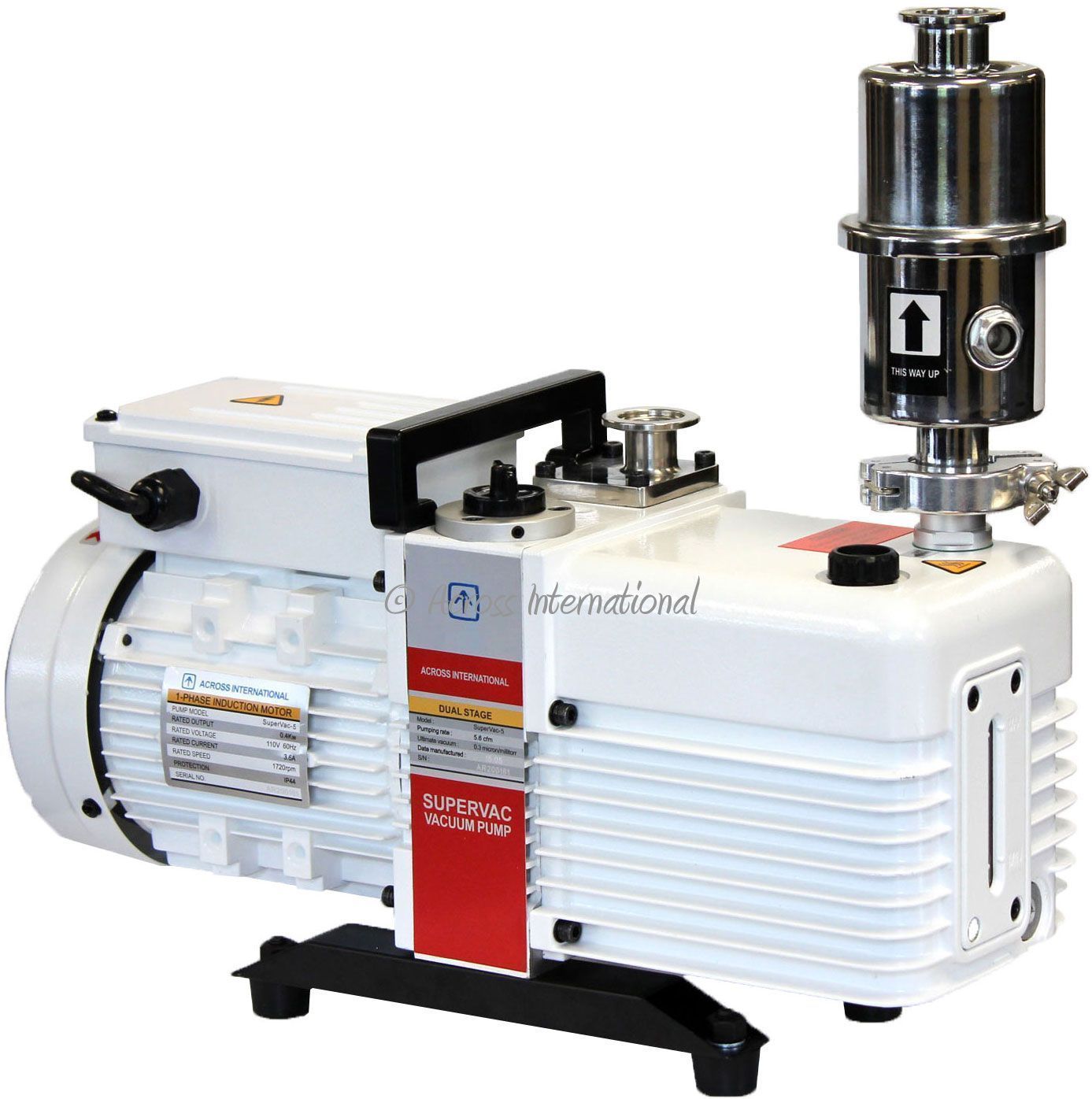

Description
Electrical requirements
115V or 220V switchable, 50/60Hz single phase, 370 watts

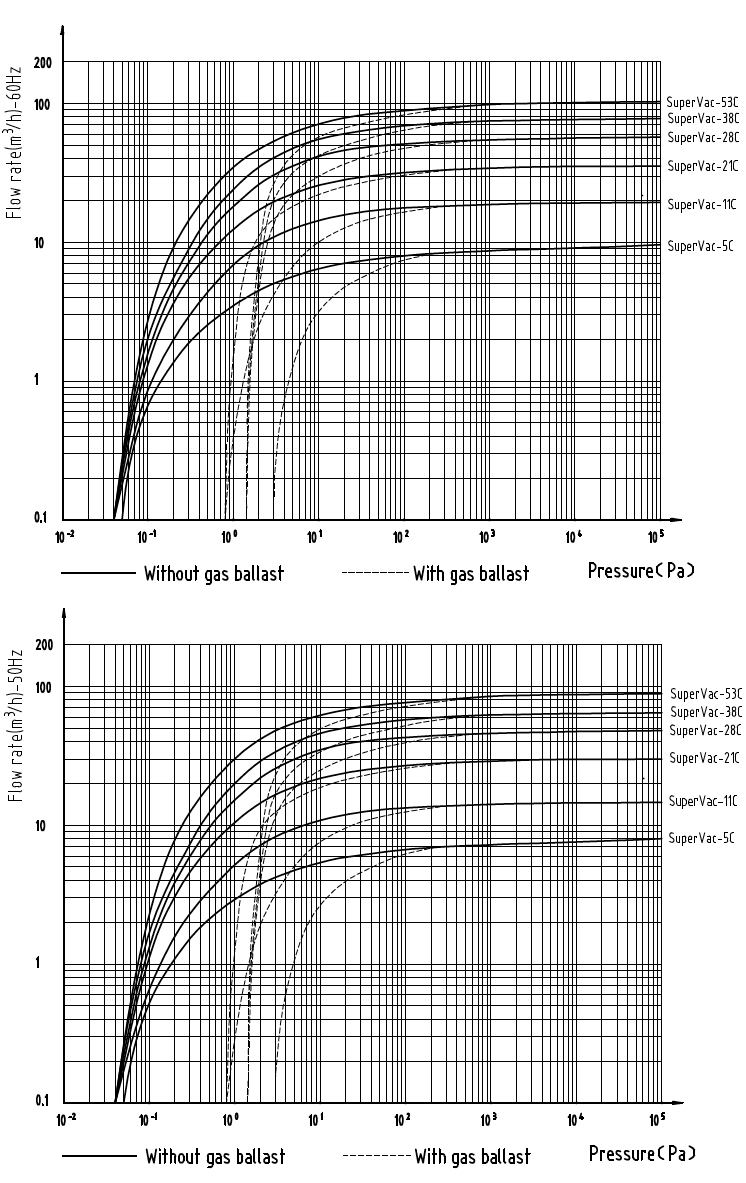

Pumping rate
5.6 cfm
Ultimate vacuum without gas ballast
0.3 micron/millitorr
Ultimate vacuum with gas ballast
6 micron/millitorr

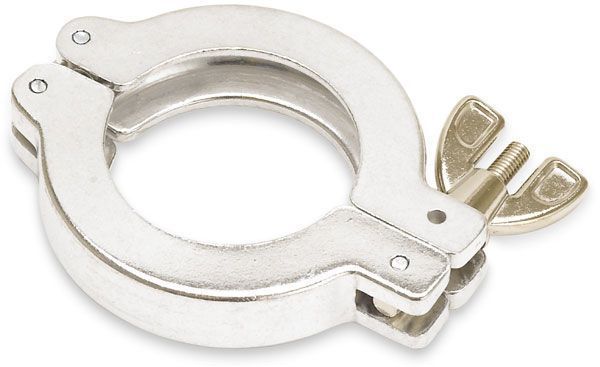

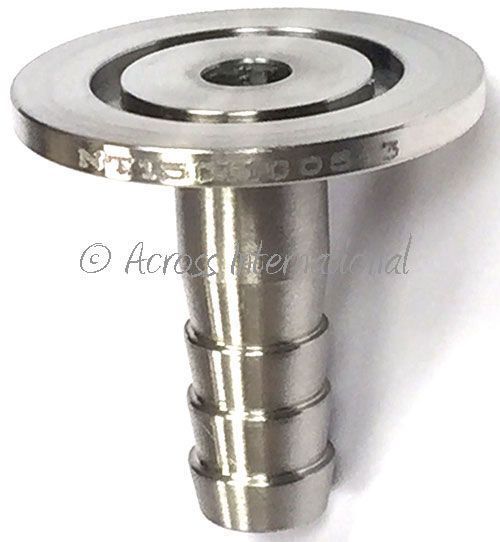

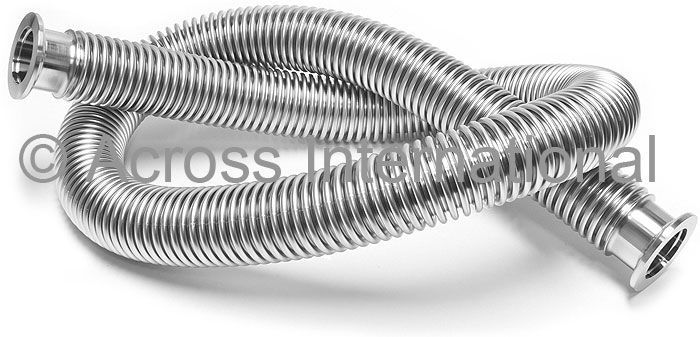

Inlet/outlet connection
KF25/NW25 flange
Oil volume
1 liter / 1.06 quart
Motor speed
1450 rpm (50Hz) or 1720 rpm (60Hz)
Working temperature
5 to 40°C
Unit dimensions (LxWxH)
17 x 6.75 x 9.75″ or 17 x 6.75 x 16″ (with filter)
Shipping dimensions (LxWxH)
23 x 8.5 x 13″
Unit weight
47 Lb
Shipping weight
55 Lb
Recommended oil
Ultragrade 19
Noise level
< 56 dB
Warranty
Two years
Download
Product brochure
Compliance
UL (E500328), CE
