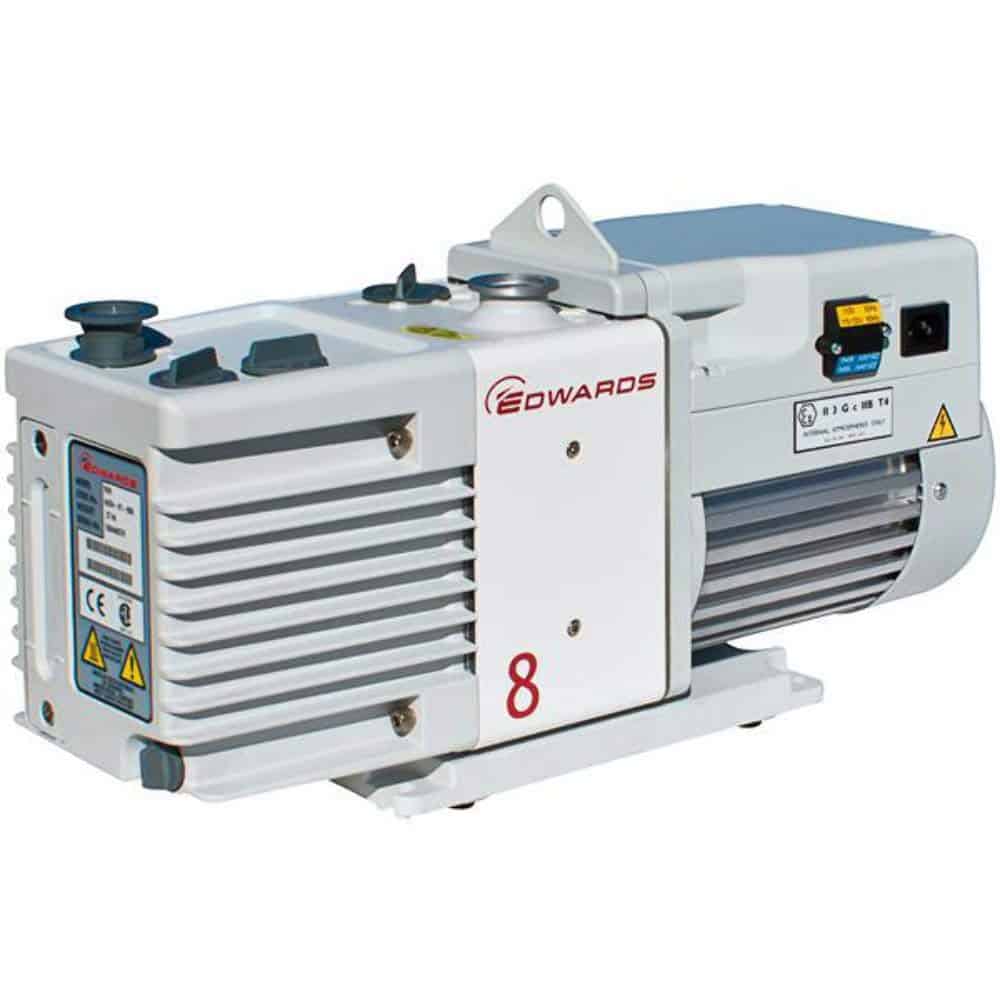

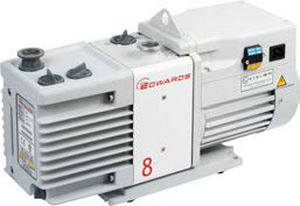

Edwards RV8 6.9 CFM Dual-Stage Vacuum Pump with Bellow & Fitting

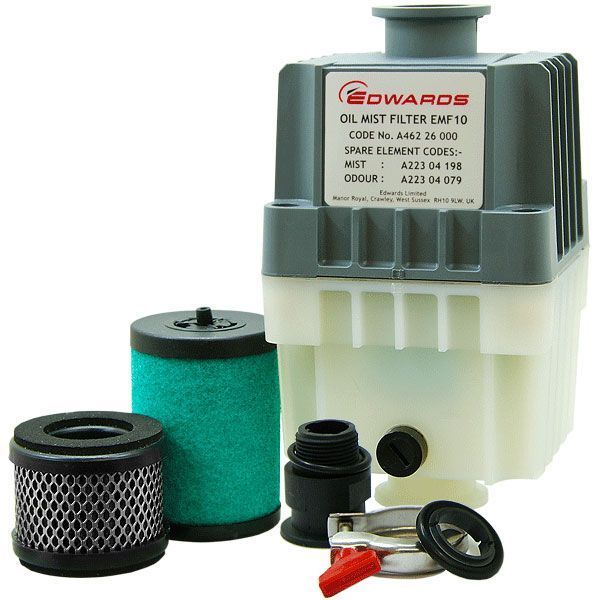

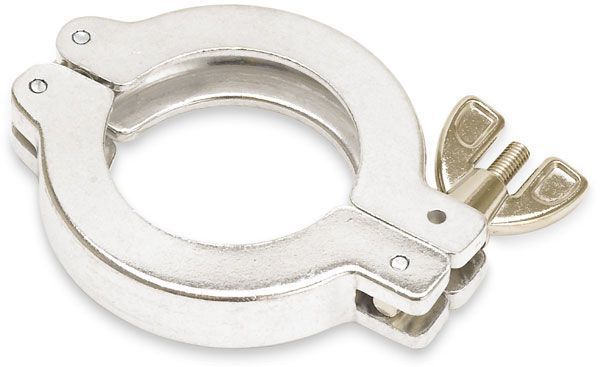

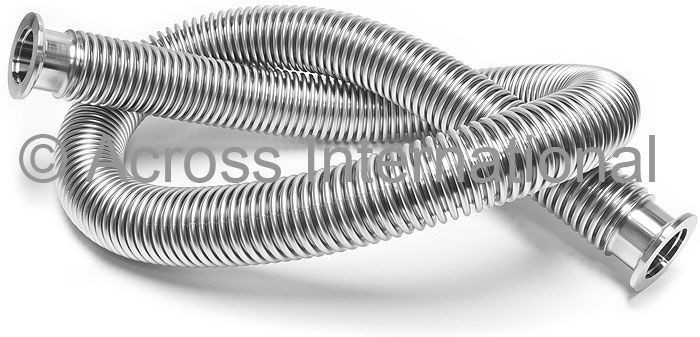

Free KF25 flexible stainless steel bellow (3.3 ft), clamps and centering rings set ($219 value) included for immediately use (mist filter NOT included). Technical support and one year warranty covered by Edwards.

SKU: 4200747 Category: Tag:



 Vacuum pump type
 Dual stage rotary vane

 110V 50/60Hz 1-PH 5A or 220V 50/60Hz 1-PH 2.1A

 Power connection
 US standard 3-prong plug (NEMA 5-15P)

 Motor power at 50Hz
 450 watts

 Motor power at 60Hz
 550 watts

 Peak pumping speed
 6.9 CFM at 60Hz

 Ultimate vacuum without gas ballast
 1.5 micron/millitorr

 Ultimate vacuum with gas ballast
 60 micron/millitorr

 Unit dimensions (WxDxH)
 18.5 x 6.2 x 8.9″

 Shipping dimensions (WxDxH)
 31 x 11.5 x 19″

 Max water vapor inlet pressure

 28.5 torr (38 mbar)

 Max allowed pressure at outlet

 0.2 bar gauge/2.8 psig

 Operating temperature range

 54°F to 104°F (12°C to 40°C)

 Oil capacity
 Minimum 0.48 quart (0.45 L), maximum 0.8 quart (0.75 L)

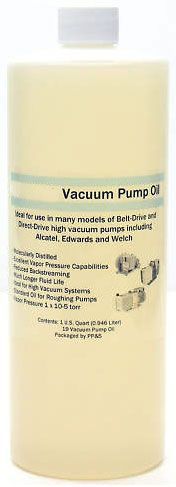

 Oil type
 Ultragrade 19

 Nominal rotation speed at 50/60Hz
 1500/1800 rpm

 Noise level
 48 dB(A)

 Inlet connection

 Outlet connection

 Unit weight
 57 Lbs

 Shipping weight
 70 Lbs

 User’s manual
 Click here to download
