Description
All Chilling/Heating Fluids
All Vacuum Clamps, Hoses, and Valves
Diffusion Pump
Dual-Point Vacuum Monitoring System with Valve Control (for First Stage)
EliteLab Touchscreen Control Interface
Heated Circulators
High Capacity/High Vacuum
Diaphragm Pump
Rotary Vane Pump Oil Mist Filter
Tempered Water Units
Three-Point Vacuum Monitoring System (for Second Stage)
Vacuum Pre-Filter for Dry Pump
5-20 kg/hour Input Feed Capability – variable based on feedstock
Cold Traps
Common Skid Frame
Compound Pressure Gauges

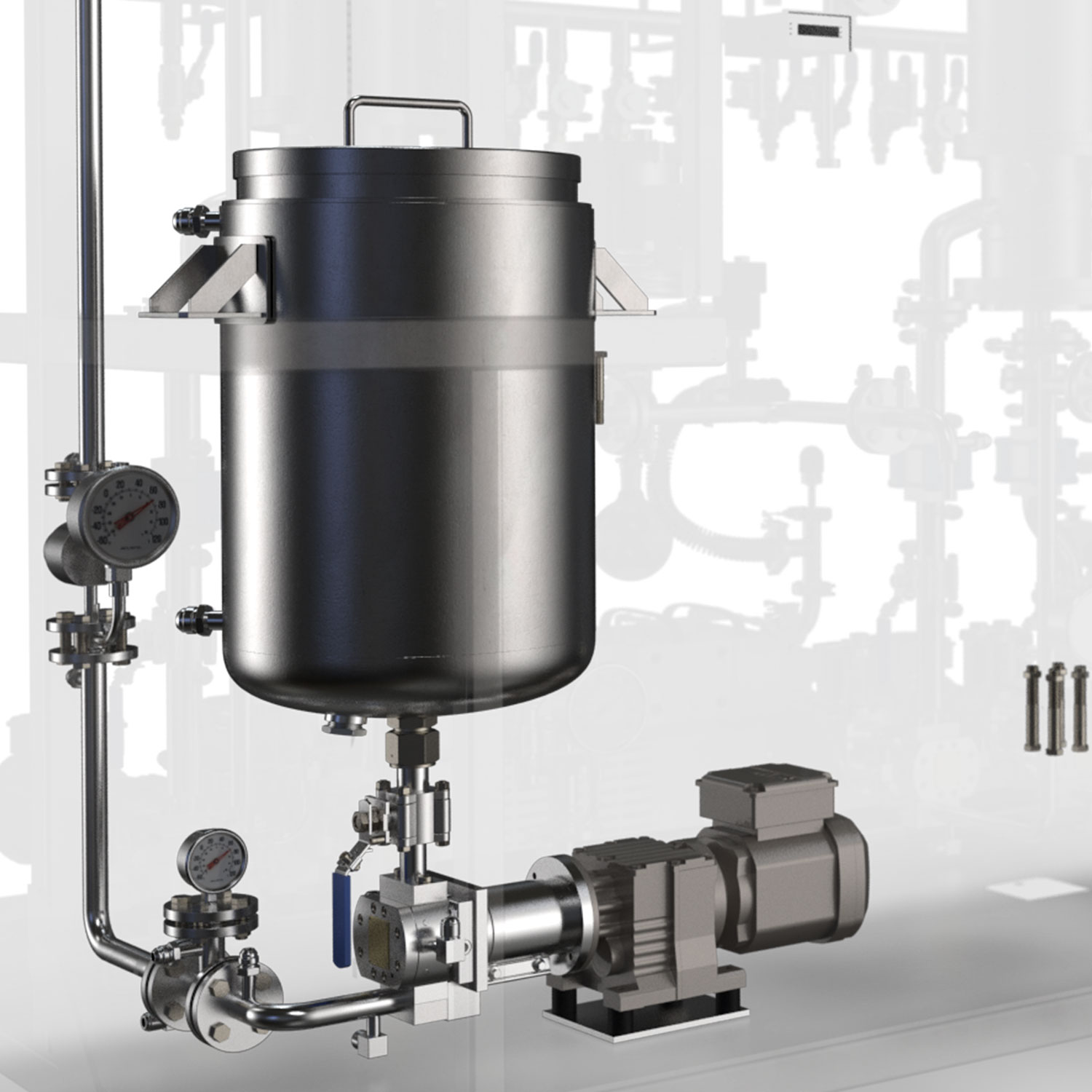

Jacketed Feed Tank – 8-gallon
Jacketed Stainless Steel Piping
Manual Valves

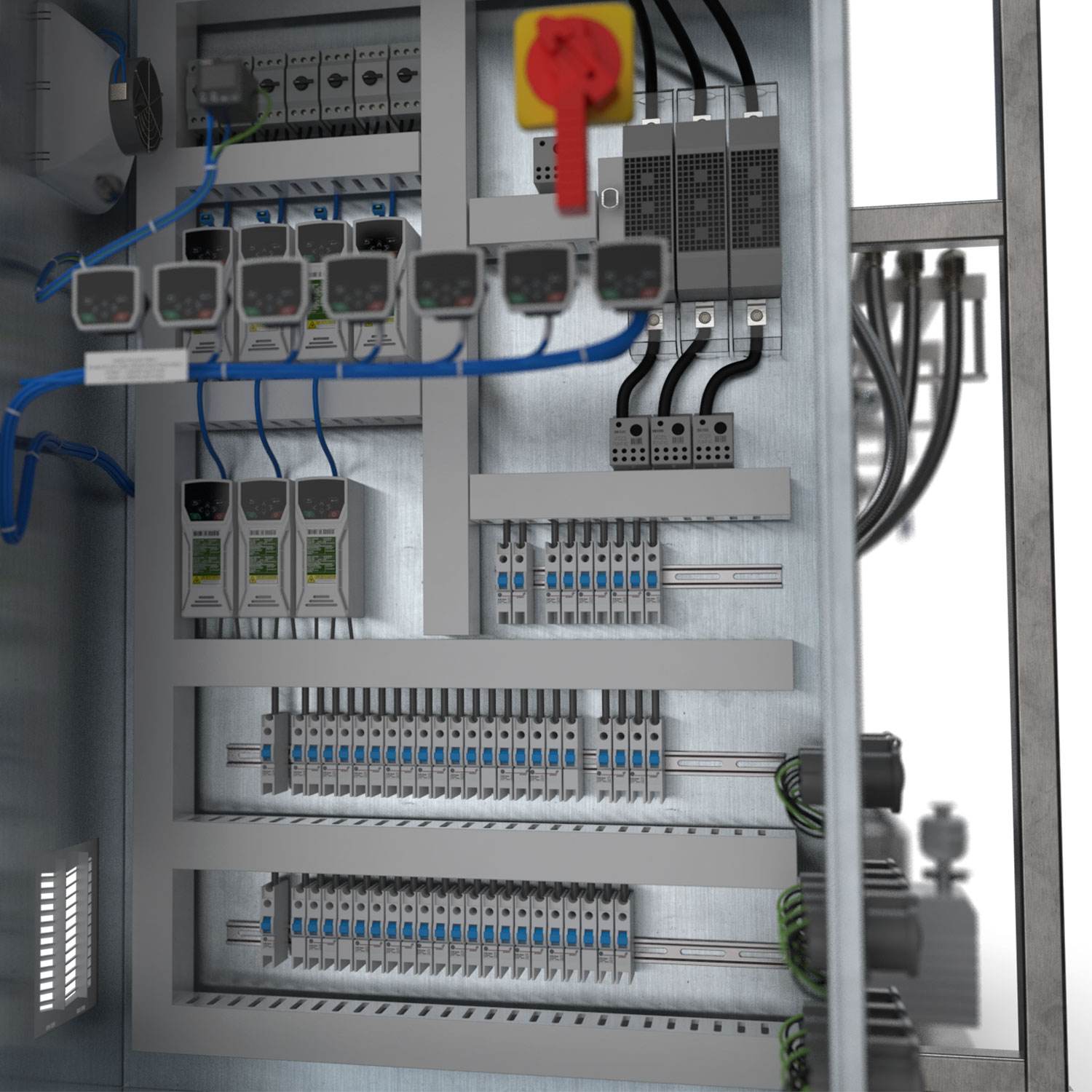

Mounted VFDs – for precise control
Vacuum Pressure Indicators
Process Pumping System
Sight Glasses

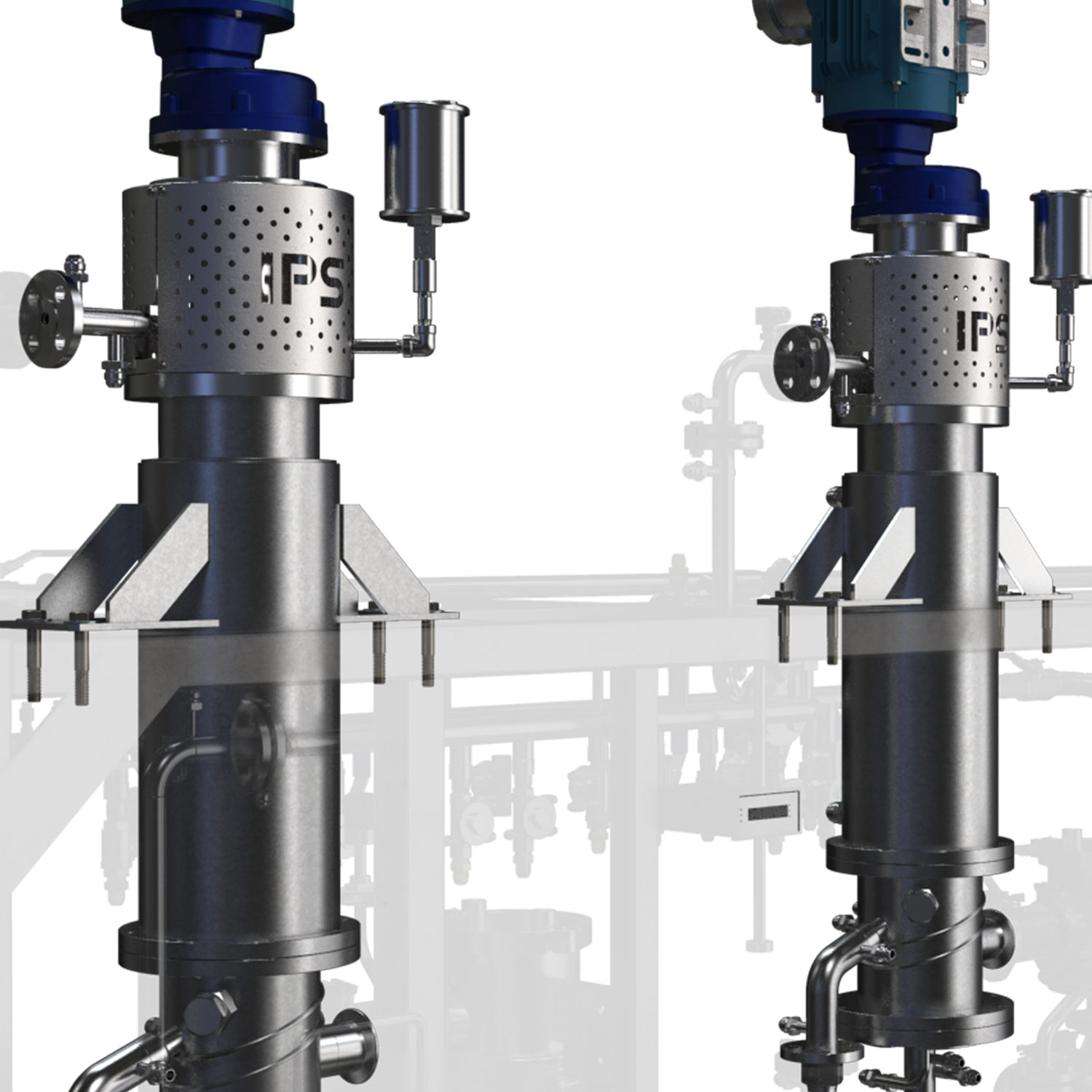

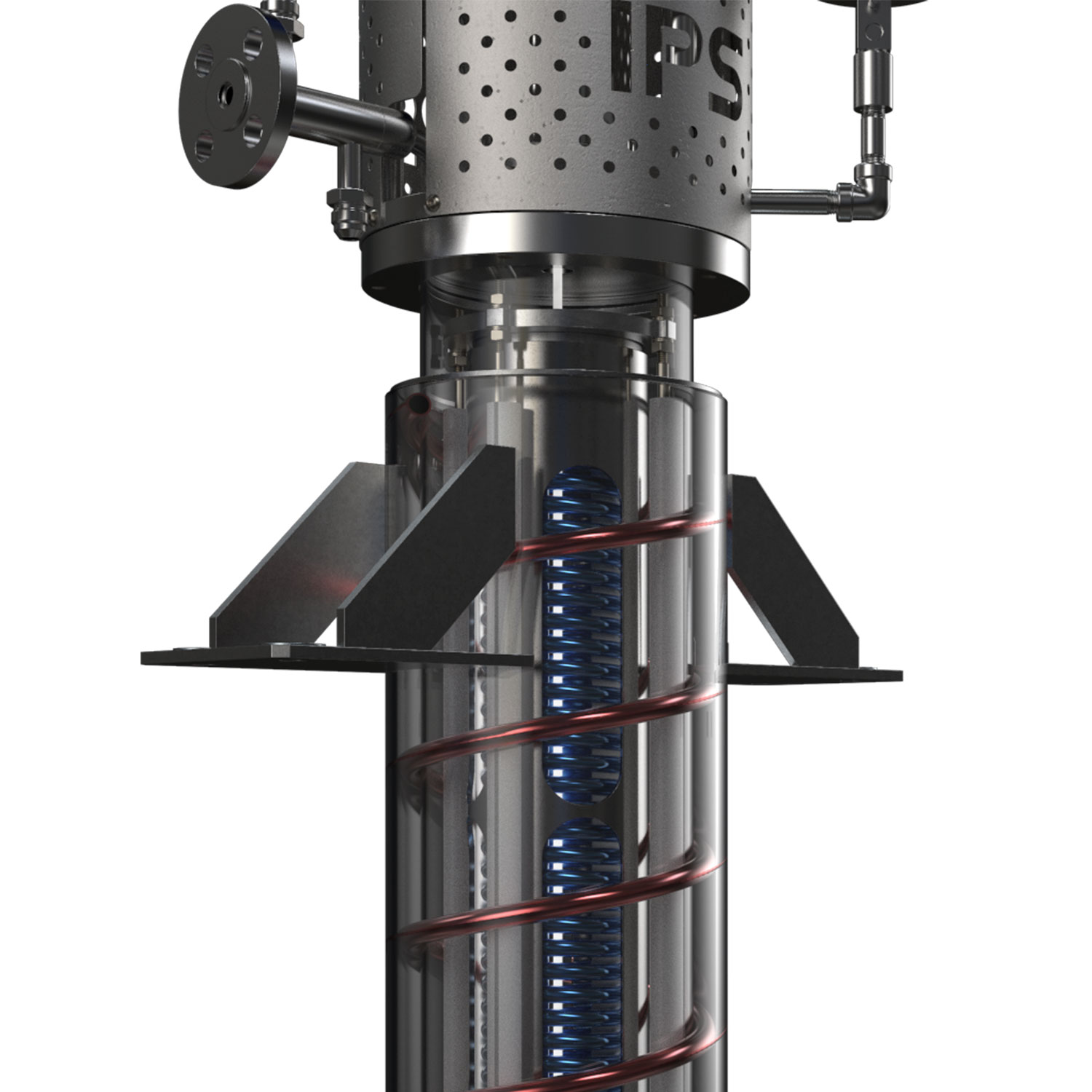

Total of 0.4 m² Short Path Evaporator
(2) 0.2 m² Evaporators Inline
Chiller: -30°C to -50°C – included
Chiller: -60°C to -80°C for an additional $15,000.00 – recommended
LS-PVM-2V – 2-point Vacuum Monitoring System Isolation Valve; one (1) Compound Pressure Sensor with valve control, one (1) Thermocouple Vacuum Sensor
LS-PVM-3 – 3-point vacuum monitoring system; three (3) thermocouple vacuum sensors
HB Therm, Huber, & Julabo – Temperature Controllers
