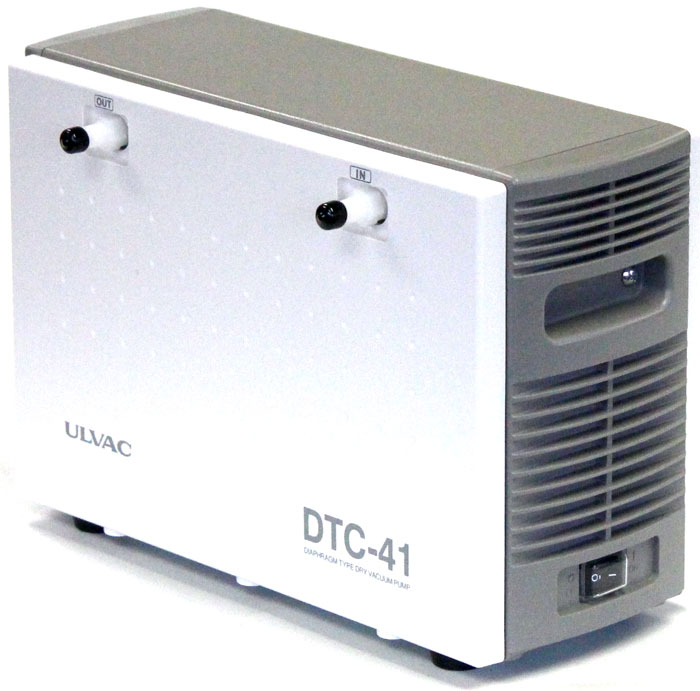

ULVAC DTC-41 1.6 cfm 2-Stage Chemical-Duty Diaphragm Pump TUV

1,990.00$

Manufactured and imported directly from Japan, ULVAC DTC series diaphragm pumps feature integral forced-air cooling. They have two-stage PTFE diaphragms that are ideal for pumping corrosive gases and organic solvents. These pumps are oil-free, portable, and chemical-resistant, which means less maintenance and no more frequent and costly oil change, or cross contamination.

SKU: 4200763 Category: Tag:

Description

 Model
 ULVAC DTC-41

 Part number
 1042840

 Electrical requirements
 115V 60Hz or 230V 50/60Hz, single phase 0.13HP, 100 watts

 Full load current
 1.1 amps

 Pumping rate
 1.62 cfm (6 minutes to pump down a 0.9 cu ft oven)

 Gasket material
 All-PTFE

 Ultimate vacuum level
 7.5 torr / 10 mbar

 Inlet/Outlet
 3/8″ hose barb

 Adjustable vac./gas ballast
 No

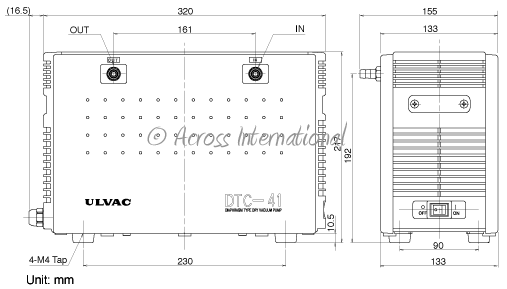

 Pump dimensions (LxWxH)
 13 x 5.5 x 8.5 inches

 Shipping dimensions (LxWxH)
 15 x 9 x 10 inches

 Pump weight
 23 Lb

 Shipping weight
 26 Lb

 Noise
 53 dB(A)

 Working environment
 32°F to 104°F (0°C to 40°C)

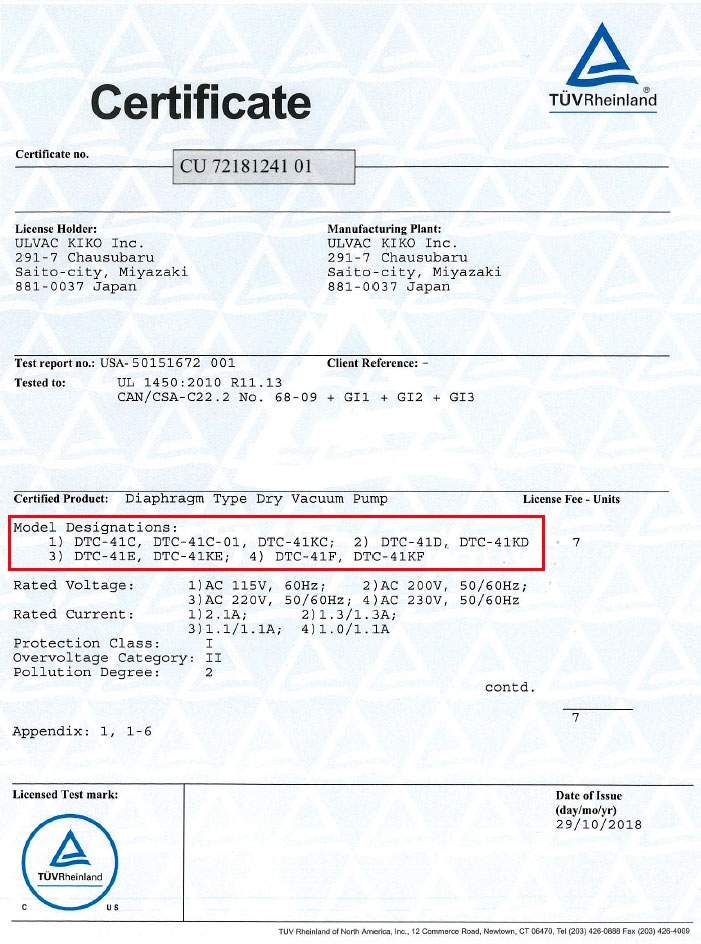

 Compliance
 TUV certified to UL and CSA standards
