Description
Electrical requirements
110 Volts 50/60Hz single phase, 1/3 HP 250 watts
Type
Belt-drive rotary vane mechanical vacuum pump
Application
Rotary evaporation/distillation

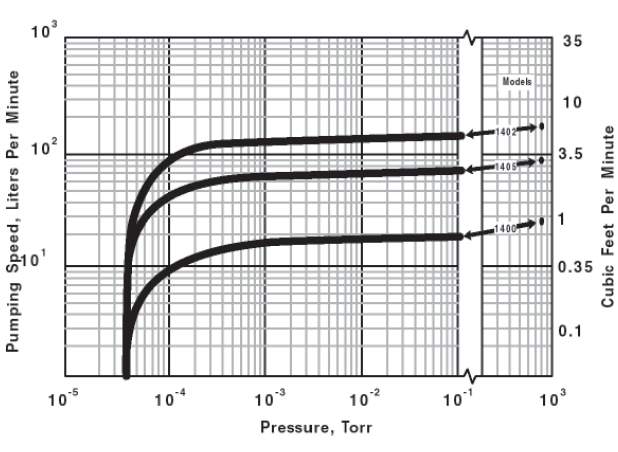

Pumping rate
0.9 cfm
Oil capacity
0.63 quart / 0.6 liter
Ult. vacuum pressure
0.1 micron
Motor speed
580 rpm
Intake ID (vacuum connection)
7/16 inch
Intake/exhaust thread size
3/4-20
Adjustable vac./gas ballast
Yes

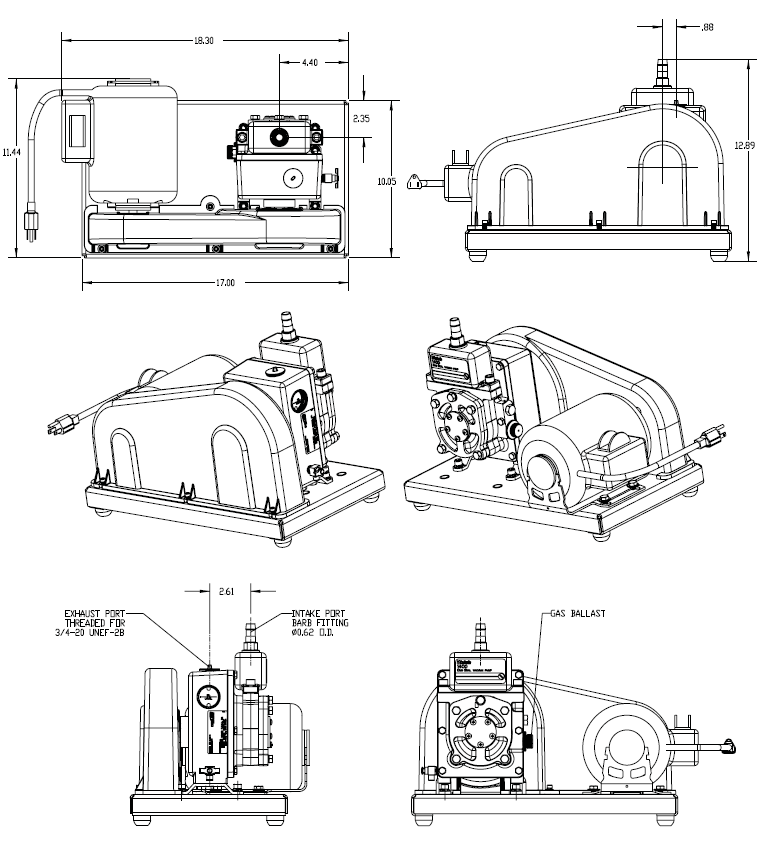

Pump dimensions (LxWxH)
17.8 x 9 x 12.6″
Shipping dimensions (LxWxH)
20.5 x 13.8 x 14.5″
Pump weight
70 Lb
Manual
Click here to download
Compliance
CSA
