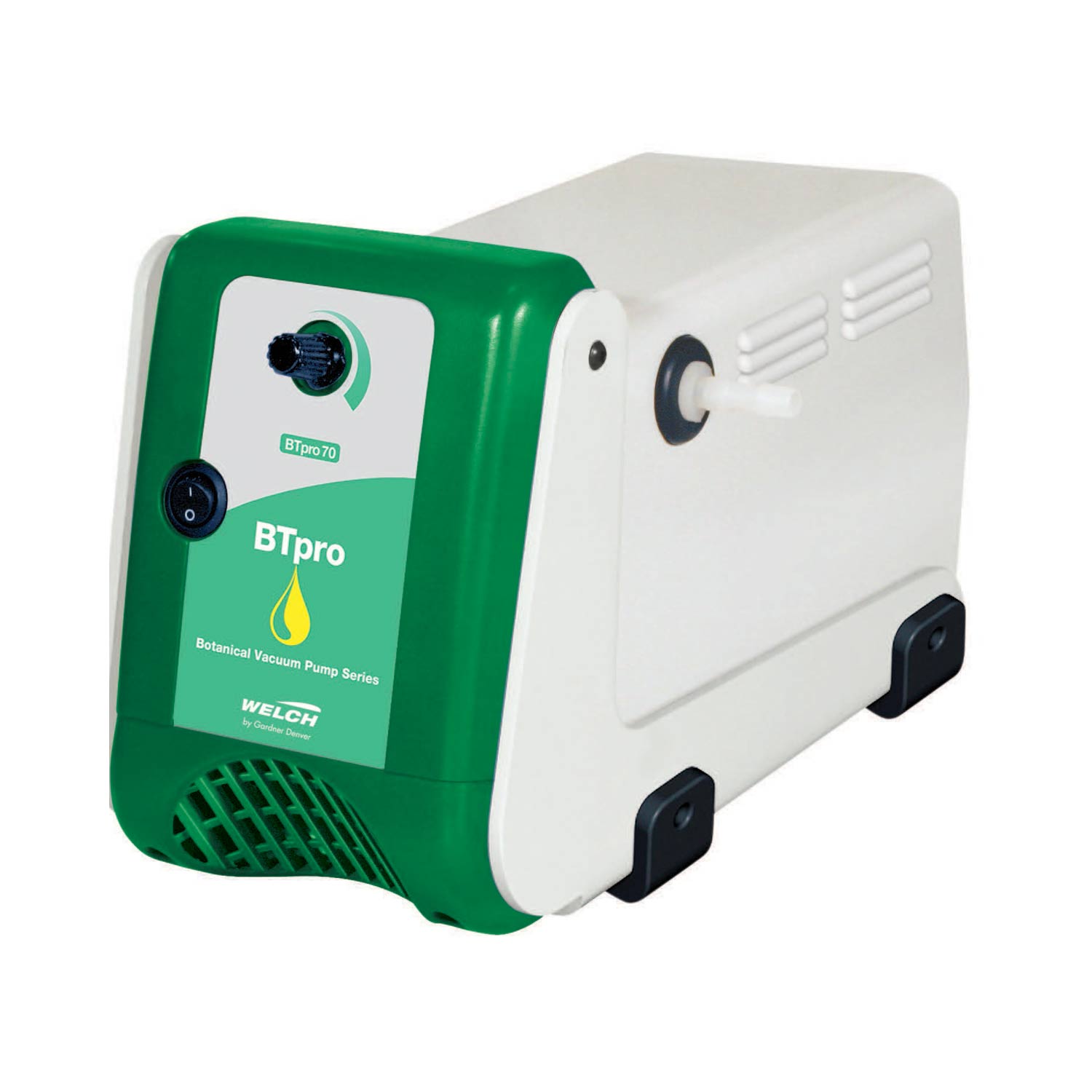

Welch BTPro Botanical Vacuum Pump 70 – 115V / 60Hz

$3,781.76

Welch BTpro vacuum pumps provide reliable performance and high flow for your rotary evaporator, glass reactor, vacuum purge oven, or winterization & filtration apparatus.

SKU: 4201300 Category:

Description

MODEL
BTpro 40
BTpro 70
BTpro 100
BTpro 170

Free Air Displacement @ 60Hz (CFM)
1.4
2.5
3.5
6

Ultimate Vacuum Pressure, Torr
15
15
6
6

Built-in Adjustable Vacuum
Yes
Yes
~
~

Gas Ballast
~
~
Yes
Yes

Head Material
PTFE
PTFE
PTFE
PTFE

Diaphragm Material
PTFE
PTFE
PTFE
PTFE

Inlet/Outlet Connection
3/8″ Barb
3/8″ Barb
NW(KF)16
NW(KF)16

Agency (National Recognized Lab)
CSA
CSA
cUL
cUL

Weight, lbs
15
21.3
40.3
72.3

Overall Dimensions (L x W x H in.)
12 x 7 x 8.3
13.8 x 6.8 x 8.8
9 x 15 x 7
21 x 11 x 12

Electrical
115V 60Hz 1 Ph
115V 60Hz 1 Ph
115V 60Hz 1 Ph
115V 60Hz 1 Ph

High flow for faster processing and throughput
Deep, reliable vacuum capability
Chemically-resistant internals and diaphragms
Oil-free for minimal maintenance

MODEL
BTpro 40
BTpro 70
BTpro 100
BTpro 170

Free Air Displacement @ 60Hz (CFM)
1.4
2.5
3.5
6

Ultimate Vacuum Pressure, Torr
15
15
6
6

Built-in Adjustable Vacuum
Yes
Yes
~
~

Gas Ballast
~
~
Yes
Yes

Head Material
PTFE
PTFE
PTFE
PTFE

Diaphragm Material
PTFE
PTFE
PTFE
PTFE

Inlet/Outlet Connection
3/8″ Barb
3/8″ Barb
NW(KF)16
NW(KF)16

Agency (National Recognized Lab)
CSA
CSA
cUL
cUL

Weight, lbs
15
21.3
40.3
72.3

Overall Dimensions (L x W x H in.)
12 x 7 x 8.3
13.8 x 6.8 x 8.8
9 x 15 x 7
21 x 11 x 12

Electrical
115V 60Hz 1 Ph
115V 60Hz 1 Ph
115V 60Hz 1 Ph
115V 60Hz 1 Ph
