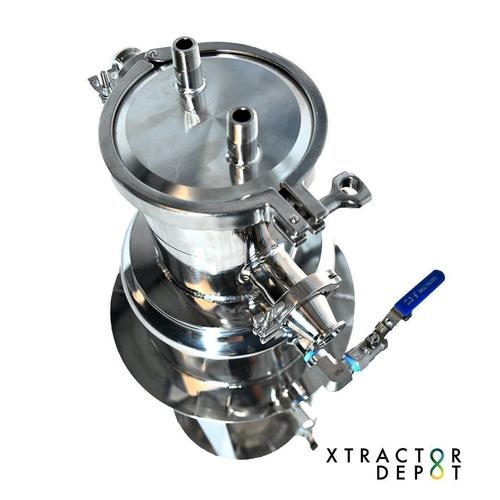

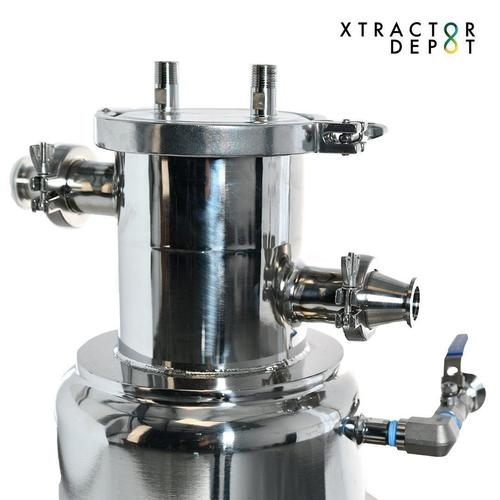

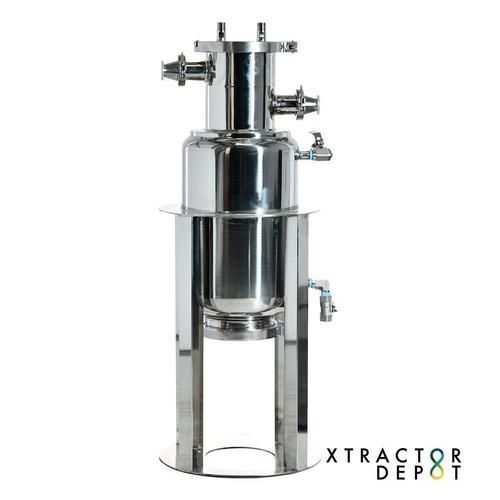

Xtractor Depot CryoTrap 10L Stainless Steel Cold Trap with KF40

3,000.00$

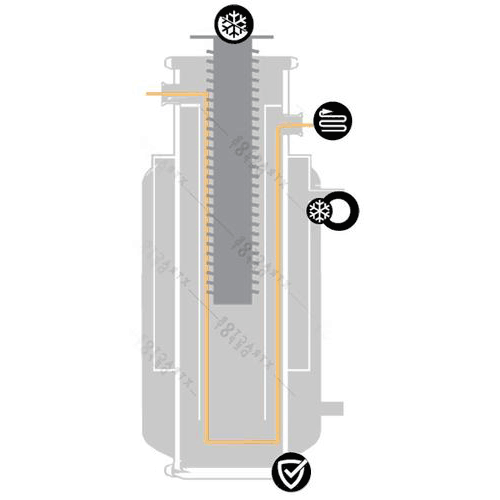

Pump repairs and replacement are an expensive hassle. Take the guesswork out of pump protection with the XD Cryotrap. Features stainess steel construction and vacuum jacket, allowing for excellent thermal insulation. An industry-leading vapor path design allows for the rapid condensation of liquids and it comes set up for use with either dry ice or a chiller.

SKU: 4200104 Category: Tag:

Description

 Model
 CryoTrap

 Internal volume
 10.3 L

 Material
 Stainless steel

 Trap connections

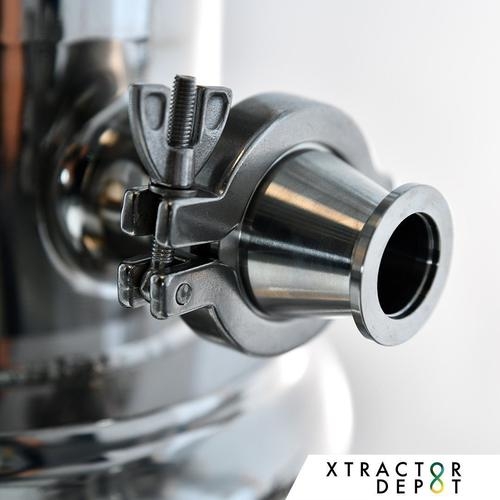

 KF40 (KF40 to KF25 adapters with KF40 clamps & o-rings included)

 Sealing gasket material
 Made of FKM, gasket does not touch the fluid, FKM is rated to -26°C

 Compatible with
 Liquid Nitrogen Dry ice with alcohol Chiller with Dynalene

 Recommended chiller
 -80°C

 Weight and dimensions
 Cold trap/coil: 95 lbs, 14 x 14 x 36″ (WxLxH) Palletized: 155 lbs, 40 x 45 x 41″ (WxLxH), freight class: 250

 Included with purchase

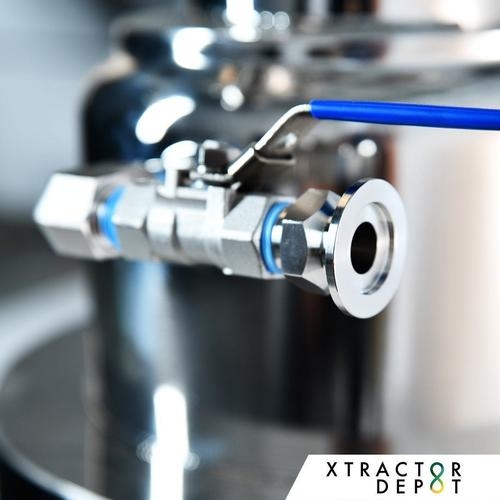

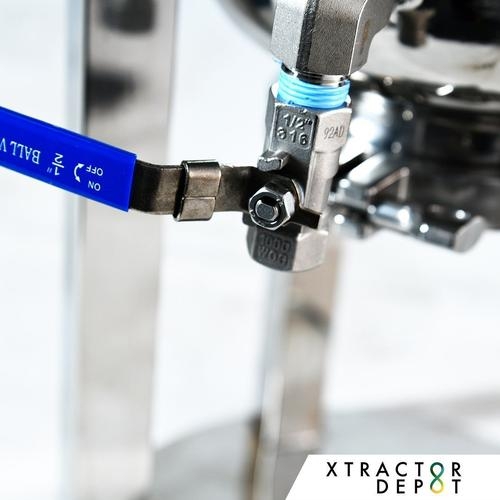

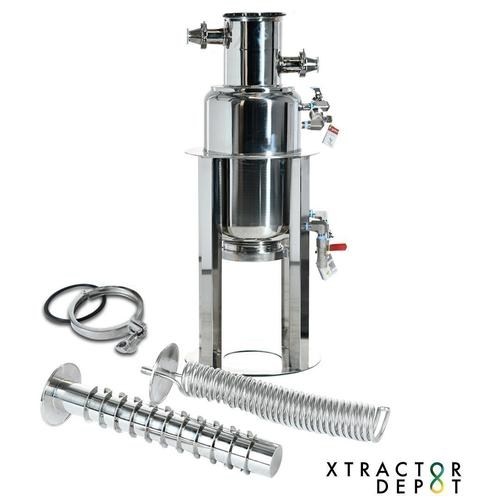

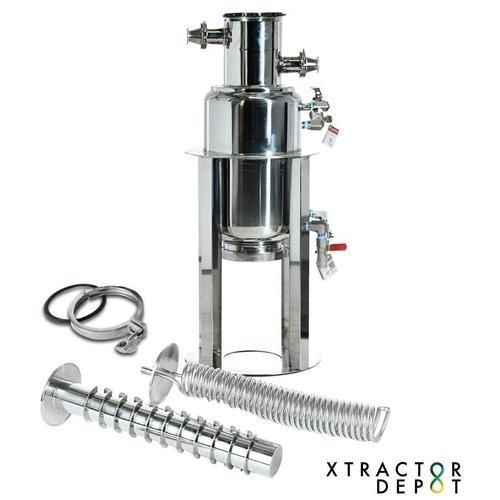

    (1) Dry Ice Insert    (1) Chilling Coil Insert    (2) 6″FKM Flanged Gaskets    (1) 6″ Inline Sight Glass    (2) 6″ Single Pin Clamps    (1) 6″ Flat Cap w/ 1/2″ MNPT    (1) 1/2″ Full Port Ball Valve    (1) 1/2″ MNPT x 1/2″ Barb    (3) KF 25 Quick Clamp w/ O- Ring Sealing    (2) KF 40 Quick Clamp w/ O- Ring Sealing    (2) KF25 to KF40 Adapter

 Download

 Product brochure
