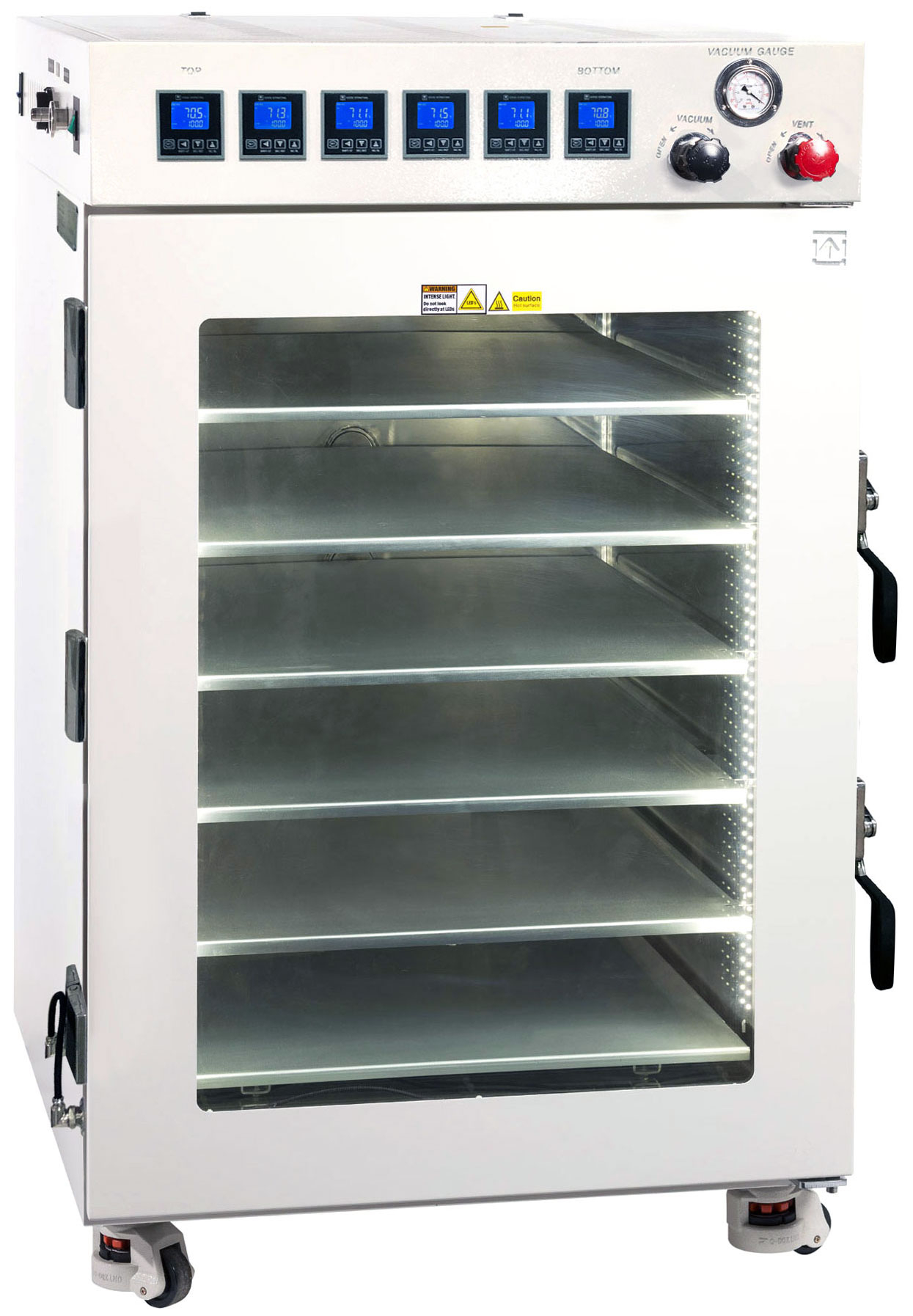

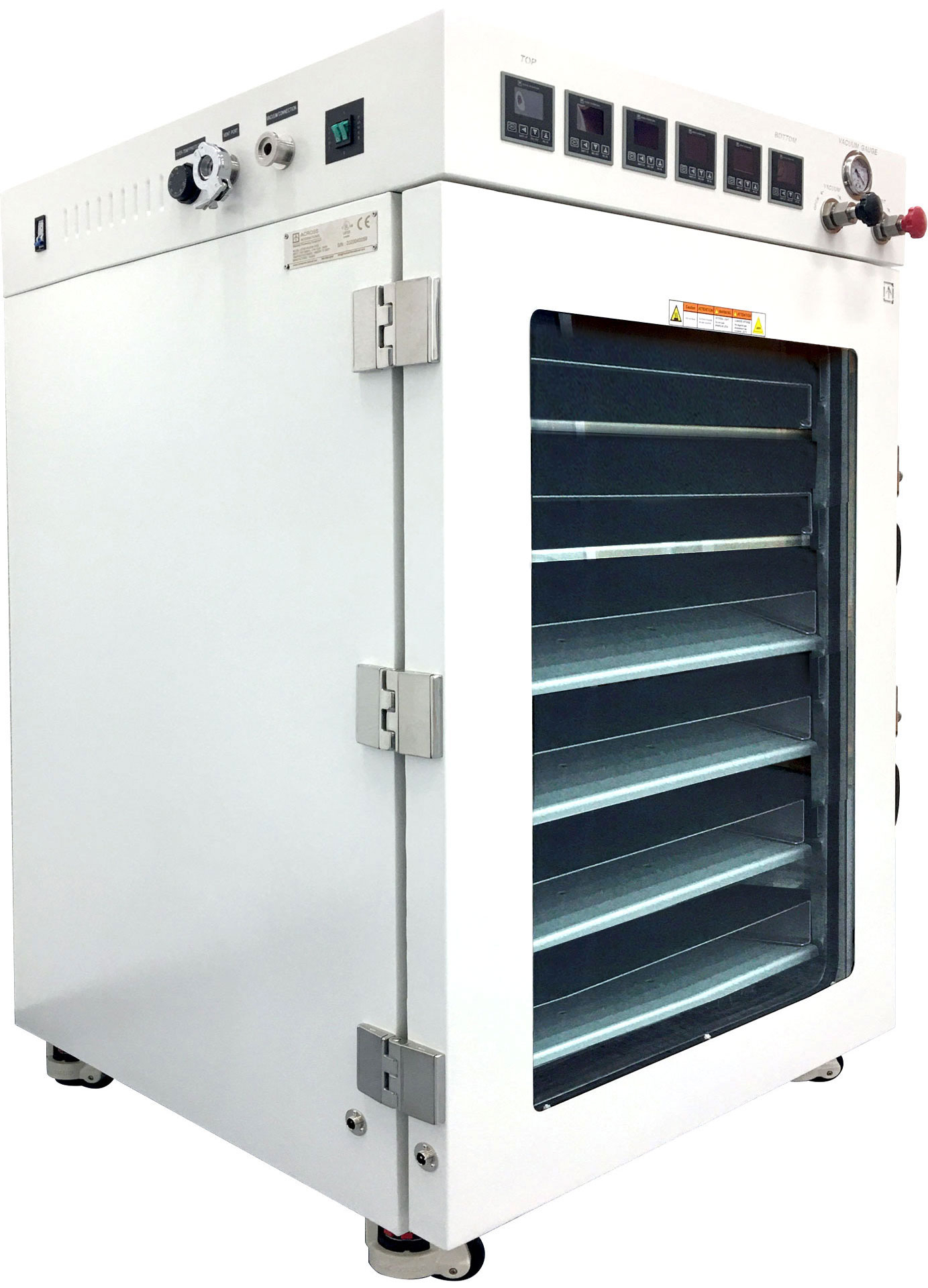

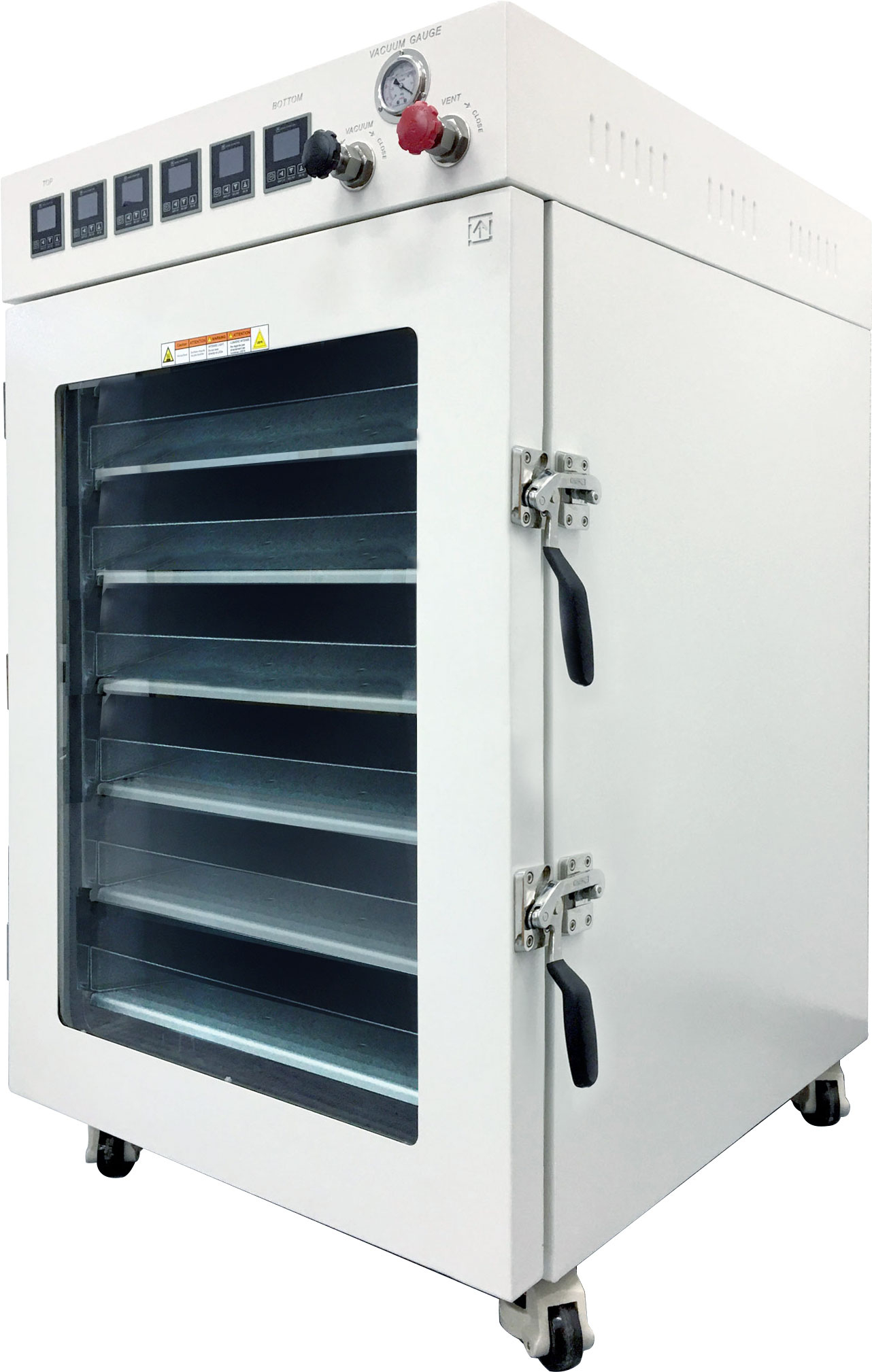

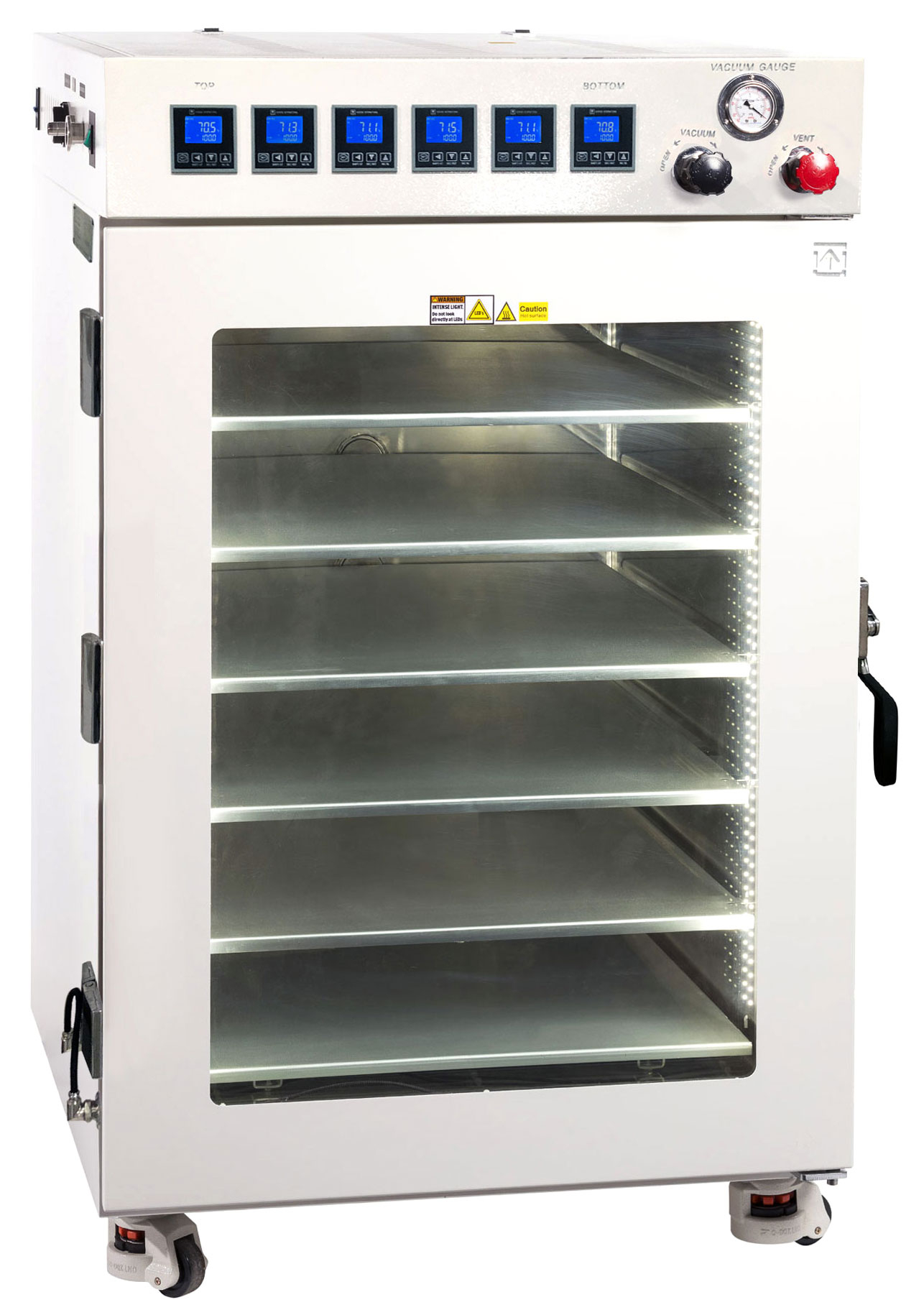

100C UL Certified 16 CF Vacuum Oven w/ 6 Shelves & SST Tubing

15,790.00$

* SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.* 220V model’s door opens from the left.

SKU: 4200645 Category: Tag:

Description

 Electrical requirements
 110V /-10% 60Hz 1-PH 13.6A, 1,500 watts  or 220V /-10% 50/60Hz 1-PH 6.8A, 1,500 watts

 Heating
 250 watts x 6, built into 6 aluminum shelves, for the fastest, most energy efficient and uniform heating.

 Chamber
 Dimensions: 25.6 x 30 x 35.5″ (WxDxH) Material: Stainless steel Capacity: 16 cubit feet

 Temperature control
 Controller: low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 100°C (or 212°F) Display units: Fahrenheit or Celsius Uniformity: /- 5% of setpoint Dwelling timer range: 1 to 9999 minutes

 Vacuum
 Ultimate vacuum level: better than 500 microns/millitorrs          (may vary based on your altitude, click here to learn more) Mechanical vacuum gauge range: 0 to 30 inch mercury Mechanical vacuum gauge type: oil-filled Vacuum port: KF25 flange x 1 Vent port: KF25 flange x 1 Vacuum pump: Sold separately Approximate time to reach full vacuum:          With Edwards E2M28 21 cfm pump: 8 minutes          With Ai SuperVac 11.3 cfm pump: 11 minutes

 Weight
 Unit: 710 Lbs, shipping: 1114 Lbs

 Dimensions (WxDxH)
 Unit: 33 x 37 x 52″ Shipping: 46 x 39 x 60″

 Shelves
 Heated shelves: 6 non-removable aluminum shelves, 25 x 29.25 inches (WxD) each Optional stackable aluminum shelves: 25 x 29.25 x 2.375 inches (WxDxH) Distance between shelves (without stackable shelves): 5 inches Distance between shelves (with 6 stackable shelves): 2.375 inches Total area without stackable shelves: 731 x 6 = 30 sq ft or 4386 sq inch Total area with 6 stackable shelves: 731 x 12 = 60 sq ft or 8772 sq inch Max. load capacity per shelf: 20 Lbs

 Door gasket material
 Silicone or Viton

 Observation window
 1/2″ tempered safety glass

 Safety
 Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial

 In-door lights
 White LED

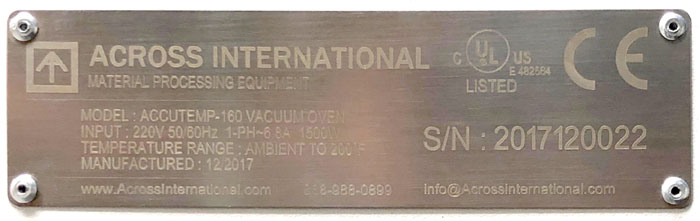

 Compliance
 UL (E482564), CE

 Warranty
 2 years

 Download
 Product brochure
