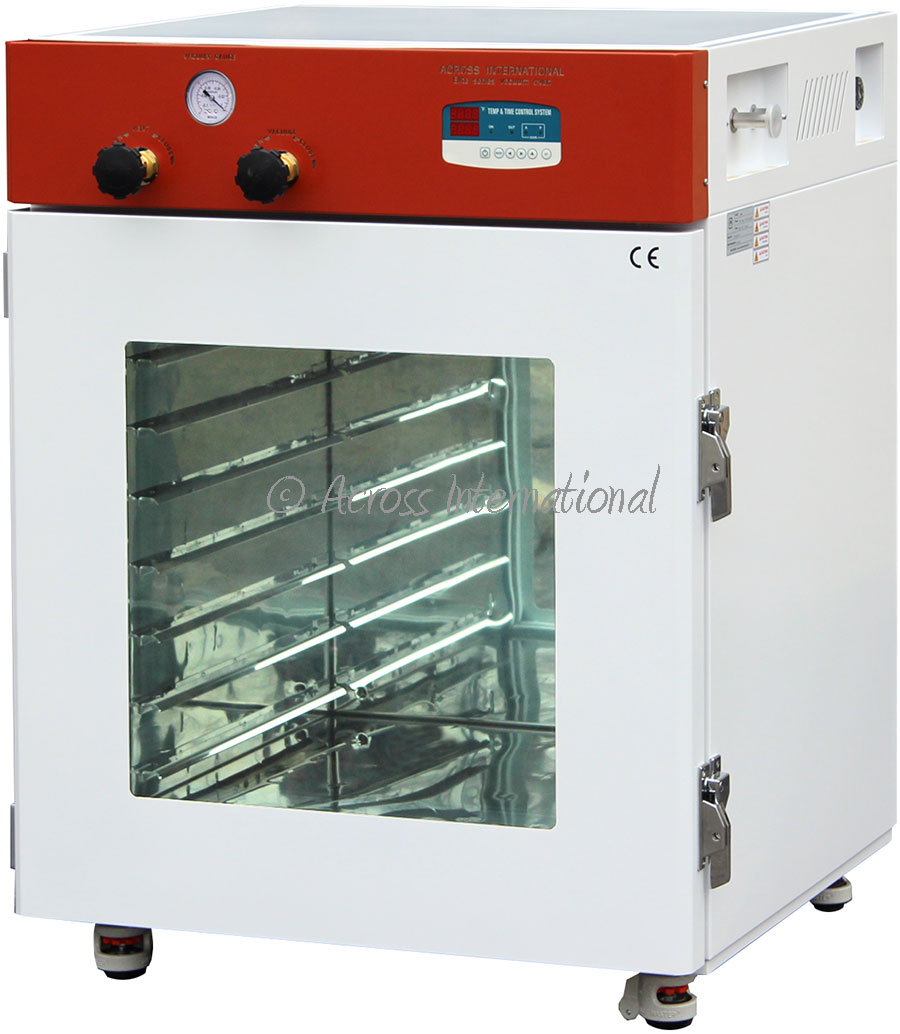

200C 7.6 Cu Ft 24x24x24 Vacuum Oven w/ 7 Aluminum Shelves – 220V

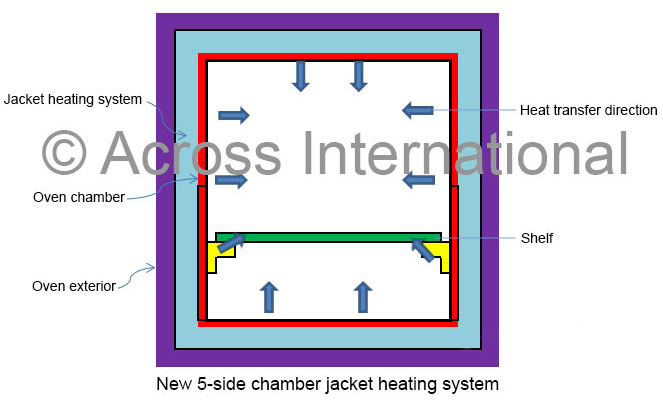

The E76 ELITE series digital vacuum ovens feature our 5-side chamber jacket heating system that covers left, right, up, down and backside of the chamber; all metal internal vacuum tubing (compare to rubber hose) for better vacuum levels and durability; and build-in secondary over-temp dial for enhanced over temperature protection. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.

SKU: 4200649 Category: Tag:


 Electrical requirements
 220V /-10% 50/60Hz single phase 20.5A, 4500 watts No plug included, customer will need to install plug base on their power setup

 Temperature control
 Controller: Low gain microcomputer PID control for heater output Temperature range: Ambient to 200°C    UL units can only be certified up to 150°C Timer range: 0 to 99 hours 59 minutes

 Dimensions: 23.6 x 23.9 x 23.6″ Capacity: 7.6 cubic foot (215 liters) Material: Polished heavy duty type 304 stainless steel Heating method: 5 sided heated jacket

 Dimensions (WxDxH)
 Unit: 34 x 32 x 45″ Shipping: 43.5 x 41.5 x 52″

 Unit: 620 Lbs Shipping: 880 Lbs

 Level: Better than 500 microns/millitorrs Vacuum port: KF25 flange Vent port: 3/8″ hose barb

 Included: 7 aluminum slide-in shelves Shelf size: 23 x 23 inches Total area: 529 x 7 = 3703 inch2 Distance between shelves: 3.25 inches

 Door gasket material

 Built-in safety switch Circuit breaker Overheat protection Power failure auto reset Time up buzzer

 Observation window
 1/2″ tempered safety glass
