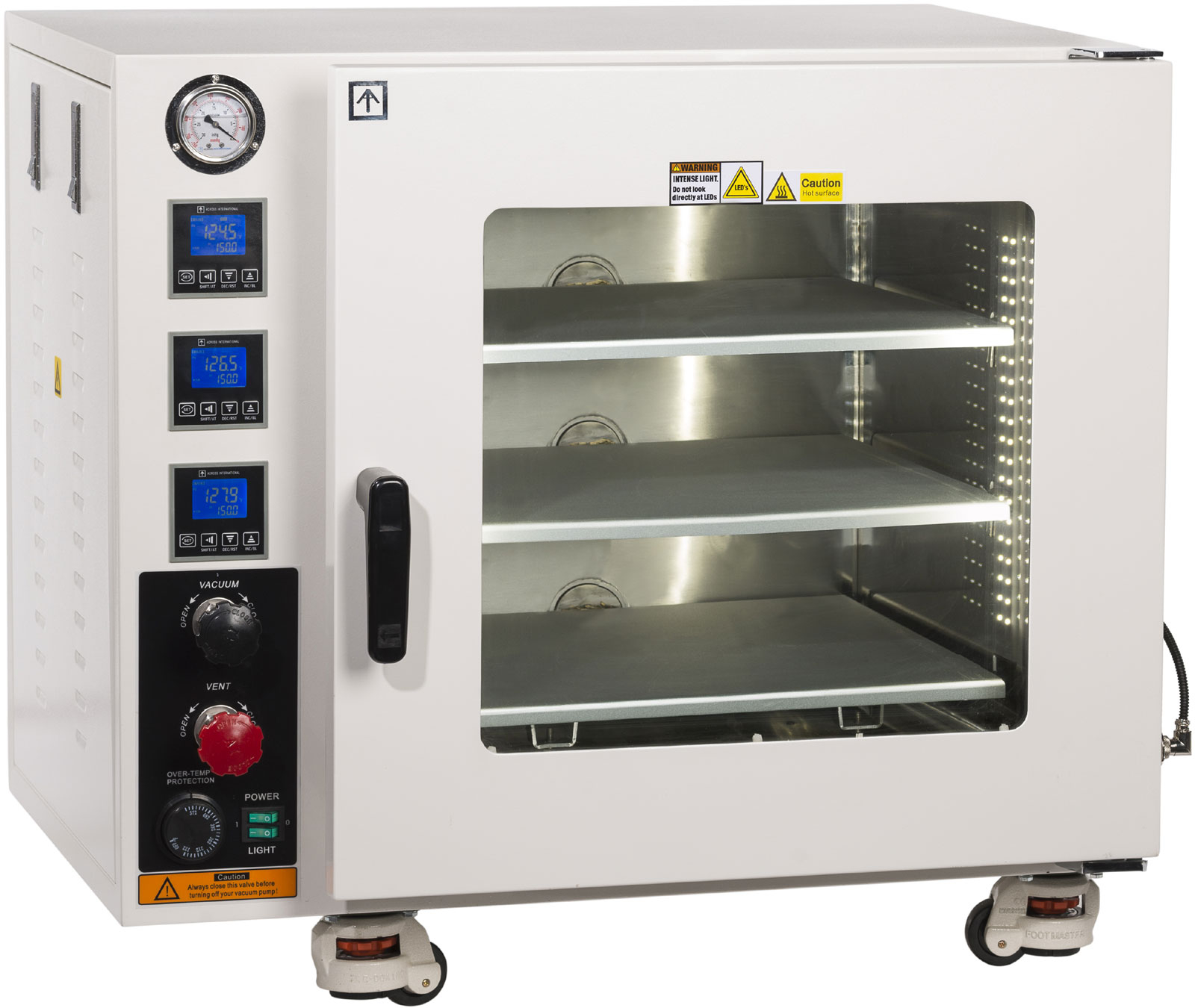

250C UL Certified 3.2 CF Vacuum Oven w/ 3 Shelves & SST Tubing

5,480.00$

SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.

SKU: 4200640 Category: Tag:

Description

 Electric
 110V /-10% 60Hz 1-PH 13.6A, 1,500 watts  or 220V /-10% 50/60Hz 1-PH 6.8A, 1,500 watts

 Heater
 500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient and uniform heating.

 Chamber
 Size: 18 x 18 x 18″ Material: Stainless steel Capacity: 3.2 cubic feet

 Temperature control
 Controller: low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 250°C (or 480°F) Display units: Fahrenheit or Celsius Uniformity: /- 5% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 35 minutes Warm-up time to 480°F: 60 minutes

 Vacuum

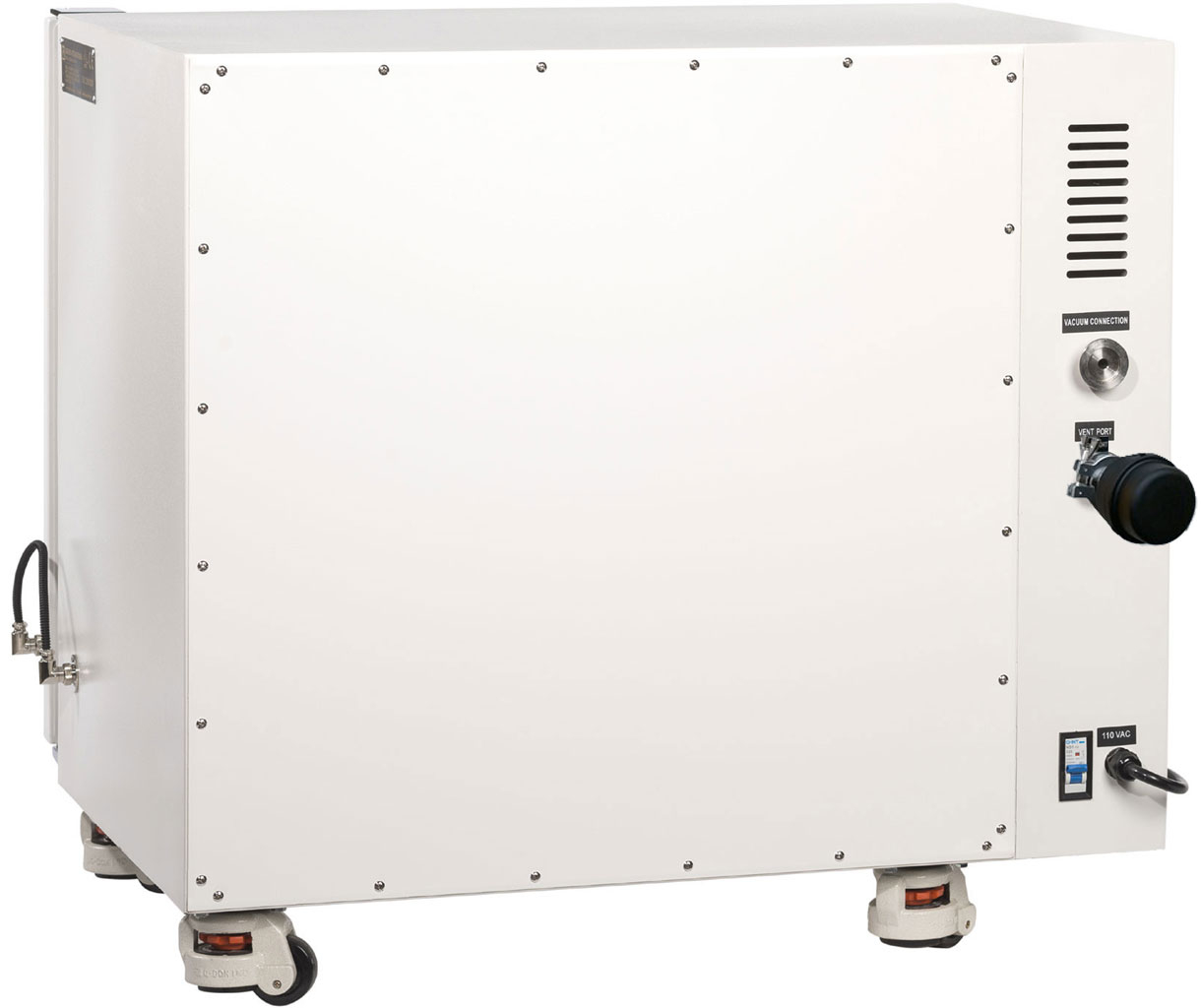

 Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude, click here to learn more) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: KF25 flange x 1 Vacuum pump: Sold separately

 Weight
 Unit: 260 Lbs, shipping: 400 Lbs

 Dimensions (WxDxH)
 Unit: 30.5 x 24 x 29″ Shipping: 36 x 33 x 35″

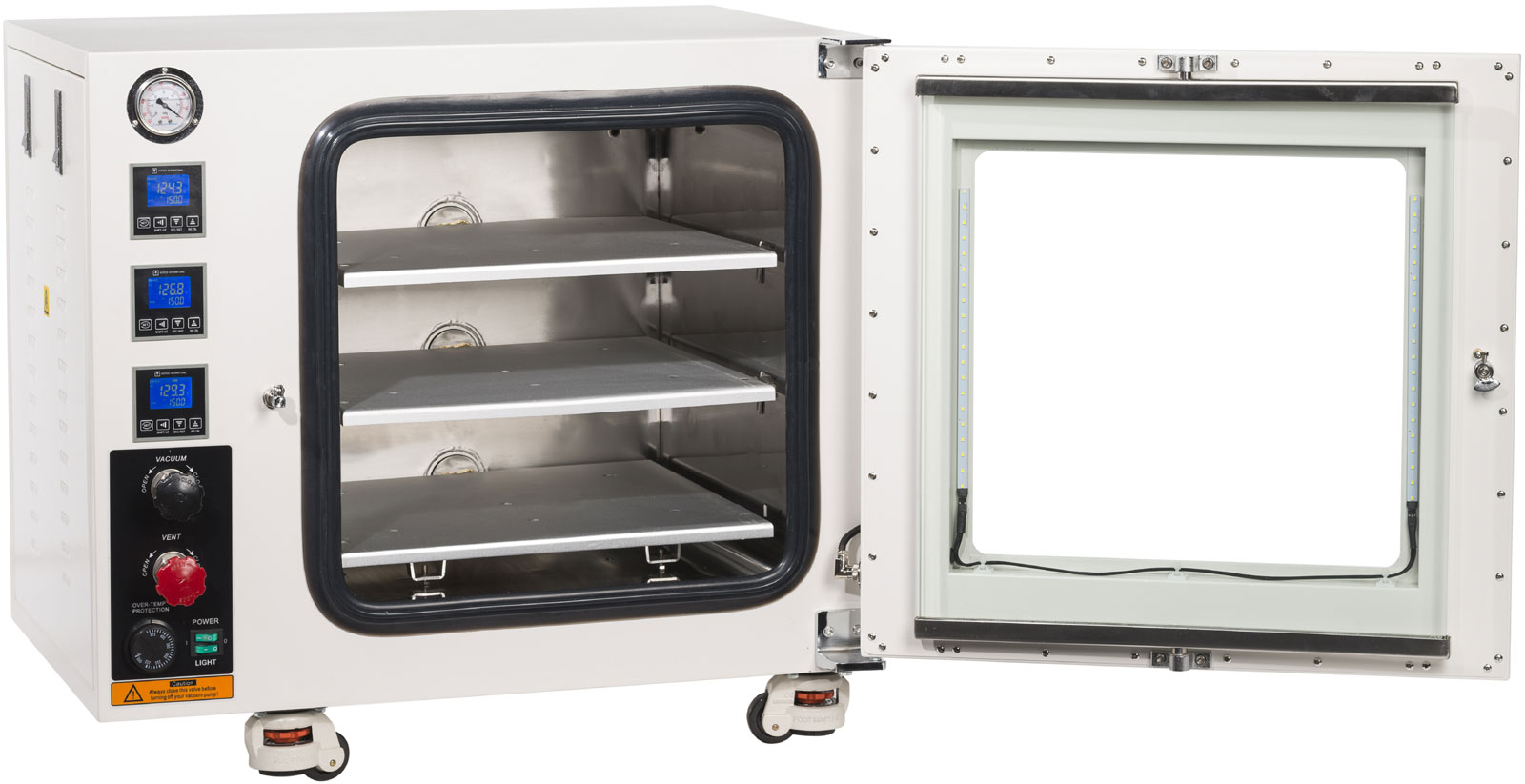

 Shelves
 Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25″ (WxD) each Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25″ (WxDxH) Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2 Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2 Distance between shelves (without stackable shelves): 4.75 inches Distance between shelves (with 3 stackable shelves): 2.25 inches Max. load capacity per shelf: 20 Lbs

 Door gasket material
 Silicone or Viton

 Observation window
 1/2″ tempered safety glass

 Safety
 Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial

 In-door lights
 White LED

 Warranty
 2 years

 Compliance

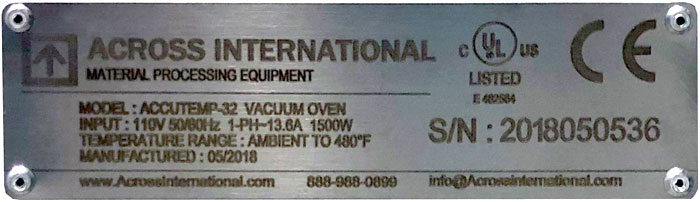

 UL (E482564), CE

 Download
 Product brochure
