250C 26 Shelf Max 16 CF 5 Sided Heating Vacuum Oven 220V ETL


SKU: 4200646 Category: Tag:


 Electrical requirements
 220V /-10% 50/60Hz 1-PH 27.3A, 6,000 watts

 Size: 25.6 x 30 x 35.5″ Material: Stainless steel Capacity: 16 cubic feet

 Layout: 5-sided heating Total wattage: 6,000W Distribution:  left 860W x 2, right 860W x 2, top 400W, bottom 840W, back 330W x 4

 Temperature control

 Controller: low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 250°C (480°F) Display units: Fahrenheit or Celsius Uniformity: ± 7% of setpoint Dwelling timer range: 1 to 9999 minutes Heating speed

Ambient to 100°C: 40 mins
Ambient to 150°C: 1 hour
Ambient to 200°C: 2 hours
Ambient to 250°C: 2.5 hours

 Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude, click here to learn more) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: KF25 flange x 1 Vacuum pump: Sold separately

 Unit: 800 Lbs, shipping: 1200 Lbs

 Dimensions (WxDxH)
 Unit: 44 x 38 x 51.5″ Shipping: 50 x 45 x 60″

 Shelf size: 25 x 30″ (WxDxH) Material: aluminum Style: pan-shape Capacity: 26 shelves max. Comes standard with oven purchase: 13 shelves Total area with 26 shelves: 89 sq ft or 12,857 sq inch Distance between the most adjacent shelves: 1.25 inches

 Door gasket material
 Silicone or Viton

 Observation window
 1/2″ tempered safety glass

 Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial

 In-door lights
 White LED (pre-installed)

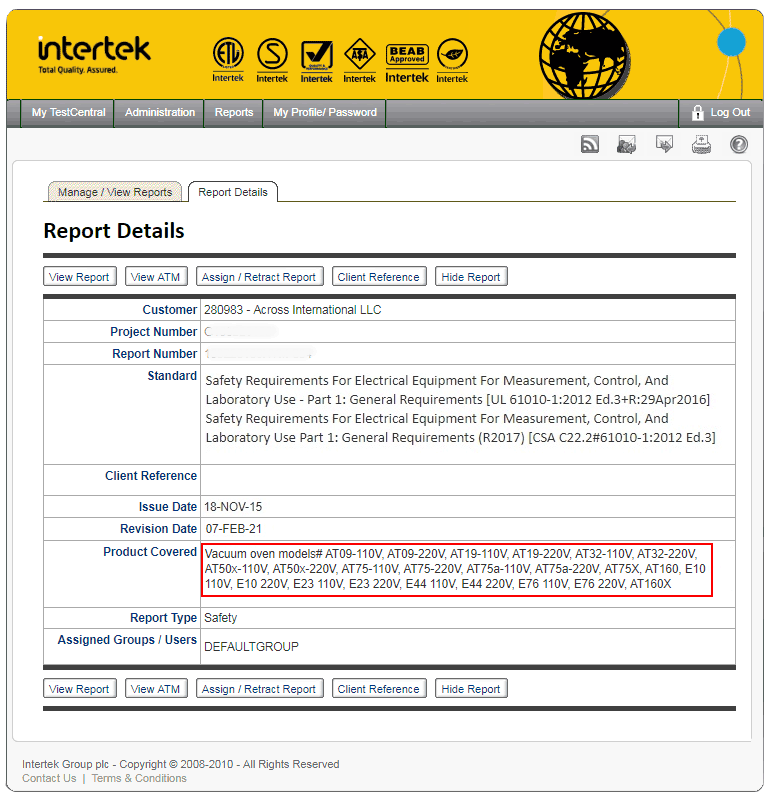

 ETL tested to UL and CSA standards, ETA 3/2021

 2 years
