Ai 100°C 7L Capacity SST Compact Heated Recirculator 220V

1,290.00$

The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

SKU: 4200002 Category:

Description

 Model
 H100-7sst

 Temperature range
 Ambient to 100°C (No load)

 Electrical requirements
 220V 60Hz 1-Phase 2,600 watts

 Heating capacity
 2,500 watts

 Recirculating pump
 Pumping speed: 20 liters per minute, adjustable Maximum head: 16 feet or 5 meters

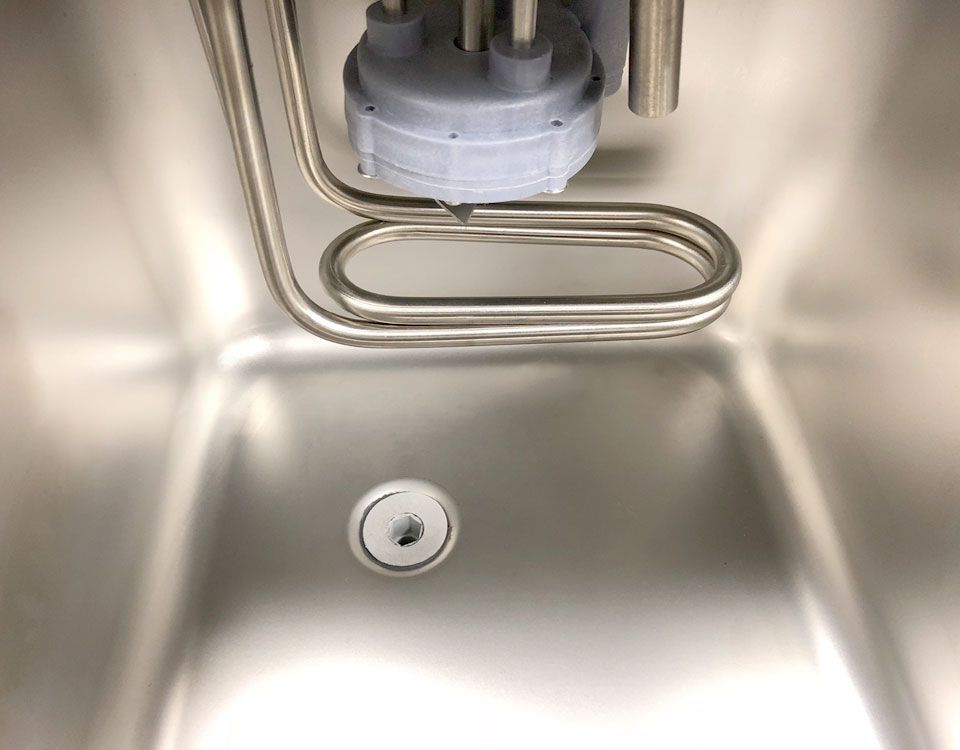

 Reservoir
 Dimensions: 9.5 x 12 x 7.5″ (WxDxH) Material: Type 304 stainless steel Capacity: 7 liters or 1.9 gallons Thermo fluid connection: 3/8″ hose barb x 2 Thermo fluid drain port: 3/8″ hose barb with on/off valve

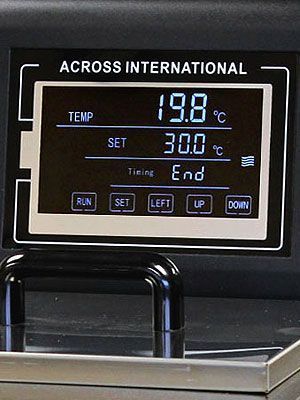

 Temperature controller
 Type: Digital microprocessor PID controlled Display: 7″ touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: /- 2°C Temperature range: Ambient to 100°C

 Working environment

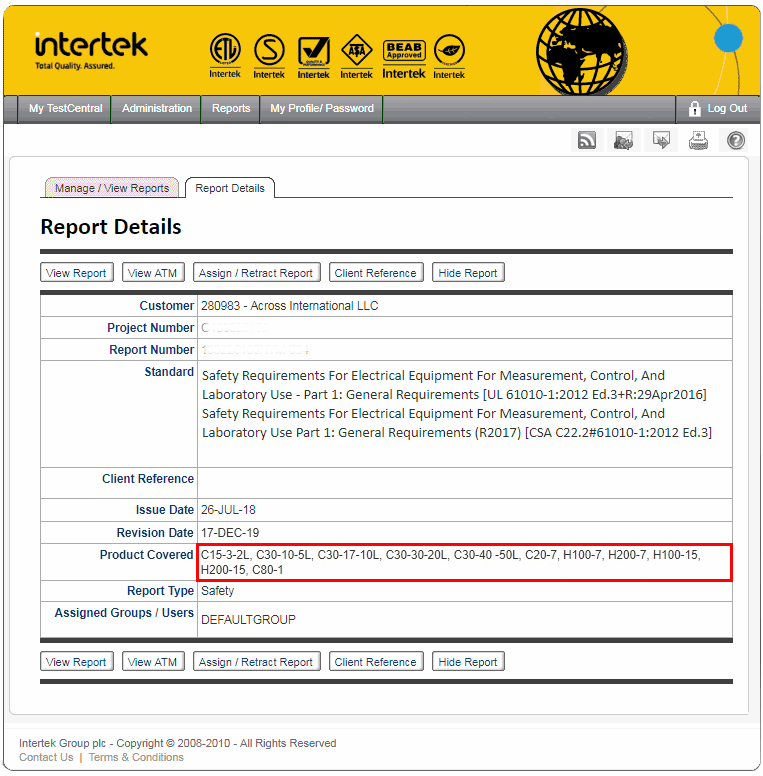

 -15°C/5°F to 25°C/77°F, at <66% humidity  Built-in swivel casters  No  Unit/shipping dimensions   12 x 17 x 18" / 17 x 20 x 22" (WxDxH)  Unit/shipping weight  30 Lbs / 36 Lbs  Safety  Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection  Warranty  One year  Compliance  UL 61010-1 :2012 Ed.3 R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3
