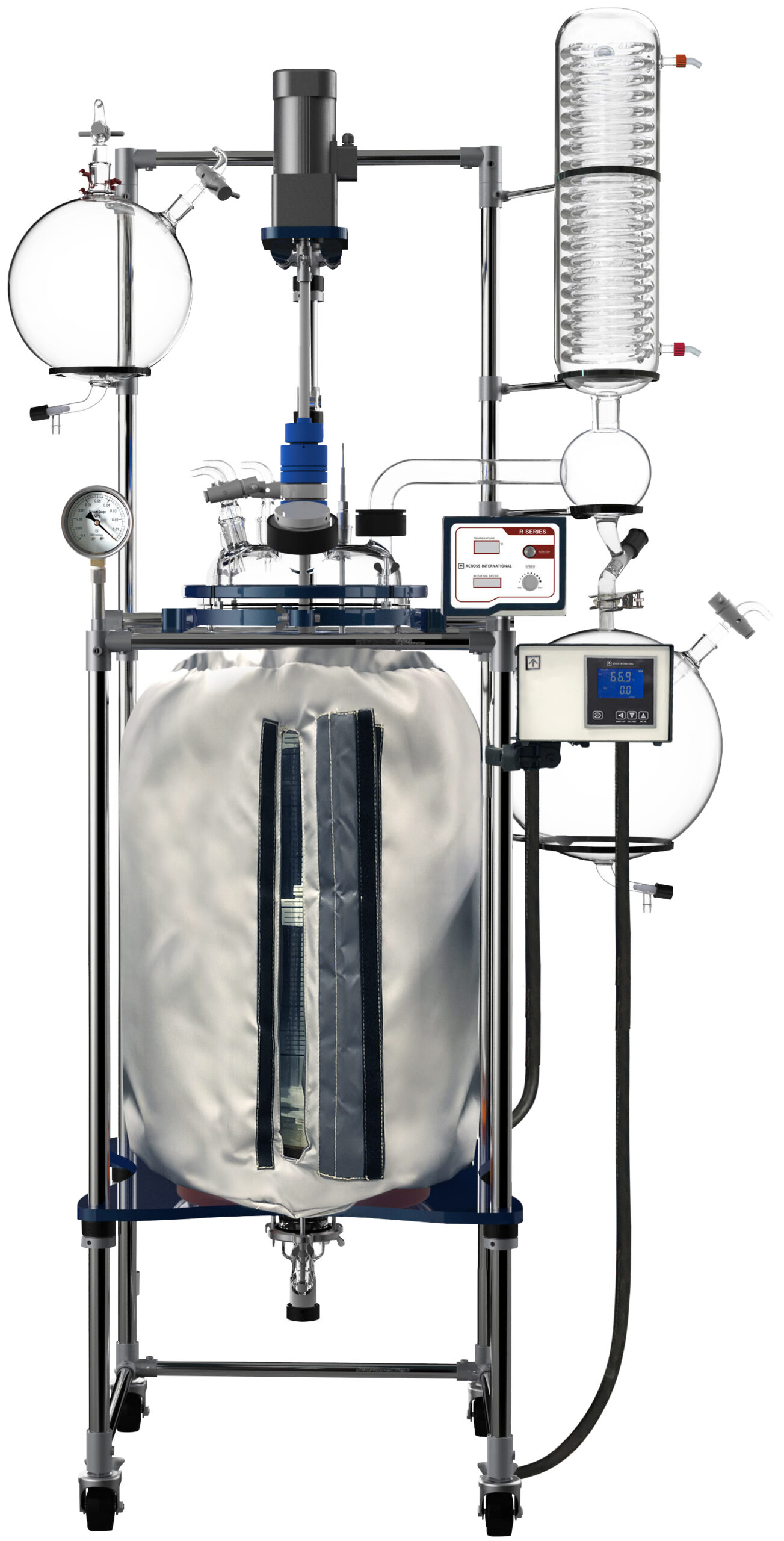

Ai 100L Non-Jacketed Glass Reactor with 200°C Heating Jacket

15,990.00$

Ai R100 series jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

SKU: 4200885 Category: Tag:

Description

 Model
 R10
 R20
 R50
 R100

 Electrical requirements
110V 60Hz or 220V 50/60Hz, 1-Phase

 Power
 90W
 140W
 250W

 Reaction glass vessel capacity
 2.6 gallons (10L)
 5.3 gallons (20L)
 13 gallons (50L)
 26 gallons (100L)

 Glass material
High borosilicate glass 3.3

 Rotation controller
Digital controller with variable frequency driveRotation speed: 50 to 500 rpm

 Maximum jacket pressure
4.4 psi or 0.03 MPa

 Drain valve
Flush seal design with large opening and flat flange clamp

 Agitator
 Style: impeller Material: 304 stainless steel with PTFE liner

 Funnel
Pressure equalizing

 Vacuum gauge
Mechanical

 Swivel caster
Four

 Glass vessel temperature range
 -110°F to 400°F

 Vacuum level
< 700 torrs  Vacuum sealing Glass or PTFE  Drain port ground clearance  15 inches  13 inches  12.5 inches  13.5 inches  Unit dimesions (WxDxH)  18 x 26 x 78"  20 x 27 x 80"  26 x 33 x 85"  28 x 42 x 95"  Shipping dimensions  24 x 67 x 26"  24 x 75 x 31"  25 x 83 x 42"  26 x 88 x 45"  Shipping weight  240 Lbs  262 Lbs  330 Lbs  460 Lbs  Compliance  ETL tested to UL and CSA standards, CE (optional)
