Description
Model

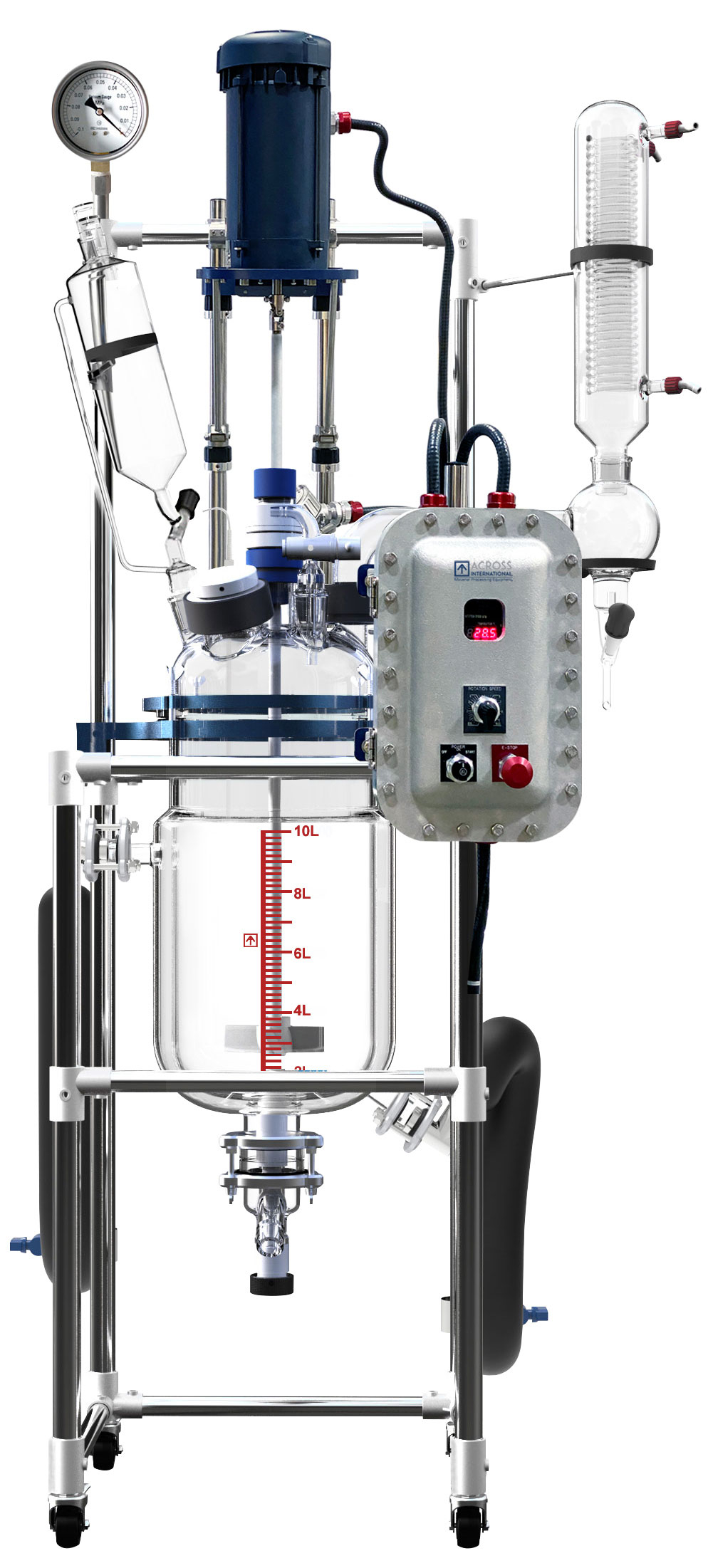

R10ex
Electrical requirements
220V 50/60Hz single phase
Explosion-proof parts (Made in USA)
* Explosion-proof motor: 1/3 HP, 250 watts * Explosion-proof controller and enclosure * Explosion-proof power connection and cable management PSI peer reviewed, for use with Ethanol, Pentane, Hexane, Heptane, Isopropyl Alcohol/Acetone, and Methanol.
Volume

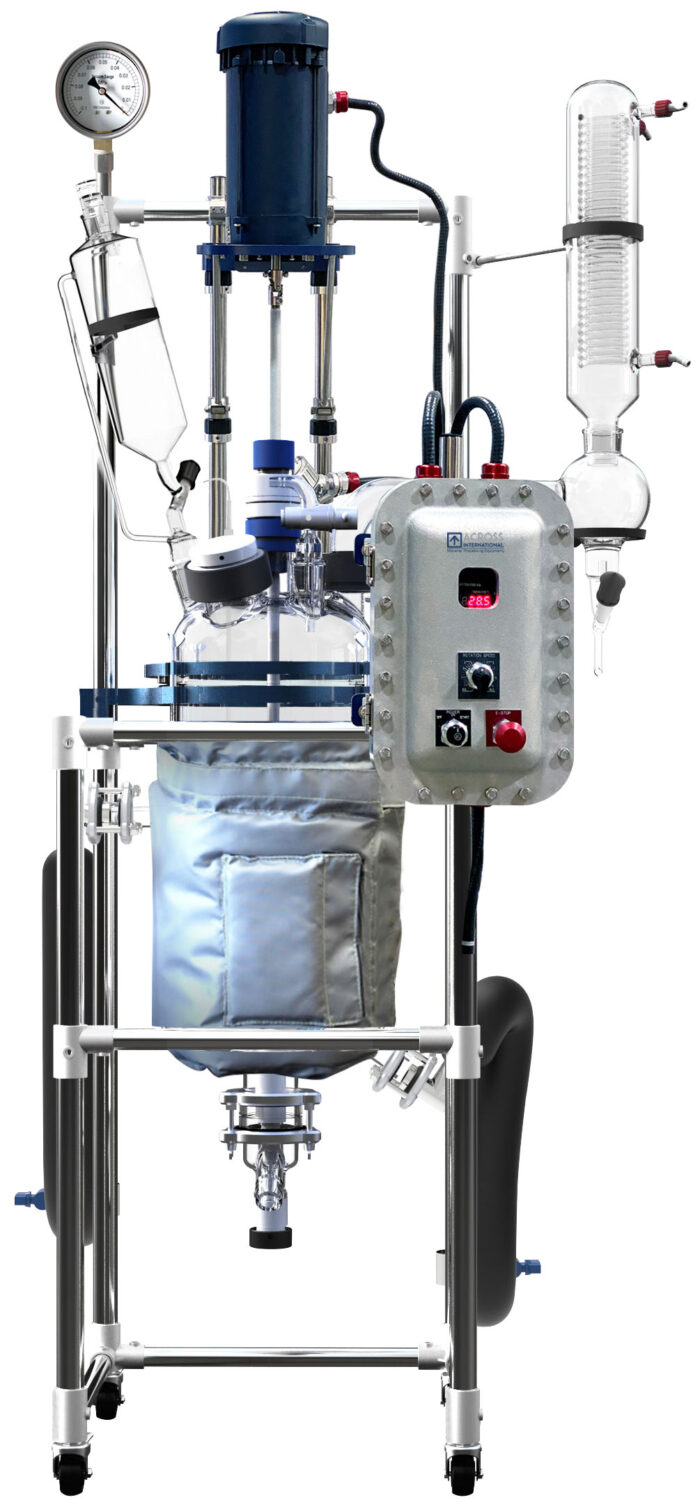

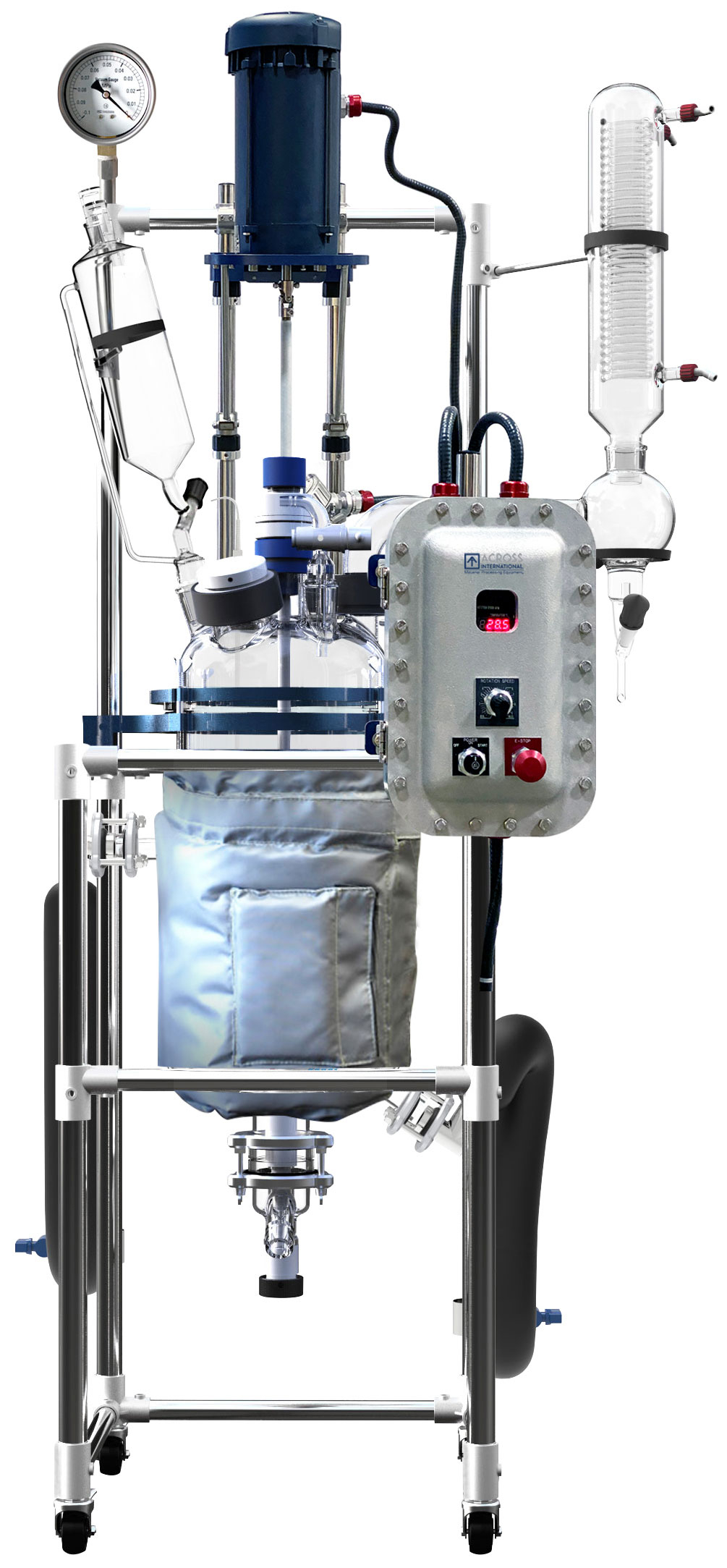

Main vessel: 10 liters (2.6 gallons) Fluid jacket: 3 liters (0.8 gallons)
Material
Vessel, condenser, feeding funnel and receiving flask: borosilicate glass 3.3 Agitator: 304 stainless steel with PTFE coating Sealing gaskets: PTFE
Glass vessel temperature range
-80°C to 200°C (-112°F to 400°F)
Vacuum & pressure
Ultimate vacuum: < 700 Torrs Display: mechanical vacuum gauge Maximum fluid jacket pressure: 4.4 psi or 0.03 MPa
Weight and dimensions
Unit: 18 x 26 x 78" (WxDxH fully setup) Drain port ground clearance: 13" Shipping: 26 x 67 x 26" (WxDxH), 240 lbs
Warranty
One year
