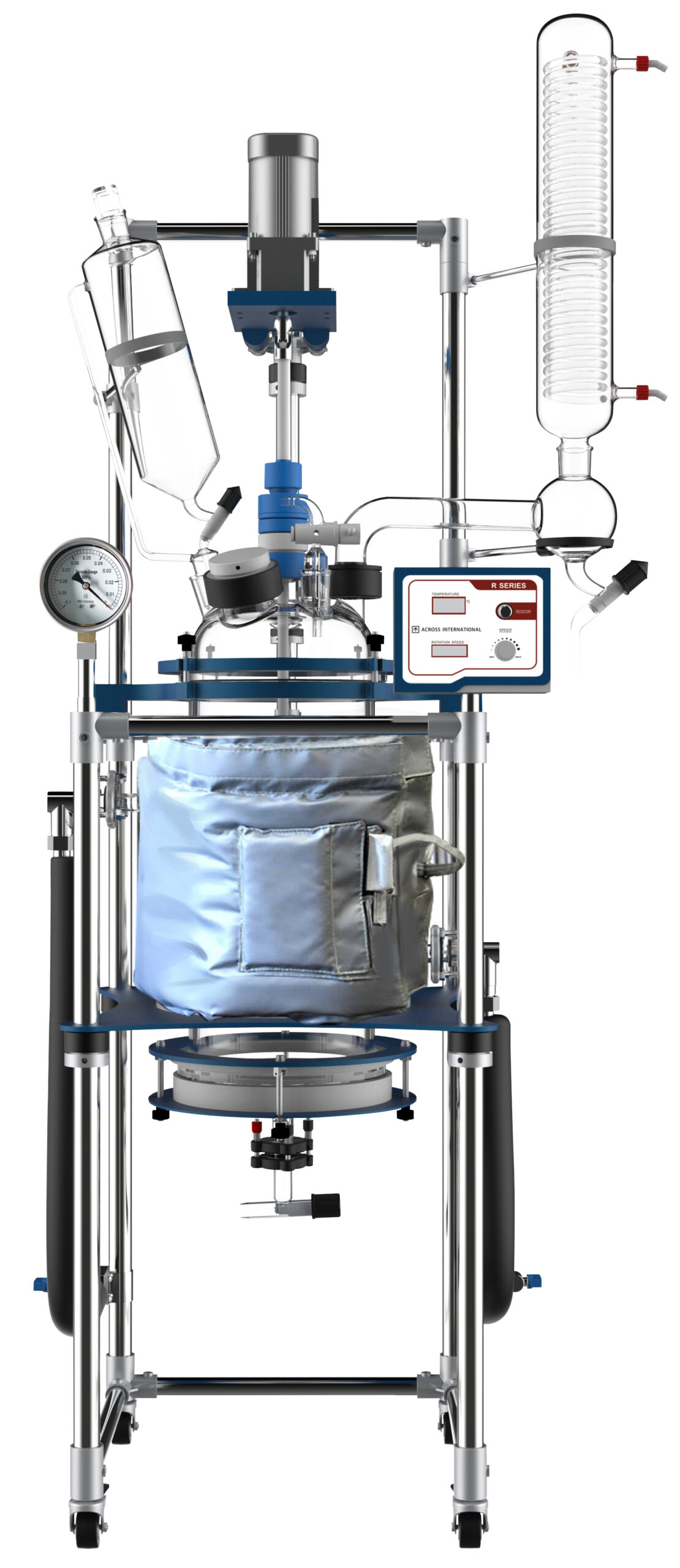

Ai 20L Single or Dual Jacketed Filter Glass Reactor

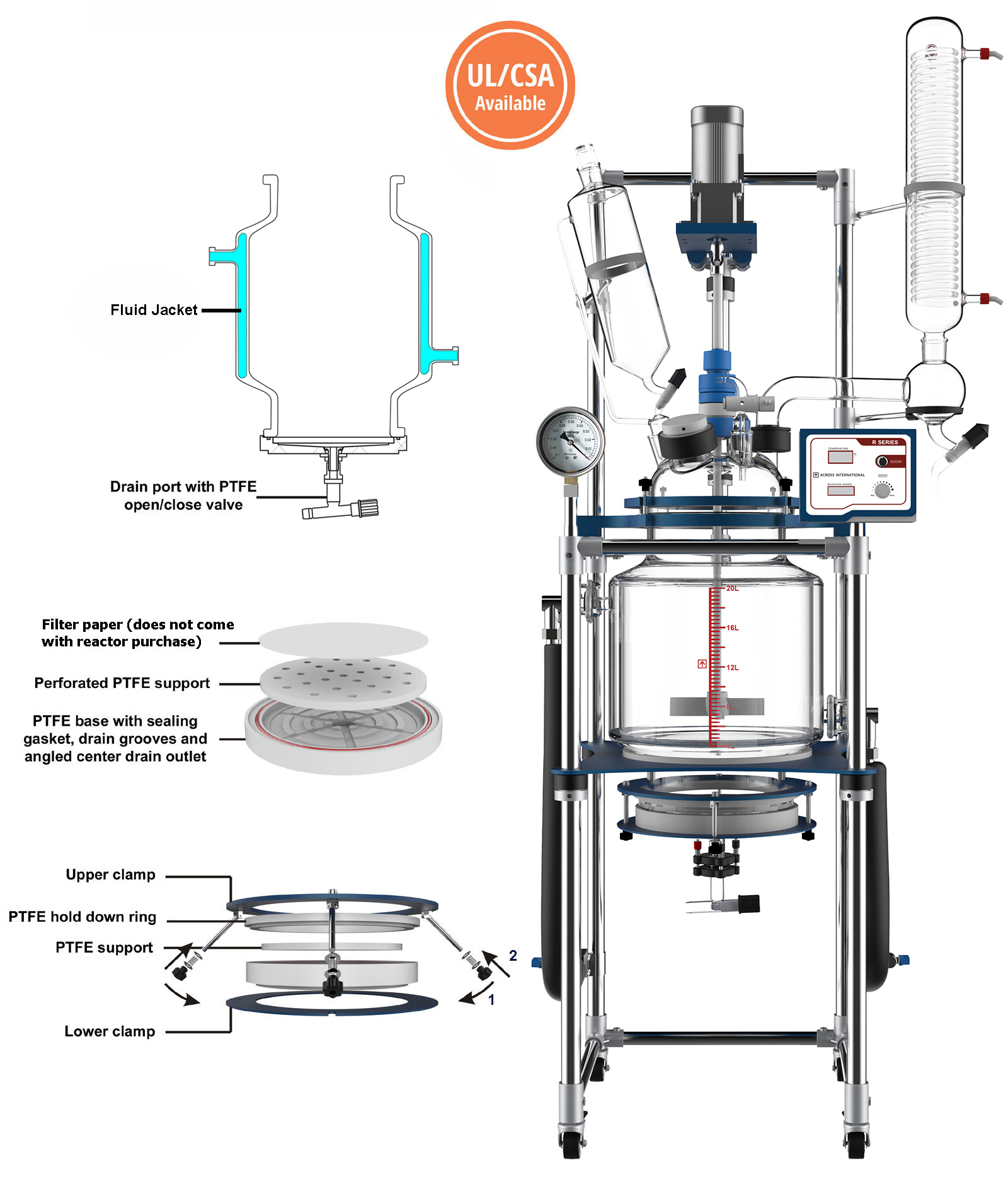

The Ai jacketed filter glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment, jacketed filter reactors  can be used for single or multi-step reactions and filtrations in the same vessel, production and process scale peptide synthesis. Filter base eliminates material transfers and significantly reduces material losses.

SKU: 4200842 Category: Tag:



 Electrical requirements
110V 60Hz or 220V 50/60Hz, 1-Phase


 Reaction glass vessel capacity
 2.6 gallons (10L)
 5.3 gallons (20L)
 13 gallons (50L)
 26 gallons (100L)

 Cooling/heating jacket capacity
 0.8 gallon (3L)
 1.6 gallons (6L)
 4.2 gallons (16L)
 8 gallons (30L)

 Filter plate
OD of filter plate: 9 inchesSize of holes in the perforated PTFE support: 8 mm

 Glass material
High borosilicate glass 3.3

 Rotation controller
Digital controller with variable frequency driveRotation speed: 50 to 500 rpm

 Maximum jacket pressure
4.4 psi or 0.03 MPa

 Drain port
ID of flange: 14 mm

 Style: impeller Material: 304 stainless steel with PTFE liner

Pressure equalizing

 Vacuum gauge

 Glass vessel temperature range
 -110°F to 400°F

 Vacuum level
< 700 torrs  Vacuum sealing Glass and PTFE  Drain port ground clearance  15 inches  13 inches  12.5 inches  13.5 inches  Unit dimensions (WxDxH)  18 x 26 x 78"  20 x 27 x 80"  26 x 33 x 85"  28 x 42 x 95"  Shipping dimensions  24 x 67 x 26"  24 x 75 x 31"  25 x 83 x 42"  26 x 88 x 45"  Shipping weight  240 Lbs  262 Lbs  330 Lbs  390 Lbs  Download  Product brochure  Compliance  ETL tested to UL and CSA standards, CE (optional)
